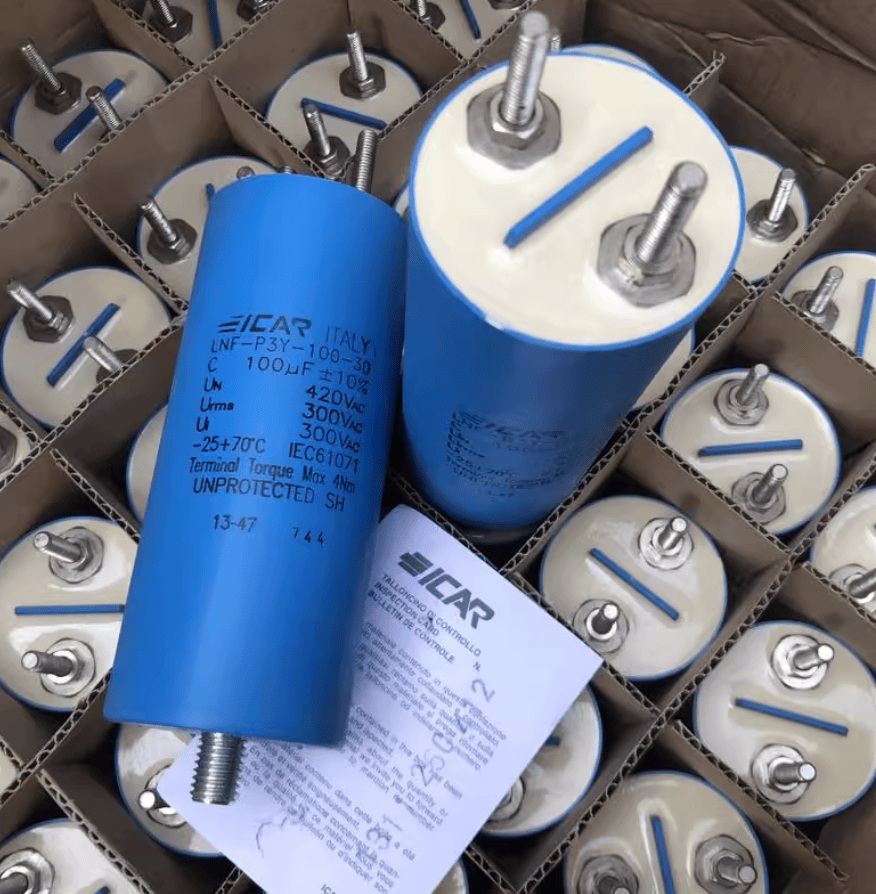

ICAR LNF-P3Y-100-30 Motor Run Capacitor, 100µF ±10%, 420VAC, 60mm D x 140mm H, IEC 61071 - Pack of 4

ICAR LNF-P3Y-100-30 Motor Run Capacitor

The ICAR LNF-P3Y-100-30 is a high-quality motor run capacitor, manufactured in Italy, designed for continuous operation in single-phase and three-phase AC motors. This capacitor ensures stable and efficient motor performance by maintaining the phase shift between voltage and current in the motor windings.

Manufacturer Information:

• Manufacturer: ICAR ITALY
• Product Type: Motor Run Capacitor
• Model Number: LNF-P3Y-100-30
• Capacitance: 100 µF (Microfarad)
• Capacitance Tolerance: ±10%
• Rated Voltage (UN): 420 VAC
• RMS Voltage (Urms): 300 VAC
• Insulation Voltage (Ui): 300 VAC
• Operating Temperature Range: -25°C to +70°C
• Standard: IEC 61071
• Terminal Torque Max: 4 Nm
• Protection Type: UNPROTECTED SH
• Dimensions: 60mm (Diameter) x 140mm (Height)
• Manufacturing Origin: Made in Italy

Product Features:

The ICAR LNF-P3Y-100-30 capacitor is built to meet the rigorous demands of motor starting and continuous running applications. Its robust construction ensures reliable performance and extended operational life. Ideal for use in a variety of electrical appliances and industrial equipment where a permanent phase shift is required for motor operation, such as pumps, fans, compressors, and air conditioning units. The specified operating temperature range and adherence to IEC 61071 standards guarantee suitability for diverse environmental conditions.
