HONGFA HFGA1/A-2H-U24 Safety Relay Module Standard Rail Installation

• Brand: HONGFA
• Application: Monitoring of Emergency Stop Devices (E-Stop) and Safety Gates
• Safety Function: Suitable for applications requiring one safety relay per function.
• Input Configuration: Supports Single-Channel or Dual-Channel wiring.
• Rated Input Voltage: 24V AC/DC
• Reset Function: Configurable for Manual Start or Automatic Start.
• Safety Outputs: 2 x Normally Open (N/O) contacts.
• Terminals: Available with Pluggable Screw Terminals or Pluggable Spring-Cage Terminals (specify option when ordering).

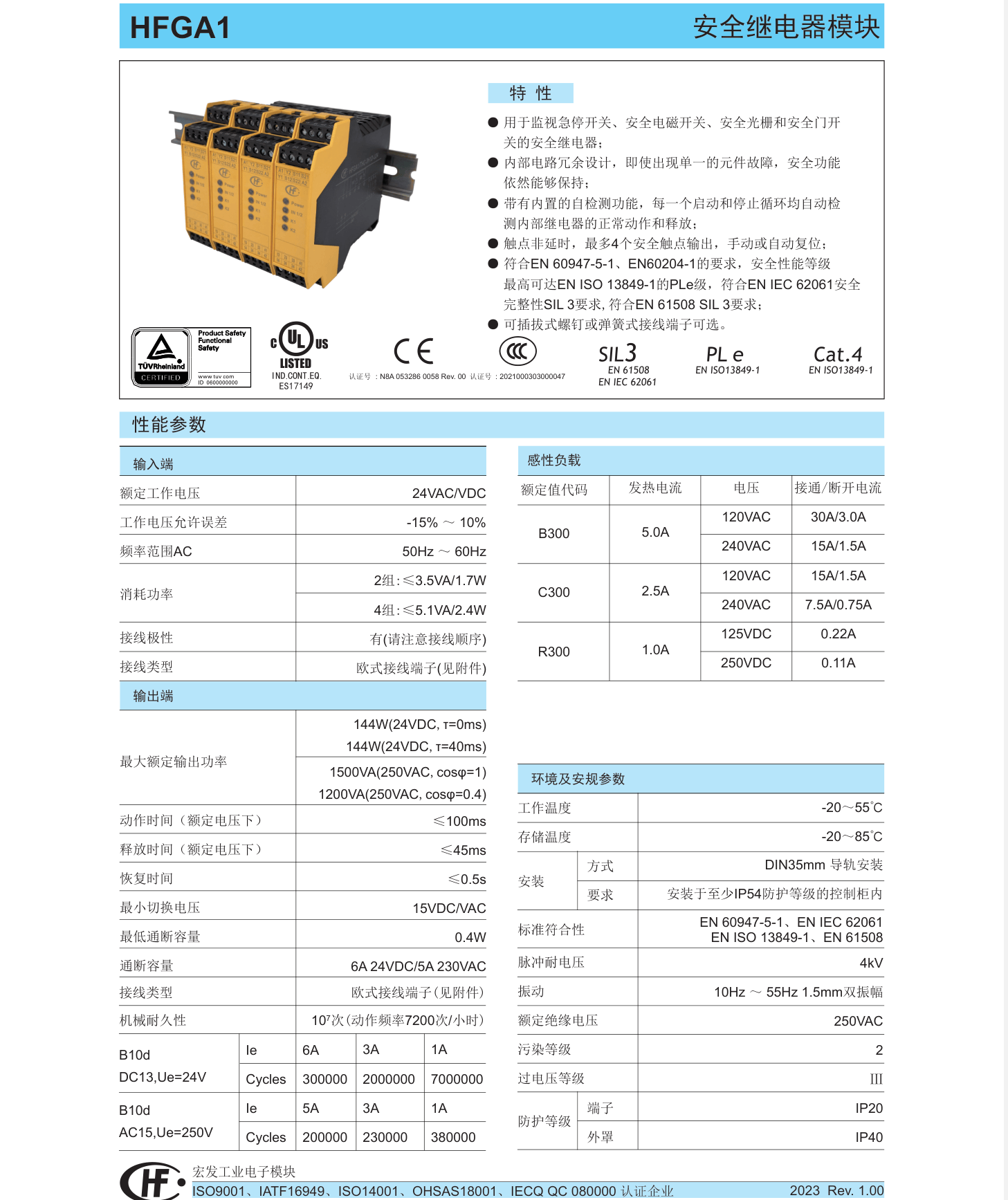

Technical Data:

• Product Code: HFGA1/A-2H-U24
• Voltage Rating: 24V AC/DC
• Inputs: 1 or 2 Channels
• Outputs: 2 N/O
