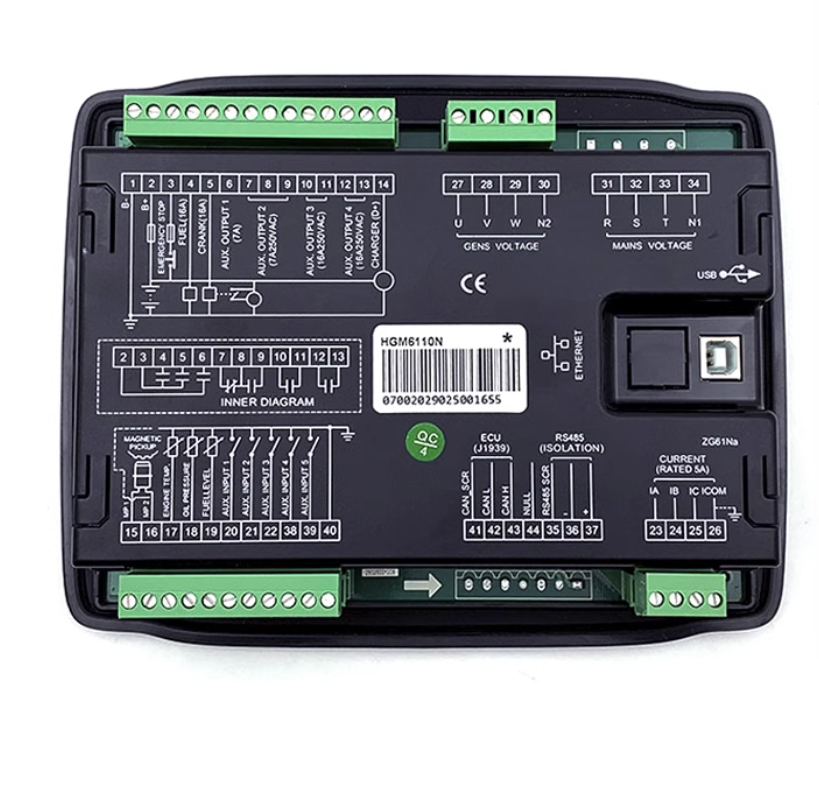

HGM6110N Original Zongzhi controller diesel generator set parts complete electronic control module
HGM6110N Original Zongzhi controller diesel generator set parts complete electronic control module
Regular price
$300.00 USD
Regular price
Sale price
$300.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Stripe & PayPal
| Feature | Specification |
|---|---|
| Speed Sensor Voltage | 1.0V to 24V (RMS) |
| Speed Sensor Frequency | Max 10000Hz |
| Relay Output | Programmable Relay Output Port 2: 7A |
| Programmable Relay Output Port 3: 16A | |
| Programmable Relay Output Port 4: 16A | |
| Outline Dimension | 20916645(mm) |
| Panel Cutout Size | 186*141(mm) |
| Current Transformer Secondary Current | Rated: 5A |
| Operating Temperature | (-25~+70)°C |
| Operating Humidity | (20~90)% |
| Operating Relative Humidity | (20~93)%RH |
| Storage Temperature | (-30~+80)°C |
| Ingress Protection | IP65 (When a waterproof rubber ring is installed between the controller and panel) |
| Weight | 0.56kg |
