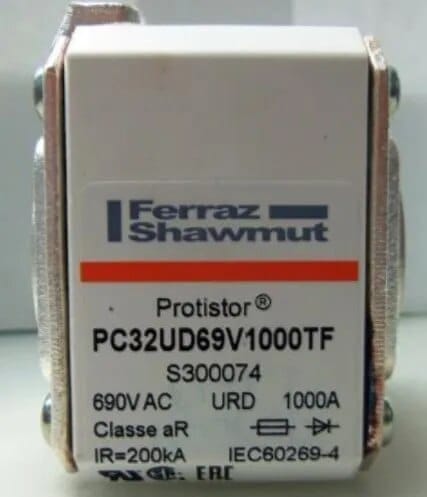

Mersen S300074 (PC32UD69V1000TF) Protistor Fuse, 1000A 690V AC, Size 32 aR, High-Speed Square Body with Striker

The Mersen Protistor® S300074 (PC32UD69V1000TF) is a high-speed, square body fuse-link engineered specifically for the state-of-the-art protection of power semiconductor devices, including diodes, thyristors, and IGBTs. This ultra-fast acting (aR) fuse provides maximum flexibility in equipment design and superior protection for modern power conversion systems.

Constructed with die-cut elements embedded in solidified sand, the fuse offers precise control over arcing characteristics, resulting in lower I²t values and high interrupting ratings. All contact surfaces are silver-plated to ensure optimal conductivity, and the non-magnetic hardware prevents interference. This model features flush-end metric threads for secure mounting and includes a built-in striker for remote signaling via an optional microswitch.

Technical Specifications

• Manufacturer: Mersen
• Catalog Number: PC32UD69V1000TF (Item S300074)
• Amperage Rating: 1000A
• Voltage Rating: 690V AC (IEC) / 700V AC (UL)
• Interrupting Rating (AC): 200kA
• Speed/Characteristic: aR (Ultra-Fast Acting)
• Body Size: 32
• Mounting Type: Flush Ends (Metric Threads)
• Indication: Visual Striker (Suitable for Microswitch)
• Total Clearing I²t: 1,380 kA²s
• Power Dissipation: 115W
• Material: Ceramic Body / Silver-Plated Brass Terminals
• Standards: IEC 60269-4, UL recognized
• Dimensions: 59mm (W) x 65mm (H) x 50.6mm (L)
