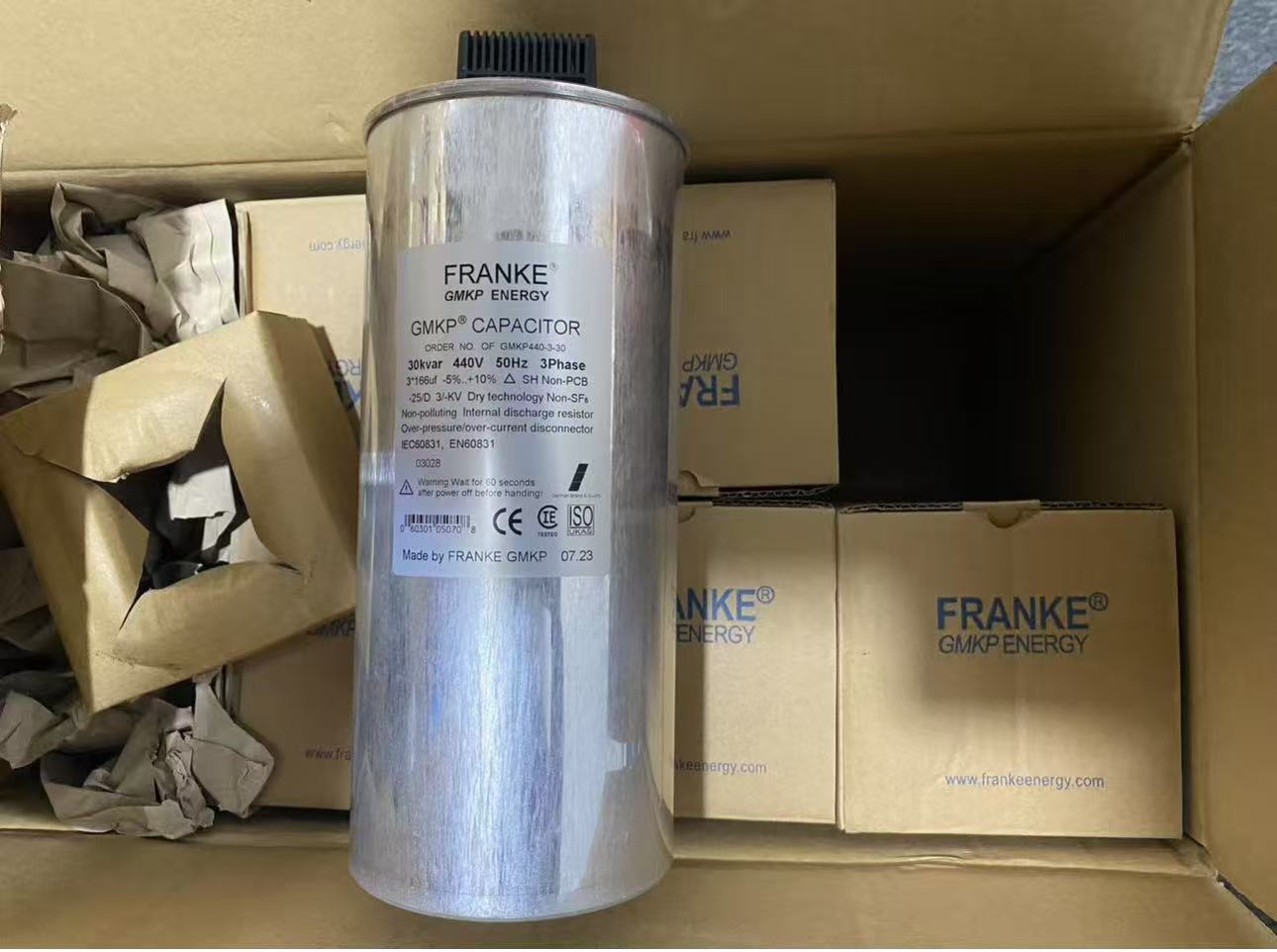

FRANKE GMKP Capacitor, 30kVAR 440V 50Hz 3-Phase – Pack of 4

Product Name: Franke GMKP® Series Dry-Type Power Capacitor

Manufacturer
Franke GMKP Energy

Electrical Specifications
Rated Reactive Power: 30 kVAr
Rated Voltage: 440 V AC (line-to-line)
Rated Frequency: 50 Hz
Connection: Δ (Delta)
Capacitance per Phase: 16 µF
Capacitance Tolerance: –5 % / +10 %
Rated Overvoltage (1 minute): 480 V AC
Discharge Time: < 60 seconds to < 50 V

Standards & Compliance
• IEC 60831-1/2
• EN 60831-1/2
• CE, IE, ISO certified

Mechanical Data
Housing Material: Aluminum
Protection Class: IP20 (terminals)
Operating Temperature: –25 °C to +55 °C
Installation: Indoor, vertical

Ordering Information
Order No.: GMKP440-3-30
Manufacture Date: 07/2023

Safety Warning
