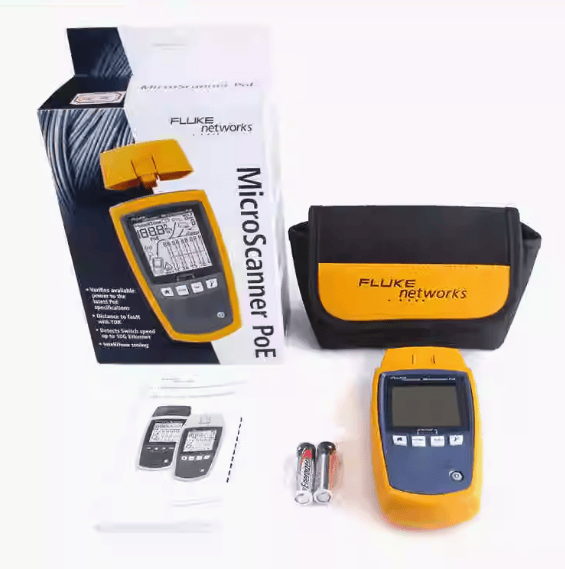

Fluke MS-POE Networks MicroScanner Cable / PoE Tester

Fluke Networks MicroScanner™ PoE Cable Verifier

The Fluke Networks MicroScanner™ PoE is a revolutionary cable verifier that tests and troubleshoots Power over Ethernet (PoE) quickly and easily. It identifies available PoE class, voltage, current and power. It also tests all common media types, including RJ11, RJ45, and coax.

Key Features:

• Tests all common media types: RJ11, RJ45, Coax.
• Detects available PoE: Quickly verifies PoE service and available power.
• Displays cable length, wiremap, cable ID, and distance to fault: All in one screen.
• Supports all PoE standards: Identifies IEEE 802.3af, 802.3at, 802.3bt and UPOE.
• Tests voltage drop under load: Verifies that the installed cable can support the required PoE power.
• Complete PoE Installation and Troubleshooting: Eliminates guesswork when installing, maintaining, and troubleshooting PoE devices.
• Graphical wiremap: Displays pin-to-pin wiring connections.
• Built-in IntelliTone™ toning: Locates cables quickly and easily.
• Rugged design: Withstands harsh environments.

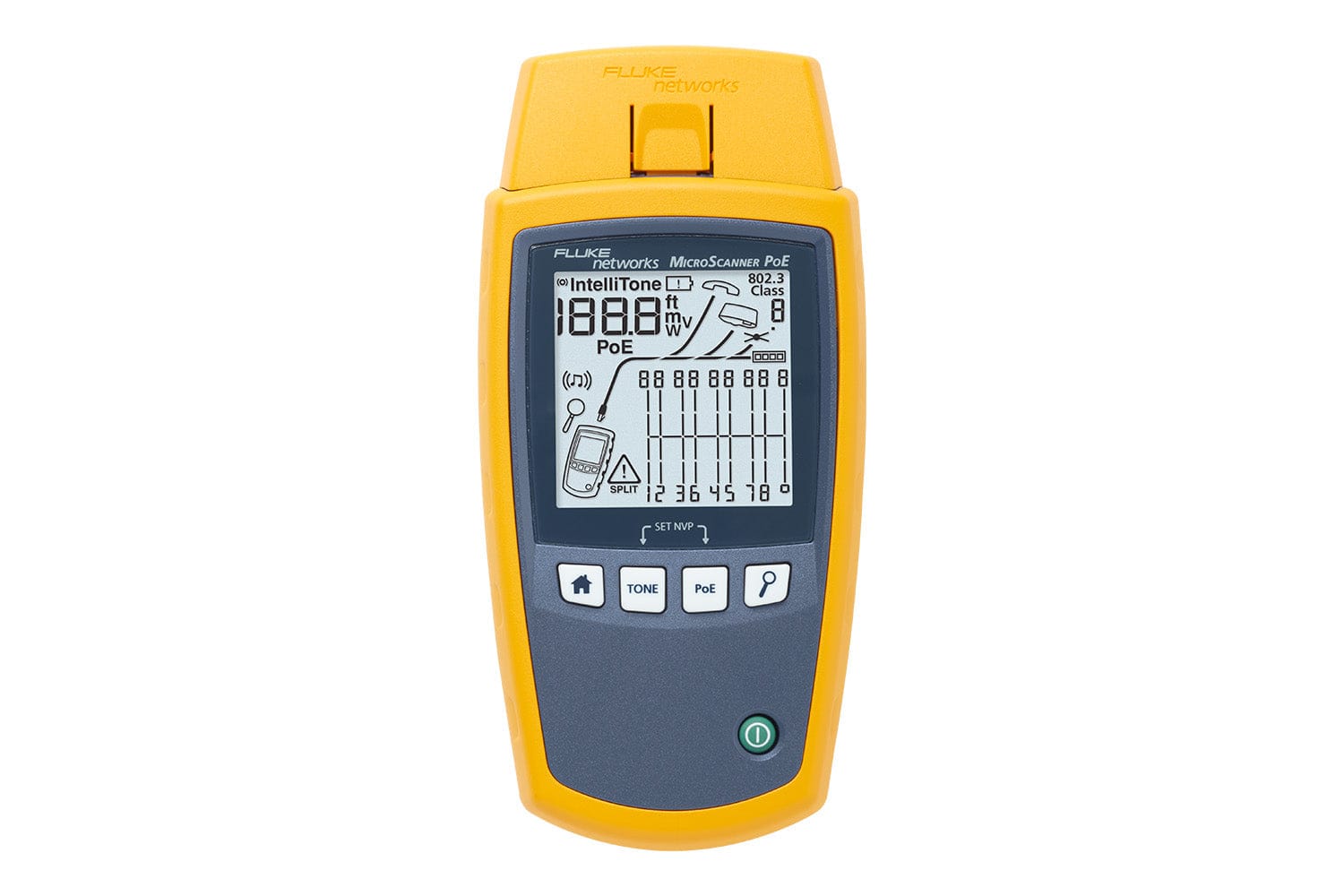

• Large, backlit LCD screen: For clear visibility in any lighting conditions.

Specifications:

• Cable Types Tested: Twisted pair, coax, and telephone cables
• Connector Types: RJ45, RJ11, Coax
• PoE Standards Supported: IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (PoE++), UPOE
• PoE Information Displayed: Available PoE class (0-8), Voltage, Current, Power
• Cable Length Measurement: Up to 1500 feet (457 meters)
• Wiremap: Graphical display of wiring configuration
• Tone Generator: IntelliTone™ digital toning
• Display: Backlit LCD
• Battery Type: (2) AA batteries
• Operating Temperature: 32 °F to 113 °F (0 °C to 45 °C)
• Storage Temperature: -4 °F to 140 °F (-20 °C to 60 °C)

Applications:

• Verifying PoE service availability
• Troubleshooting PoE devices
• Testing network cabling
• Identifying wiring faults
• Locating cables
• Documenting cable installations

Benefits:

• Saves time and money by quickly identifying PoE issues.
• Ensures proper PoE installation and performance.
• Simplifies cable troubleshooting.
• Reduces downtime.
• Improves network reliability.
