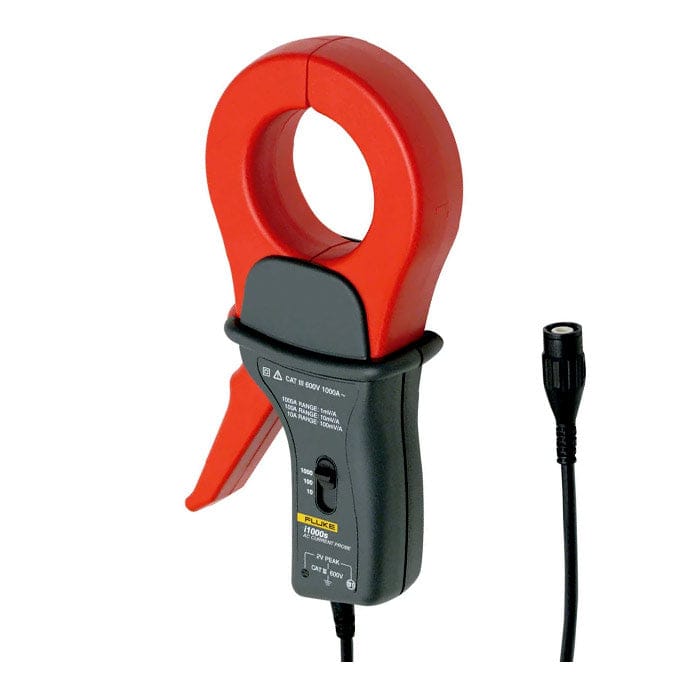

Fluke i1000s AC Current Probe

Fluke i1000s AC Current Probe

The Fluke i1000s is a high-performance AC current probe designed to extend the current measurement capabilities of multimeters, oscilloscopes, and other measurement tools. It's ideal for measuring currents in industrial, electrical, and electronic applications.

Key Features:

• High Accuracy: Provides accurate current measurements.
• Wide Measurement Range: Measures AC current from 1 A to 1000 A.
• BNC Output: Allows direct connection to oscilloscopes and other BNC-compatible instruments.
• Safety Rated: CAT III 600 V safety rating for safe measurements in energized environments.
• Ergonomic Design: Comfortable and easy to use.
• Non-Contact Measurement: Measures current without breaking the circuit.

Specifications:

• Current Range: 1 A to 1000 A AC
• Output Signal: 1 mV/A
• Accuracy: 2% + 0.5 A (45 Hz to 65 Hz)
• Frequency Range: 5 Hz to 100 kHz
• Maximum Conductor Diameter: 54 mm
• Safety Category: CAT III 600 V

Applications:

• Power supply testing
• Harmonic measurement
• Industrial maintenance
• Electrical troubleshooting
• Monitoring current in electrical panels and equipment
