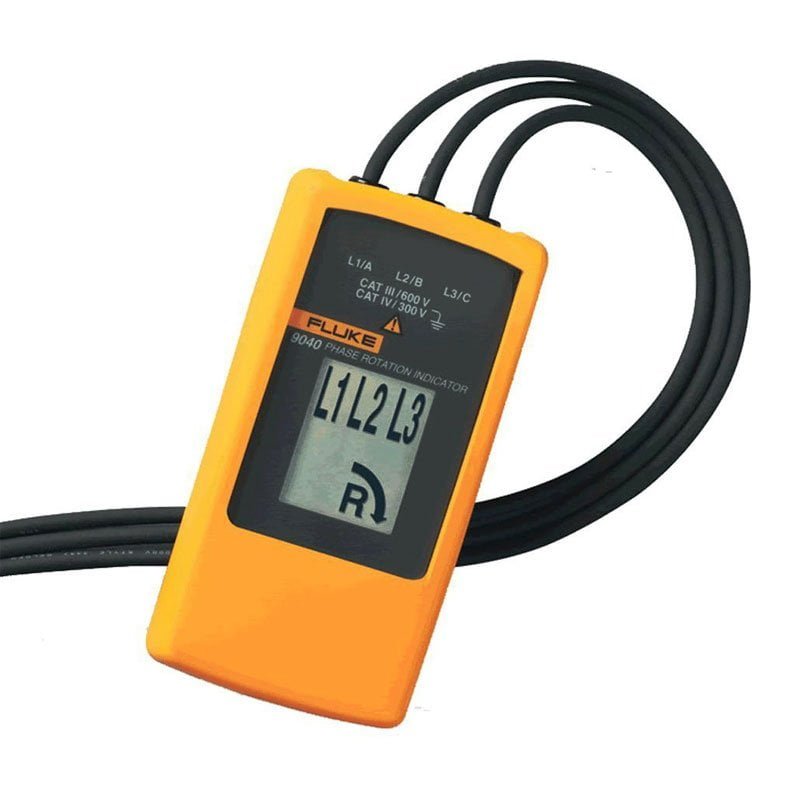

Fluke 9040 Phase Rotation Indicator

Fluke 9040 Phase Rotation Indicator

The Fluke 9040 is a phase rotation indicator designed for commercial and industrial applications. It allows you to quickly and easily determine the phase rotation in three-phase systems, ensuring correct motor rotation and preventing equipment damage.

Key Features:

• Three-Phase Indication: Clearly indicates phase rotation (clockwise or counter-clockwise).
• Voltage Range: Suitable for a wide voltage range (40 V to 600 V).
• Frequency Range: Designed for 2 Hz to 400 Hz systems.
• No Battery Required: Powered directly from the circuit under test.
• Safe and Rugged: Designed for safe and reliable operation in industrial environments.
• Clear LCD Display: Provides easy-to-read phase rotation indication.
• Included Test Leads: Comes with test leads and alligator clips for easy connection.

Specifications:

• Voltage Range: 40 V to 600 V AC (Phase to Phase)
• Frequency Range: 2 Hz to 400 Hz
• Operating Time: Continuous
• Safety: IEC 61010-1, IEC 61557-7
• Operating Temperature: 0 °C to 40 °C
• Dimensions: 124 mm x 61 mm x 27 mm

Applications:

• Verifying phase rotation in three-phase systems
• Ensuring correct motor rotation
• Identifying incorrect wiring in electrical panels
• Commercial and industrial electrical maintenance
• Preventing equipment damage due to incorrect phase rotation
