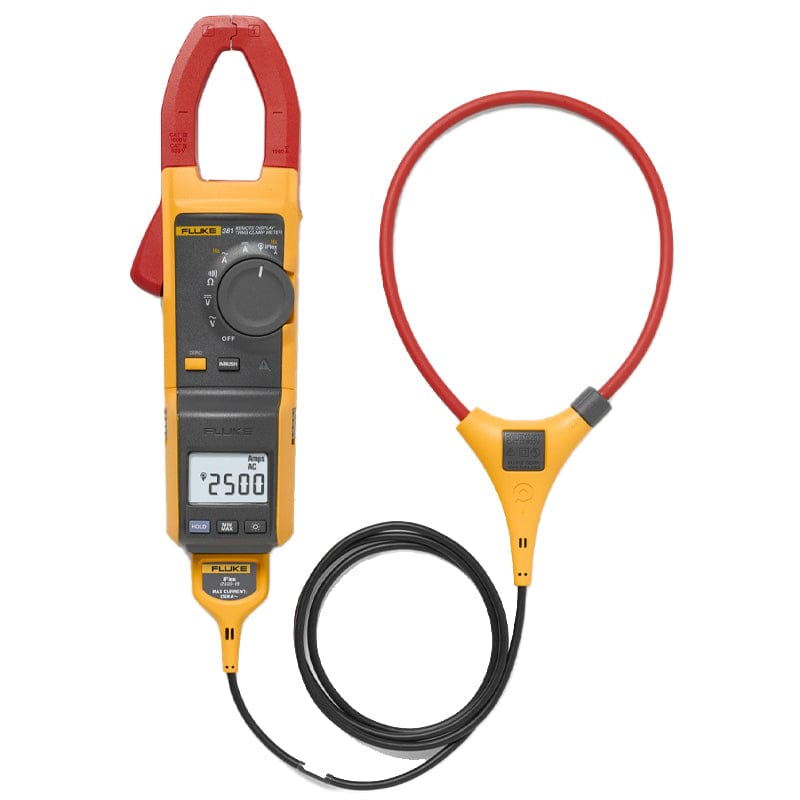

Fluke 381 Remote Display True RMS AC/DC Clamp Meter with iFlex

Fluke 381 Remote Display True-RMS AC/DC Clamp Meter

The Fluke 381 is a clamp meter with a remote magnetic display, offering both safety and convenience for electrical measurements. The wireless display allows you to position the meter for optimal viewing while taking measurements in hard-to-reach or hazardous locations.

Key Features:

• Remote Wireless Display: Removable display can be positioned up to 30 feet (10 meters) away for flexible viewing.
• True-RMS AC/DC Voltage and Current: Provides accurate measurements on non-linear signals.
• 1000 A AC/DC Current Measurement: Measures up to 1000 A AC/DC.
• 600 V AC/DC Voltage Measurement: Measures up to 600 V AC/DC.
• Resistance Measurement: Measures resistance up to 60 kΩ.
• Continuity: Captures intermittent as short as 250 μs.
• Frequency Measurement: Measures frequency up to 500 Hz.
• Min/Max/Avg Recording: Captures minimum, maximum, and average readings.
• Inrush Current Measurement: Captures starting current of motors and other loads.
• Backlit Display: Provides clear visibility in low-light conditions.
• CAT IV 600 V, CAT III 1000 V: Safety rated for high-energy environments.

Specifications:

• AC Current: 0 to 999.9 A
• DC Current: 0 to 999.9 A
• AC Voltage: 0 to 600.0 V
• DC Voltage: 0 to 600.0 V
• Resistance: 0.1 Ω to 6000 Ω
• Frequency: 5.0 Hz to 500.0 Hz
• Jaw Opening: 1.3" (34 mm)
• Safety Category: CAT IV 600 V, CAT III 1000 V

Applications:

• Industrial maintenance
• Electrical troubleshooting
• HVAC repair
• Commercial electrical work
• Motor testing
