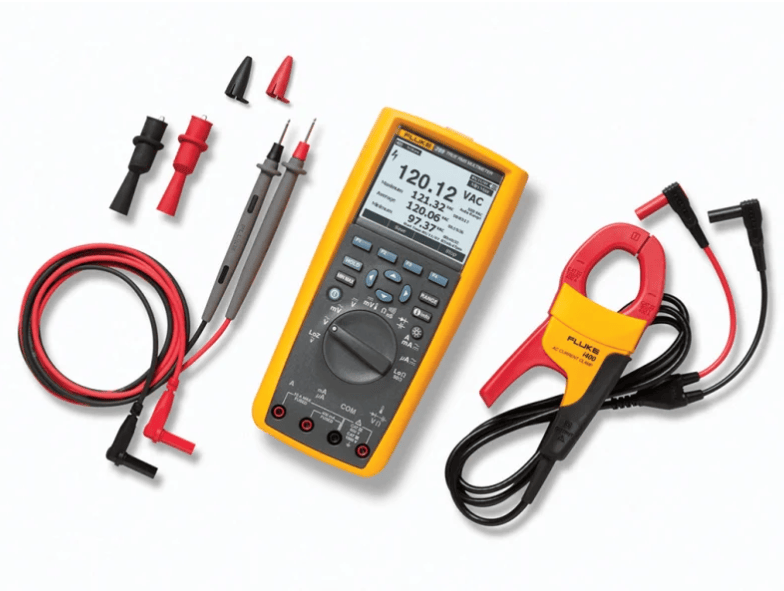

Fluke 289 IMSK Industrial Multimeter Service Kit

Fluke 289 True-RMS Industrial Logging Multimeter

The Fluke 289 is a high-performance, True-RMS industrial logging multimeter designed for demanding applications in electronics, automation, process control, and electromechanical equipment. With its advanced features and accuracy, it enables you to solve problems faster and more efficiently.

Key Features:

• True-RMS AC/DC Voltage and Current: Ensures accurate measurements on complex signals and non-linear loads.
• 50,000 Count Display: High-resolution display provides precise readings.
• Logging Function with TrendCapture: Records data over time to identify trends and intermittent events.
• Large 3.5-inch Color Display: Offers clear visibility with multiple levels of backlight.
• i-info Button: Provides on-screen help for measurement functions, reducing downtime.
• Multiple Languages: User interface available in multiple languages for global use.
• Soft Keys and Scroll Buttons: Easy navigation and access to secondary functions.
• 0.025% Basic DC Accuracy: Provides highly accurate measurements.
• Bandwidth: AC bandwidth specified to 100 kHz.
• Real-Time Clock: Captures the exact time when events occur.
• Min/Max/Avg Recording: Records signal fluctuations.
• Peak Capture: Captures transients as fast as 250 μs.
• Relative Mode: Removes test lead resistance from low ohms measurements.
• LoZ Volts: Low impedance voltage function prevents ghost voltages.
• Low Pass Filter: For accurate voltage and frequency measurements on variable frequency drives.
• Separate Battery Compartment: Allows for easy battery changes without disrupting calibration.
• Amperage Range: Up to 10 A (20 A for 30 seconds)
• Capacitance Range: Up to 100 mF

Specifications:

• DC Voltage: 50.000 mV to 1000.0 V
• AC Voltage: 50.000 mV to 1000.0 V
• DC Current: 500.00 μA to 10.000 A
• AC Current: 500.00 μA to 10.000 A
• Resistance: 500.00 Ω to 500.0 MΩ
• Capacitance: 1.000 nF to 100 mF
• Frequency: 0.01 Hz to 999.99 kHz
• Temperature: -200.0 °C to 1350 °C (-328.0 °F to 2462 °F)
• Safety Category: CAT III 1000 V, CAT IV 600 V
• Display: 320 x 240 Color TFT LCD
• Logging Capacity: Up to 15,000 readings
• Connectivity: Optional Fluke Connect mobile app and FlukeView Forms software for data transfer and analysis.

Applications:

• Industrial maintenance and troubleshooting
• Process control
• Automation
• Electronics repair
• HVAC systems
• Motor drive analysis
• Data logging and analysis
