Fluke 289 IMSK Industrial Multimeter Service Kit

Fluke 289 IMSK Industrial Multimeter Service Kit

The Fluke 289 IMSK (Industrial Multimeter Service Kit) is a comprehensive kit designed for industrial professionals who need advanced troubleshooting capabilities. It includes the Fluke 289 True-RMS Industrial Logging Multimeter and essential accessories for maximizing productivity in the field.

Key Features (Fluke 289 Multimeter):

• True-RMS AC/DC Voltage and Current: Accurate measurements on complex signals.
• 50,000 Count Display: High-resolution display for precise readings.
• Logging Function: Captures and records data for later analysis.
• TrendCapture: Visually plots logged data to identify trends.
• i-info Button: On-screen help for measurement functions.
• LoZ Volts: Low impedance voltage function prevents ghost voltages.
• Low Pass Filter: For accurate voltage and frequency measurements on variable frequency drives.
• Min/Max/Avg Recording: Captures signal variations.
• Peak Capture: Records transients as fast as 250 μs.
• Relative Mode: Removes test lead resistance from low ohms measurements.
• Large Display: Easy-to-read display with backlight.

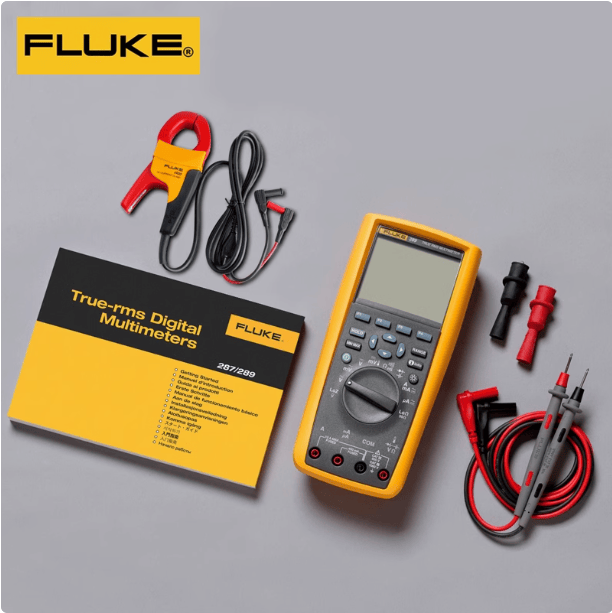

Kit Includes:

• Fluke 289 True-RMS Industrial Logging Multimeter
• Fluke TL175 TwistGuard™ Test Leads
• Fluke AC175 Alligator Clips
• 80BK-A Integrated DMM Temperature Probe
• i400 AC Current Clamp
• Magnetic Hanging Strap
• Soft Case

Specifications (Fluke 289 Multimeter):

• DC Voltage: 50.000 mV to 1000.0 V
• AC Voltage: 50.000 mV to 1000.0 V
• DC Current: 500.00 μA to 10.000 A
• AC Current: 500.00 μA to 10.000 A
• Resistance: 500.00 Ω to 500.0 MΩ
• Capacitance: 1.000 nF to 50.00 mF
• Frequency: 0.01 Hz to 999.99 kHz
• Temperature: -200.0 °C to 1350 °C (-328.0 °F to 2462 °F)
• Safety Category: CAT III 1000 V, CAT IV 600 V

Applications:

• Industrial maintenance and troubleshooting
• Process control
• Automation
• Electronics repair
• HVAC systems
• Motor drive analysis
• Data logging and analysis
