Fluke 289/FVF FlukeView® Forms Combo Kit

Fluke 289/FVF True-RMS Industrial Logging Multimeter Kit

The Fluke 289/FVF is a comprehensive kit combining the Fluke 289 True-RMS Industrial Logging Multimeter with FlukeView® Forms Software, providing a powerful solution for advanced industrial troubleshooting and data logging. This kit is ideal for professionals in electronics, automation, process control, and electromechanical equipment who require detailed data analysis and reporting.

Key Features:

• Fluke 289 True-RMS Industrial Logging Multimeter:

  • True-RMS AC/DC Voltage and Current.
  • 50,000 Count Display.
  • Logging Function with TrendCapture.
  • Large 3.5-inch Color Display.
  • i-info Button for on-screen help.
  • Multiple Languages.
  • Soft Keys and Scroll Buttons.
  • 0.025% Basic DC Accuracy.
  • AC Bandwidth: 100 kHz.
  • Real-Time Clock.
  • Min/Max/Avg Recording.
  • Peak Capture (250 μs).
  • Relative Mode.
  • LoZ Volts.
  • Low Pass Filter.
  • Separate Battery Compartment.
  • Amperage Range: Up to 10 A (20 A for 30 seconds).
  • Capacitance Range: Up to 100 mF.

• FlukeView® Forms Software:

  • Document, store, and analyze individual readings or a series of measurements.
  • Overlay logged data from six meters or six time periods to find cause-and-effect relationships.
  • Create professional reports.
  • Analyze trends using statistical analysis.

Specifications (Fluke 289 Multimeter):

• DC Voltage: 50.000 mV to 1000.0 V
• AC Voltage: 50.000 mV to 1000.0 V
• DC Current: 500.00 μA to 10.000 A
• AC Current: 500.00 μA to 10.000 A
• Resistance: 500.00 Ω to 500.0 MΩ
• Capacitance: 1.000 nF to 100 mF
• Frequency: 0.01 Hz to 999.99 kHz
• Temperature: -200.0 °C to 1350 °C (-328.0 °F to 2462 °F)
• Safety Category: CAT III 1000 V, CAT IV 600 V
• Display: 320 x 240 Color TFT LCD
• Logging Capacity: Up to 15,000 readings
• Connectivity: Via included IR3000FC Connector

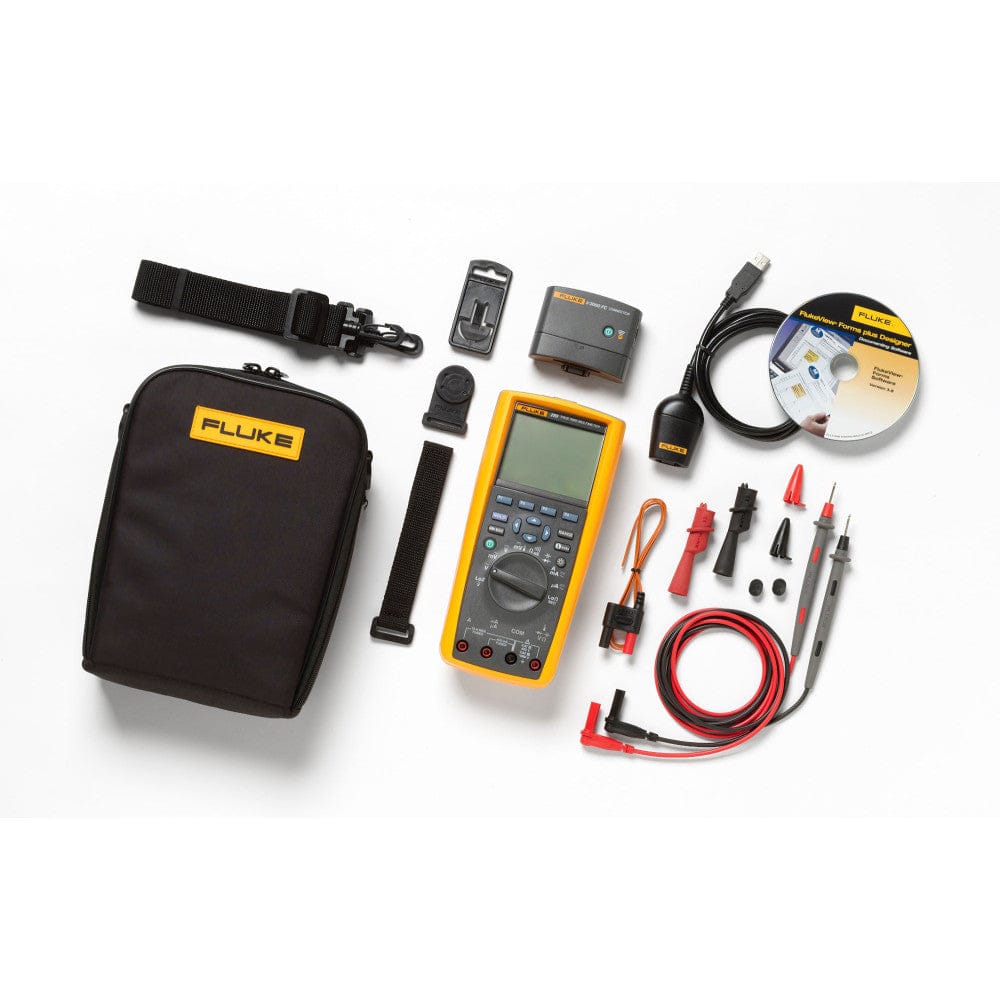

Kit Includes:

• Fluke 289 True-RMS Industrial Logging Multimeter
• FlukeView® Forms Software
• IR3000FC Connector
• TL71 Test Lead Set
• AC72 Alligator Clips
• 80BK-A Thermocouple Probe
• Soft Case

Applications:

• Advanced industrial troubleshooting
• Data logging and analysis
• Performance monitoring
• Process control optimization
• Predictive maintenance
• Creating professional reports

Benefits:

• Comprehensive solution for data logging and analysis.
• Enables in-depth troubleshooting and performance monitoring.
• Facilitates the creation of detailed reports for documentation and analysis.
• Improves efficiency and reduces downtime through proactive maintenance.
