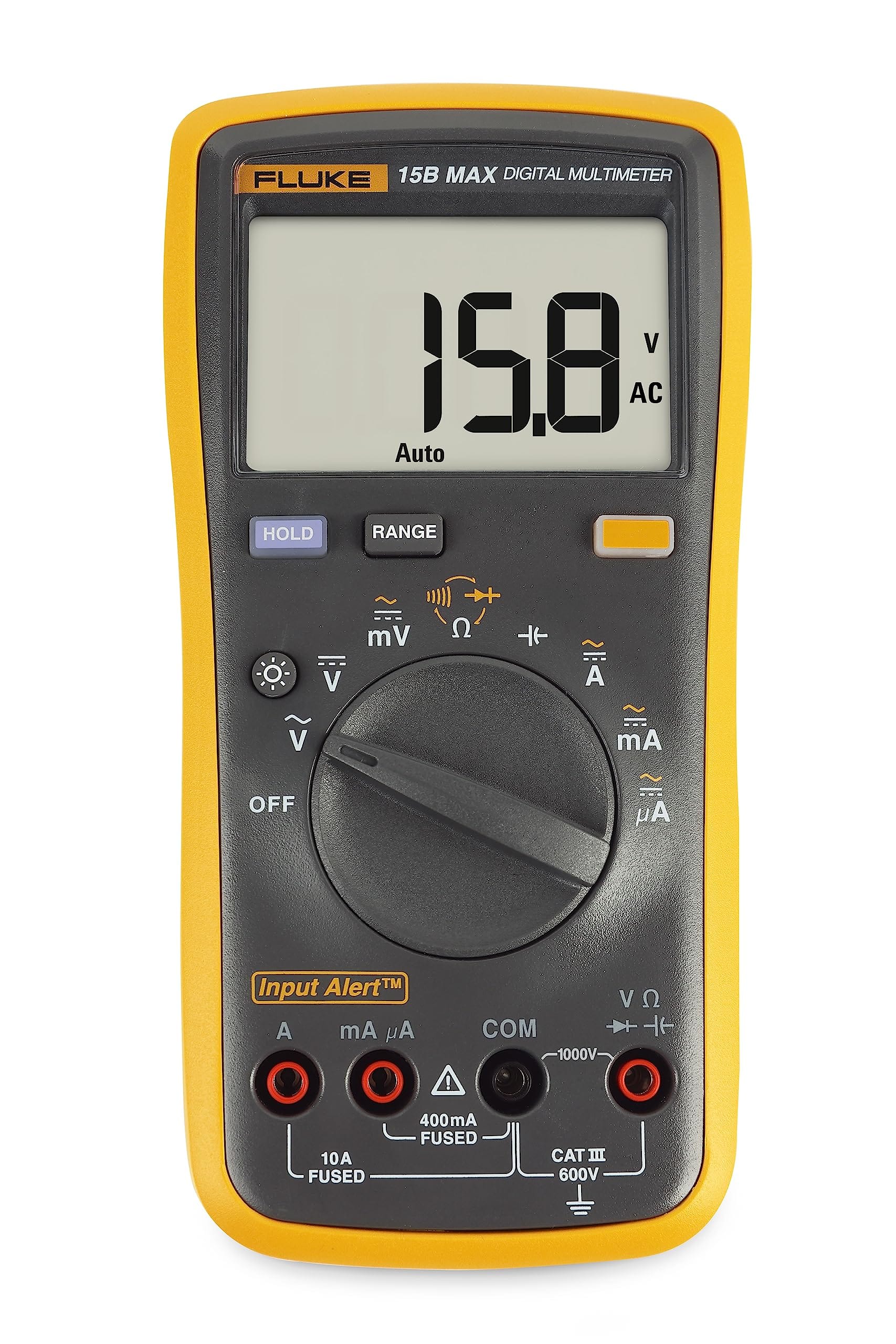

Fluke 15B MAX-01 Digital Multimeter

Fluke 15B MAX-01 Digital Multimeter

$150.00 USD
$150.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Stripe & PayPal

Fluke 15B MAX / 17B MAX Digital Multimeter

The Fluke 15B MAX and 17B MAX Digital Multimeters are reliable and accurate tools for general-purpose electrical troubleshooting and maintenance. Designed for everyday use, these multimeters offer essential measurement capabilities, durability, and ease of use at an affordable price.

Key Features:

  • Large LCD Display: Easy-to-read display with backlight for clear visibility in various lighting conditions.
  • Voltage, Current, Resistance, Capacitance, and Frequency Measurement: Comprehensive measurement capabilities for a wide range of electrical tasks.
  • Diode Test and Continuity Buzzer: Convenient features for component testing and circuit troubleshooting.
  • Data Hold Function: Freezes the displayed reading for easy recording and analysis.
  • Rugged Design: Over-molded case provides increased protection against drops and impacts, ensuring long-term reliability.
  • Compact and Ergonomic: Comfortable to hold and easy to operate with one hand.
  • Auto and Manual Ranging: Select the appropriate range for accurate measurements.
  • Relative Mode: Useful for measuring changes in readings. (17B MAX Only)
  • Frequency and Temperature Measurement: Additional measurement capabilities. (17B MAX Only)

Specifications:

Feature Fluke 15B MAX Fluke 17B MAX
DC Voltage 400.0 mV / 4.000 V / 40.00 V / 400.0 V / 600 V 400.0 mV / 4.000 V / 40.00 V / 400.0 V / 600 V
AC Voltage 4.000 V / 40.00 V / 400.0 V / 600 V 4.000 V / 40.00 V / 400.0 V / 600 V
DC Current 40.00 mA / 400.0 mA / 4.000 A / 10.00 A 40.00 mA / 400.0 mA / 4.000 A / 10.00 A
AC Current 40.00 mA / 400.0 mA / 4.000 A / 10.00 A 40.00 mA / 400.0 mA / 4.000 A / 10.00 A
Resistance 400.0 Ω / 4.000 kΩ / 40.00 kΩ / 400.0 kΩ / 4.000 MΩ / 40.00 MΩ 400.0 Ω / 4.000 kΩ / 40.00 kΩ / 400.0 kΩ / 4.000 MΩ / 40.00 MΩ
Capacitance 4.000 nF / 40.00 nF / 400.0 nF / 4.000 μF / 40.00 μF / 100.0 μF 4.000 nF / 40.00 nF / 400.0 nF / 4.000 μF / 40.00 μF / 100.0 μF
Frequency Not Available 50.00 Hz / 500.0 Hz / 5.000 kHz / 50.00 kHz / 100.0 kHz
Temperature Not Available -40 °C to 400 °C (-40 °F to 752 °F)
DC Voltage Accuracy ±(0.5% + 3) ±(0.5% + 3)
AC Voltage Accuracy ±(1.0% + 3) ±(1.0% + 3)
Safety Rating CAT III 600V CAT III 600V
Dimensions 169 mm x 84 mm x 53 mm 169 mm x 84 mm x 53 mm
Weight 320 g 320 g

Applications:

  • Electrical troubleshooting
  • Electronics repair
  • HVAC maintenance
  • Automotive diagnostics
  • General-purpose measurements

Benefits:

  • Accurate and reliable measurements.
  • Durable design for long-lasting performance.
  • Easy to use and operate.
  • Affordable price.
  • Comprehensive measurement capabilities (especially with the 17B MAX).

Includes:

  • Fluke 15B MAX or 17B MAX Digital Multimeter
  • Test leads
  • User manual

Note: Specifications and features may vary slightly. Refer to the official Fluke website or datasheet for the most up-to-date information.
