Fluke 1503 Insulation Resistance Meter

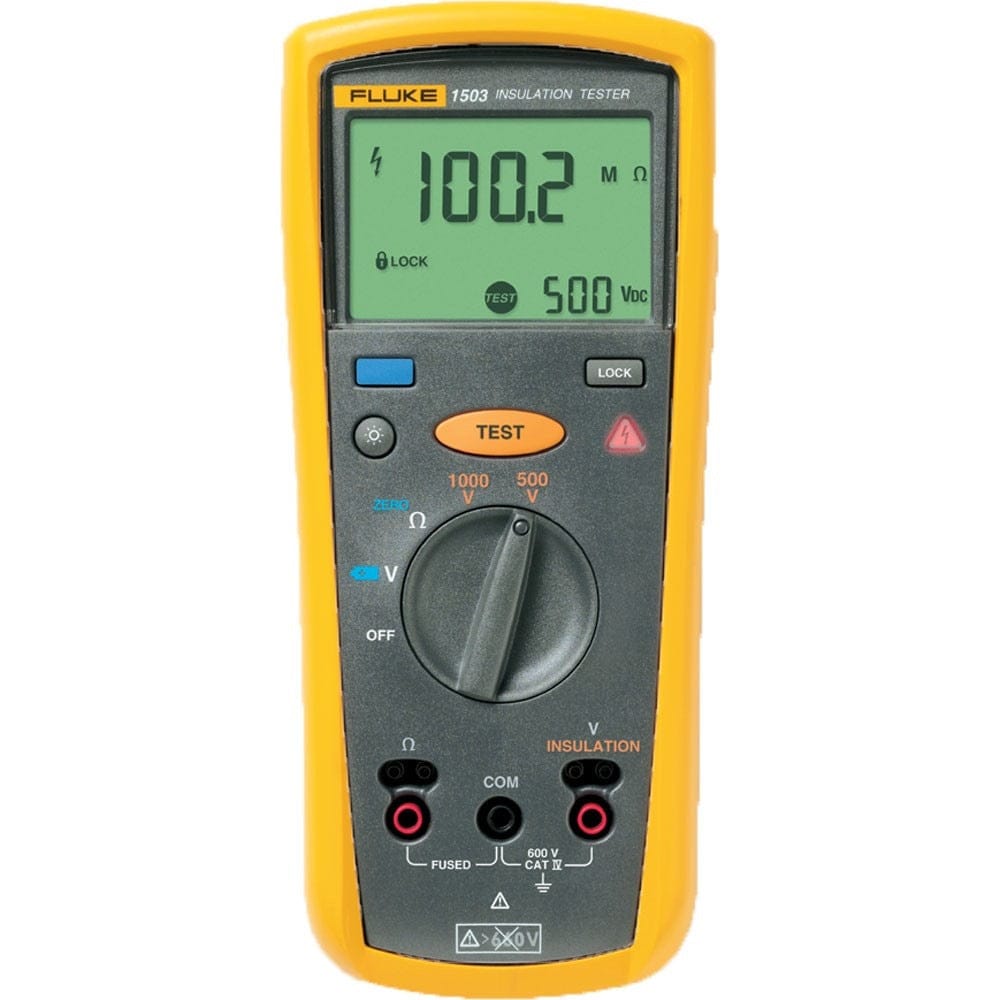

Fluke 1503 Insulation Resistance Tester

The Fluke 1503 Insulation Resistance Tester is a compact, rugged, reliable, and easy-to-use tool for insulation testing. Ideal for troubleshooting, commissioning, and preventative maintenance applications.

Key Features:

• Multiple Test Voltages: 500 V and 1000 V test voltages.
• Insulation Resistance Measurement: Measures insulation resistance from 0.1 MΩ to 2000 MΩ
• AC/DC Voltage Measurement: Measures AC/DC voltage from 0.1 V to 600 V.
• Continuity Testing: Performs continuity testing from 0.01 Ω to 20 kΩ.
• Remote Test Probe: Enables convenient and safe testing.
• Auto-discharge of Capacitive Voltage: For added user protection.
• Live Circuit Detection: Prevents insulation test if voltage greater than 30 V is detected for added user protection.
• Display: Large, backlit digital display for easy reading in all lighting conditions.
• Rugged and Compact: Lightweight and durable design for field use.
• Automatic Shut-off: Saves battery power.

Specifications:

• Voltage rating: 600V
• Insulation Test Voltages: 500 V, 1000 V
• Insulation Resistance Range: 0.1 MΩ to 2000 MΩ
• AC/DC Voltage Measurement: 0.1 V to 600 V
• Continuity Testing: 0.01 Ω to 20 kΩ
• Live Circuit Detection: Prevents test if voltage > 30 V is detected
• Remote Probe: Yes
• Auto-discharge: Yes
• Display Backlight: Yes
• Automatic Shut-off: Yes

Applications:

• Testing motors
• Testing generators
• Testing cables
• Troubleshooting
• Preventative maintenance
