Ferraz Shawmut NH000GG50V10 DIN NH Fuse-Link, gG, 10A 500VAC/250VDC, NH000 Size, 120kA, Double Indicator - Pack of 3

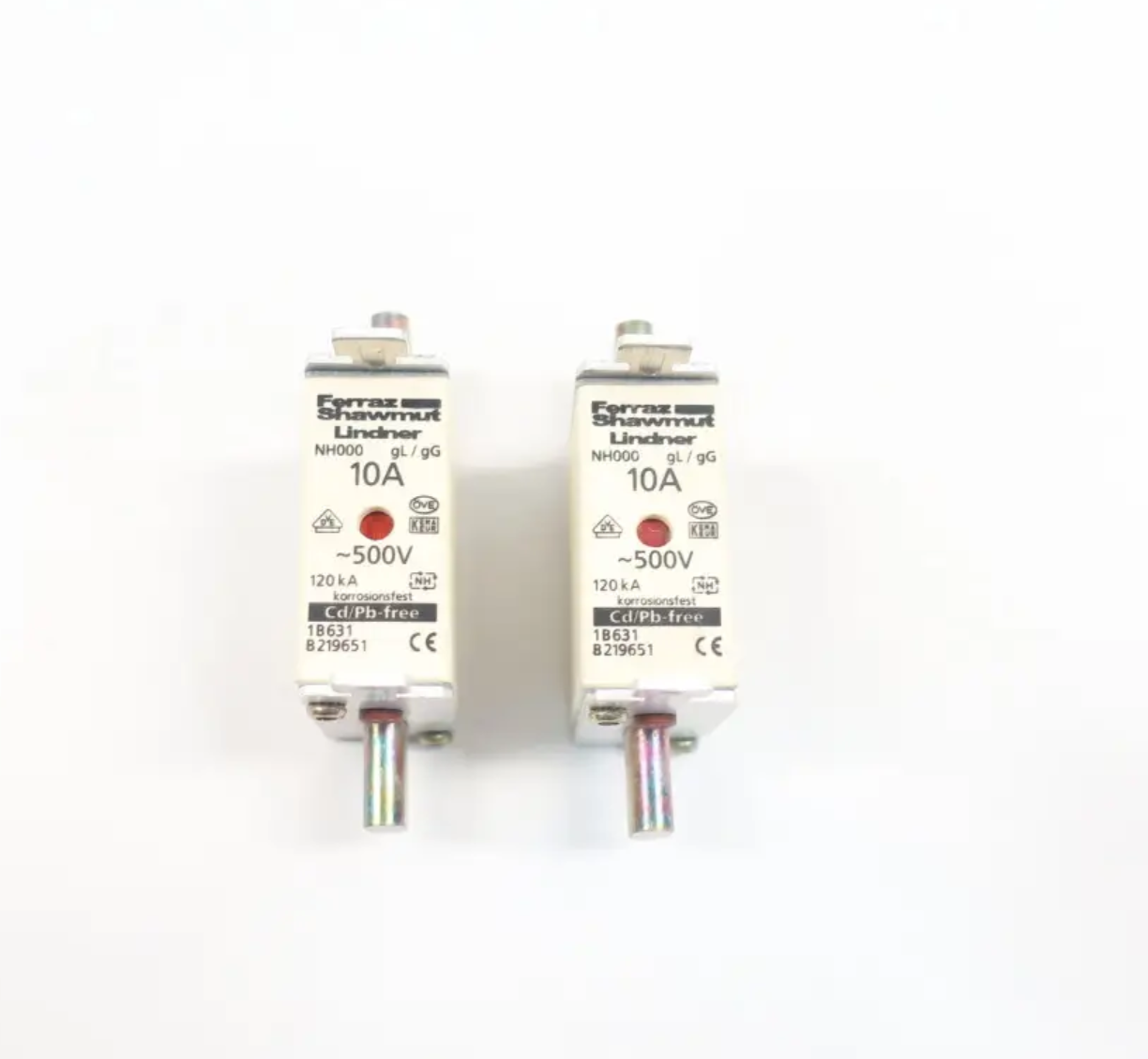

Ferraz Shawmut NH000GG50V10 DIN NH Standard gG Fuse-Link

The Ferraz Shawmut NH000GG50V10 is a high-performance, general-purpose (gG) fuse-link designed for robust and reliable protection in a wide array of industrial electrical systems. Conforming to DIN NH standards, this fuse ensures full-range protection against both overload and short-circuit currents, making it an essential component for safeguarding electrical lines, cables, and equipment. Its ceramic body provides excellent insulation and durability, while the double indicator system offers clear and immediate visual status confirmation. Suitable for both AC and DC applications, this fuse delivers a high breaking capacity, critical for demanding environments.

Key Features:

• General Purpose Protection (gG Characteristic): Offers full-range protection for cables and power distribution equipment against overload and short-circuit currents.
• DIN NH Standard Compliance: Ensures compatibility and reliable performance within standard industrial setups.
• Dual Voltage Rating: Suitable for operation at 500V AC and 250V DC across various applications.
• High Breaking Capacity: Rated at 120 kA AC, providing robust protection against high fault currents.
• Visual Indication: Features a double indicator system for clear and immediate fuse status monitoring.
• Durable Construction: Built with a ceramic body for enhanced insulation, thermal stability, and mechanical strength.
• Versatile Application: Ideal for protecting industrial power systems, switchgear, distribution panels, and motor circuits.

Technical Specifications:

• Manufacturer: Ferraz Shawmut (now Mersen)
• Catalogue Number: NH000GG50V10
• Item Number: B219651
• Fuse Type: DIN NH Standard Fuse-Link
• Characteristic: gG (General Purpose)
• Fuse Size: NH000
• Ampere Rating: 10 A
• Rated Voltage AC IEC: 500 V
• Rated Voltage DC IEC: 250 V
• Operating Voltage: AC/DC
• Breaking Capacity AC (I1): 120 kA
• Indication System: Double Indicator
• Connection/Terminal Type: Plain Blades
• Connection/Terminal Material: Silver-Plated Copper
• Mounting: Clip
• Body/Insulating Material: Ceramic
• Power Dissipation at Rated Current: 1.1 W
• ROHS Compliant: Yes
• Product Dimensions:
  • Width: 21 mm
  • Length: 78.5 mm
  • Height: 52.5 mm
• Product Weight: 0.13 kg

Manufacturer Information:

Ferraz Shawmut, now operating under the name Mersen, is a global expert in electrical power and advanced materials. With a legacy spanning over a century, Mersen is renowned for developing innovative and high-quality solutions that meet the demanding needs of industrial and electrical applications worldwide. Their commitment to reliability and safety is reflected in their comprehensive range of protection devices, including the widely trusted DIN NH fuse-links.
