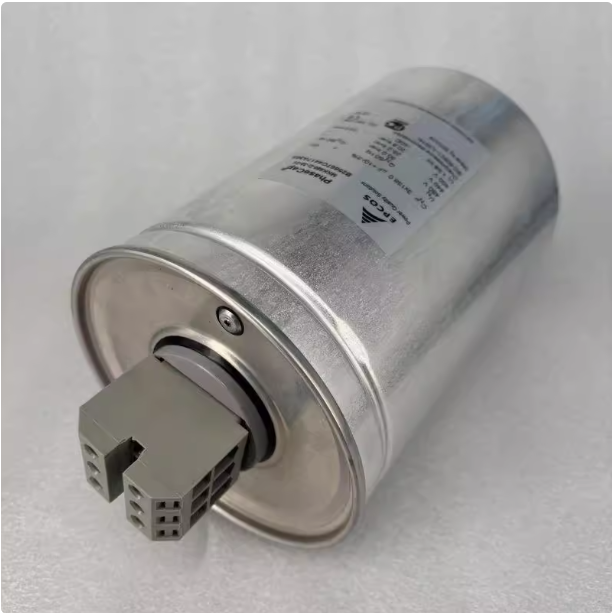

TDK B25667C4417A365 PhaseCap Premium MKK480-D-30-01 Three-Phase Power Factor Correction Capacitor, 30 kvar, 480 V AC - Pack of 4

$1,260.00 USD
$1,260.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express
TECHNICAL DATASHEET PDF

The TDK PhaseCap Premium MKK480-D-30-01 is a high-performance, three-phase power factor correction (PFC) capacitor designed for industrial applications. It features a delta-connected, gas-impregnated polypropylene film construction with self-healing technology and a triple safety system, including an overpressure disconnector. This dry-type, non-PCB capacitor is naturally air-cooled and comes with a pre-mounted ceramic discharge module.

Key Features:

  • Three-Phase, Delta Connected for Power Factor Correction
  • Self-Healing Polypropylene Film Dielectric
  • Dry Type, Gas-Impregnated & Non-PCB
  • Triple Safety System with Overpressure Disconnector
  • Includes Ceramic Discharge Module (≤ 90 s to 75 V)
  • Naturally Air Cooled (Forced Air Cooling Possible)
  • Indoor Mounting in Any Position
  • Complies with IEC 60831-1/2 and UL 810
Product ID B25667C4417A365
Series / Type MKK480-D-30-01
Rated Output 30 kvar
Rated Capacitance 3 • 138 µF
Capacitance Tolerance –5 / +10%
Rated Voltage (VR) 480 V AC
Rated Frequency (fR) 50 Hz
Rated Current (IR) 36 A
Max. Continuous Voltage (Vmax) 530 V AC (up to 8h daily)
Max. Current (Imax) Up to 1.3 • IR (A)
Dissipation Factor (tan δ) ≤ 0.6 W / kvar
Discharge Time ≤ 90 s to 75 V
Climatic Category / Operating Temp. –40/C (–40 °C to +50 °C)
Max. Hotspot Temperature (hotspot) +80 °C
Terminal Cross Section 25 mm²
Max. Terminal Current 80 A
Dimensions (d x h) 136 x 200 mm
Weight approx. 2.4 kg
Fixing / Mounting Stud Threaded bolt M12 (Max. torque 10 Nm)
Degree of Protection IP 20
Reference Standards IEC 60831–1/2, UL 810-5th edition, GOST
