ELECTRONICON MKP-1 AC/DC Capacitor, 40 µF 1200V AC 2000V DC, 80A, E62.N17-403C20 - Pack of 4

Manufacturer Information:

This product is manufactured to meet rigorous international standards and specifications, ensuring high quality and dependable operation.

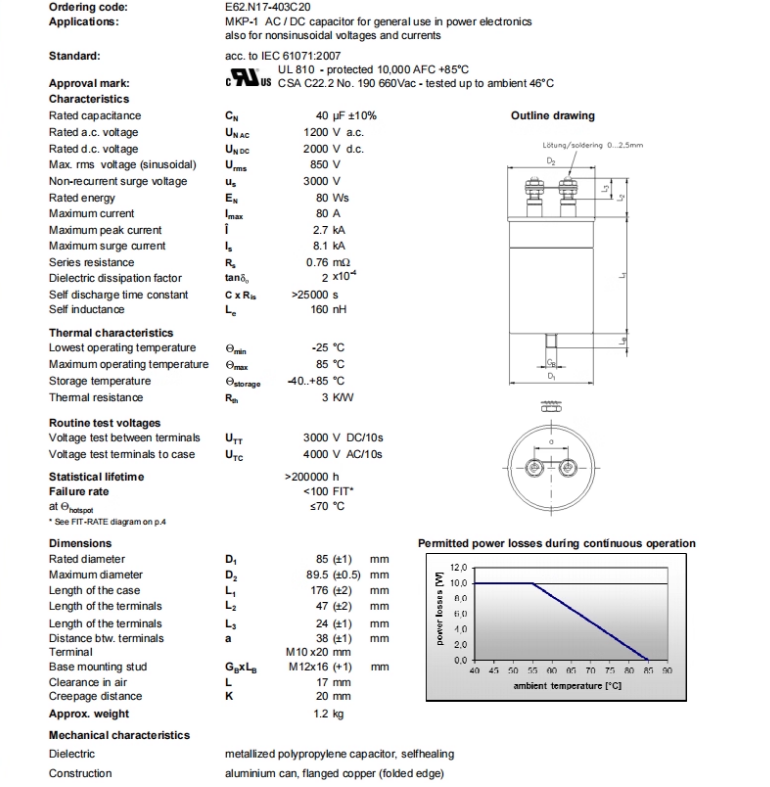

Key Technical Specifications:

• Ordering Code: E62.N17-403C20
• Applications: AC/DC capacitor for general use in power electronics, suitable for nonsinusoidal voltages and currents.
• Standard Compliance: Acc. to IEC 61071:2007
• Approval Marks:
  • UL 810 - protected 10,000 AFC +85°C
  • cULus CSA C22.2 No. 190 660Vac - tested up to ambient 46°C
• Rated Capacitance (Cₙ): 40 µF ±10%
• Rated AC Voltage (UₙAC): 1200 V a.c.
• Rated DC Voltage (UₙDC): 2000 V d.c.
• Max. RMS Voltage (U_rms_): 850 V
• Non-Recurrent Surge Voltage (U_s_): 3000 V
• Rated Energy (Eₙ): 80 Ws
• Maximum Current (I_max_): 80 A
• Maximum Peak Current (Î): 2.7 kA
• Maximum Surge Current (I_s_): 8.1 kA
• Series Resistance (Rₛ): 0.76 mΩ
• Dielectric Dissipation Factor (tanδ): 2 x 10⁻⁴
• Self Discharge Time Constant (C x Rₛ): >25000 s
• Self Inductance (Lₑ): 160 nH

Thermal Characteristics:

• Lowest Operating Temperature (Θ_min_): -25 °C
• Maximum Operating Temperature (Θ_max_): 85 °C
• Storage Temperature (Θ_storage_): -40...+85 °C
• Thermal Resistance (R_th_): 3 KW

Routine Test Voltages:

• Voltage Test Between Terminals (U_TT_): 3000 V DC/10s
• Voltage Test Terminals to Case (U_TC_): 4000 V AC/10s

Statistical Lifetime:

• Lifetime: >200000 h
• Failure Rate: <100 FIT*
  • at Θ_hotspot_ ≤70 °C

Dimensions:

• Rated Diameter (D₁): 85 (±1) mm
• Maximum Diameter (D₂): 89.5 (±0.5) mm
• Length of the Case (L₁): 176 (±2) mm
• Length of the Terminals (L₂): 47 (±2) mm
• Length of the Terminals (L₃): 24 (±1) mm
• Distance Between Terminals (a): 38 (±1) mm
• Terminal: M10 x 20 mm
• Base Mounting Stud (G_x_L_B_): M12x16 (+1) mm
• Clearance in Air (L): 17 mm
• Creepage Distance (K): 20 mm
• Approx. Weight: 1.2 kg

Mechanical Characteristics:

• Dielectric: Metallized polypropylene capacitor, selfhealing
• Construction: Aluminium can, flanged copper (folded edge)
