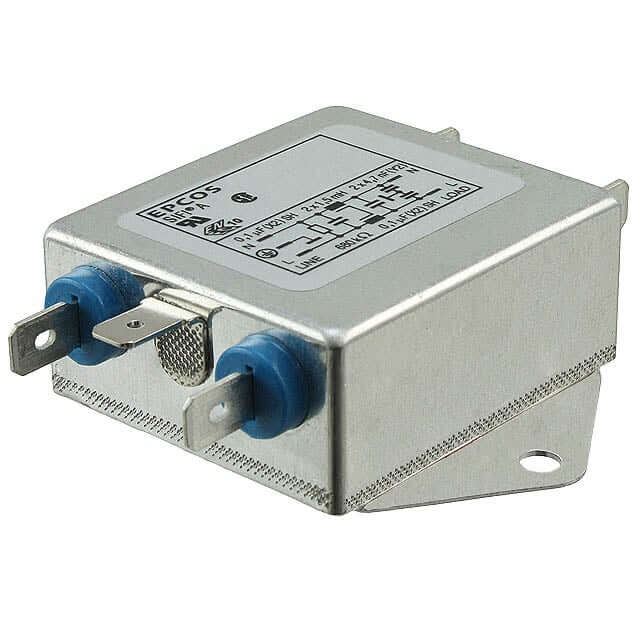

EPCOS B84111A0000B120 B84111B Power Line Filter, 250 V, 20 A, Enhanced Design
Regular price
$80.00 USD
Regular price
Sale price
$80.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The EPCOS B84111A0000B120 is a 2-line power line filter designed for 1-phase systems. Part of the SIFI-B series, it offers enhanced insertion loss and a compact design with optimized leakage current. Ideal for switch-mode power supplies, industrial electronics, telecommunications, and data systems.
Key Features
- Rated voltage: 250 V AC/DC
- Rated current: 20 A
- Enhanced design
- Optimized leakage current < 0.5 mA
- ENEC, UL, and cUL approved
Specifications
| Series | B84111B |
| Rated Voltage (VR) | 250 V AC/DC |
| Rated Current (IR) | 20 A |
| Dimensions (mm) | 84.5 x 37.3 x 31.1 |
| Test Voltage (Vtest) | 1414 V DC (line/line), 2700 V DC (lines/case) |
| Climatic Category | 25/085/21 |
| Capacitance (CR X2) | 2 x 0.47 μF |
| Capacitance (CR Y2) | 2 x 4700 pF |
| Inductance (LR) | 2 x 0.25 mH |
| Leakage Current (ILK) | < 0.5 mA |
| Weight | 280 g |
