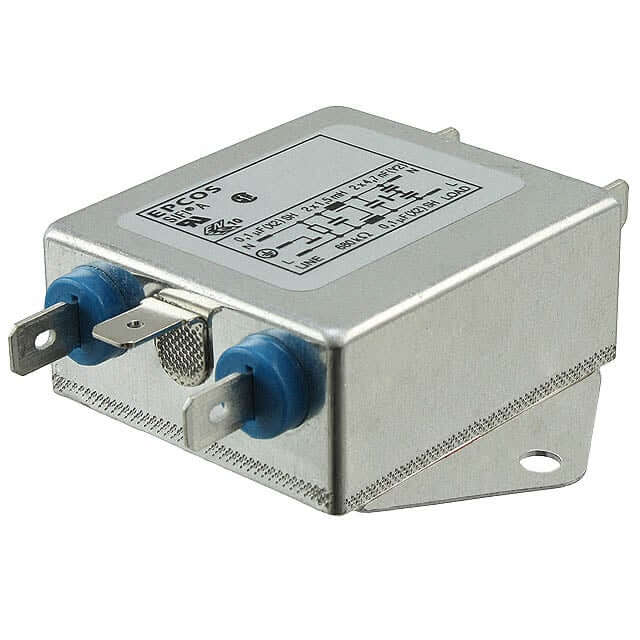

EPCOS B84111A0000A020 B84111A Power Line Filter, 250 V, 2 A, Compact Design
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The EPCOS B84111A0000A020 is a 2-line power line filter designed for 1-phase systems. It is part of the SIFI-A series for normal insertion loss, featuring a compact design with optimized leakage current. Suitable for switch-mode power supplies, industrial electronics, telecommunications, and data systems.
Key Features
- Rated voltage: 250 V AC/DC
- Rated current: 2 A
- Compact design
- Optimized leakage current < 0.5 mA
- ENEC, UL, and cUL approved
Specifications
| Series | B84111A |
| Rated Voltage (VR) | 250 V AC/DC |
| Rated Current (IR) | 2 A |
| Dimensions (mm) | 45 x 22.3 x 14 |
| Test Voltage (Vtest) | 1414 V DC (line/line), 2700 V DC (lines/case) |
| Climatic Category | 25/085/21 |
| Capacitance (CR X2) | 2 x 0.1 μF |
| Capacitance (CR Y2) | 2 x 4700 pF |
| Inductance (LR) | 2 x 1.5 mH |
| Leakage Current (ILK) | 0.369 mA |
| Weight | 80 g |
