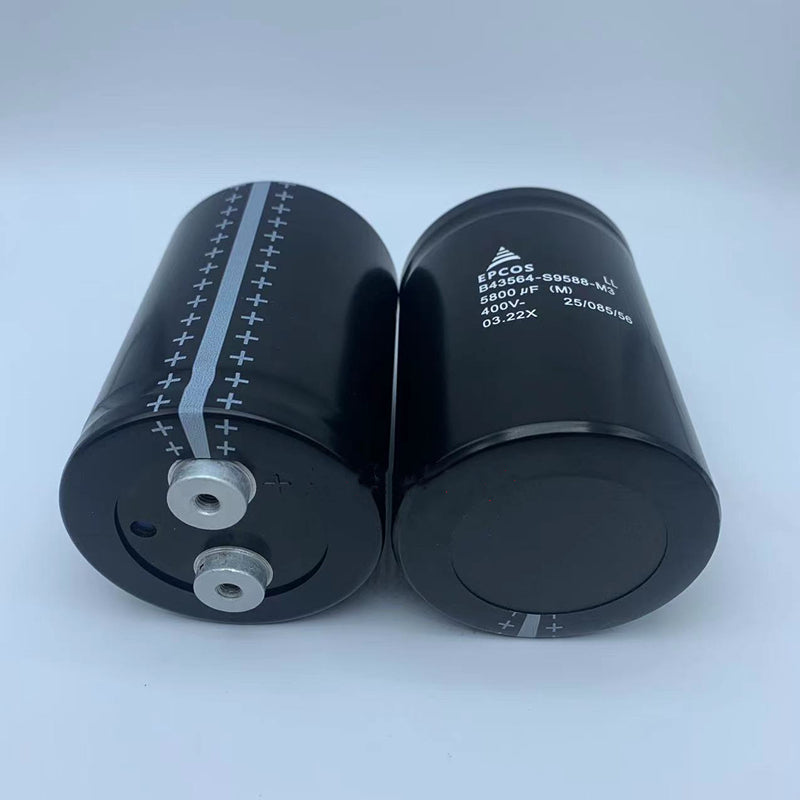

EPCOS B43564-S9588-M3 Aluminum Electrolytic Capacitor, 5800µF 400V, Stud Terminal, - Pack of 6

EPCOS B43564-S9588-M3 Aluminum Electrolytic Capacitor (5800µF, 400V)

The EPCOS B43564-S9588-M3 is a superior-grade aluminum electrolytic capacitor designed for high-performance power electronics. As part of the B43564 series, this component combines a high capacitance of 5800µF with a 400V rating, delivering exceptional energy storage and DC link filtering. It is engineered for a very long useful life and an extremely high ripple current capability. This specific "-M3" version features M5 stud terminals and an integrated PET insulator disc, offering a convenient and robust mounting solution for direct connection using ring terminals and nuts, making it ideal for the most demanding industrial applications.

Manufacturer Information:

• Manufacturer: EPCOS (A TDK Group Company)
• Part Number: B43564-S9588-M3 (Also referenced as B43564S9588M3)
• Product Type: Aluminum Electrolytic Capacitor
• Capacitance: 5800 microfarads (µF)
• Rated Voltage: 400 Volts Direct Current (VDC)
• Tolerance: ±20% (Indicated by the "M" suffix)
• Series: B43564
• Termination Type: Stud Terminals (M5 male threaded studs)
• Useful Life: 12,000 hours at +85 °C
• Operating Temperature Range: -40 °C to +85 °C
• ESR (Equivalent Series Resistance): Very low ESR (typically ≤ 21 mΩ at 100 Hz, 20 °C)
• Standards: Compliant with IEC 60384-4.
