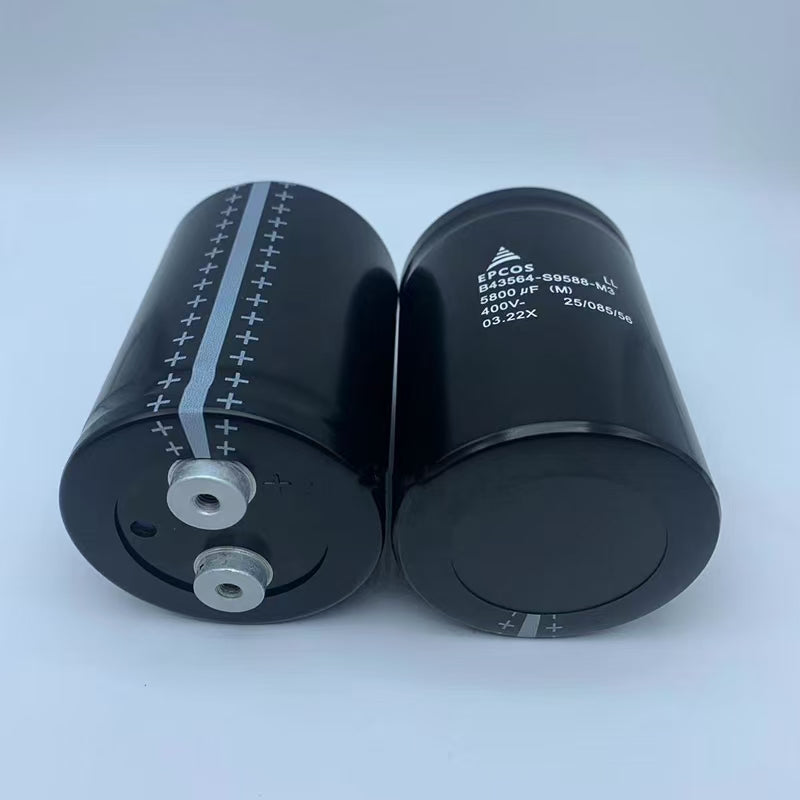

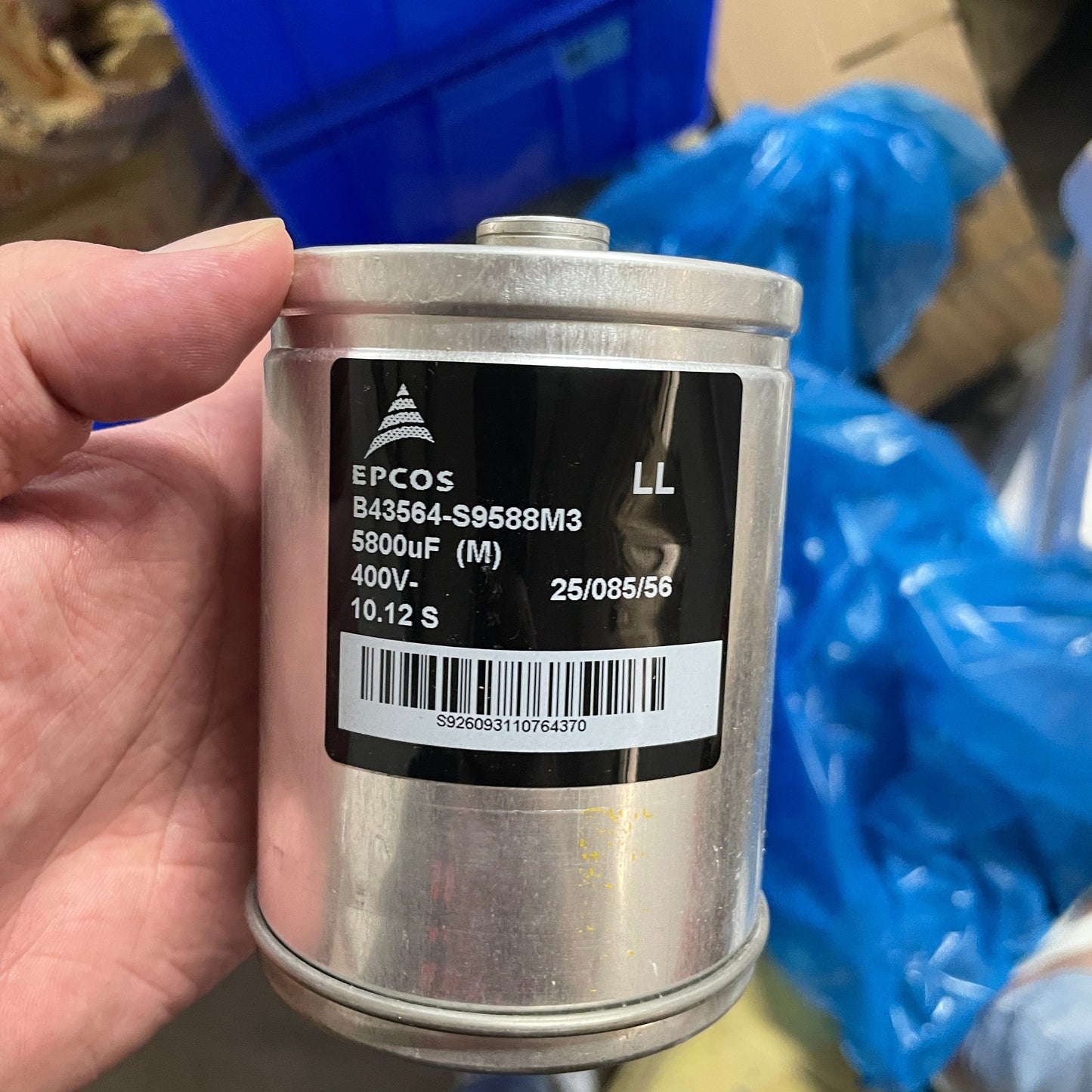

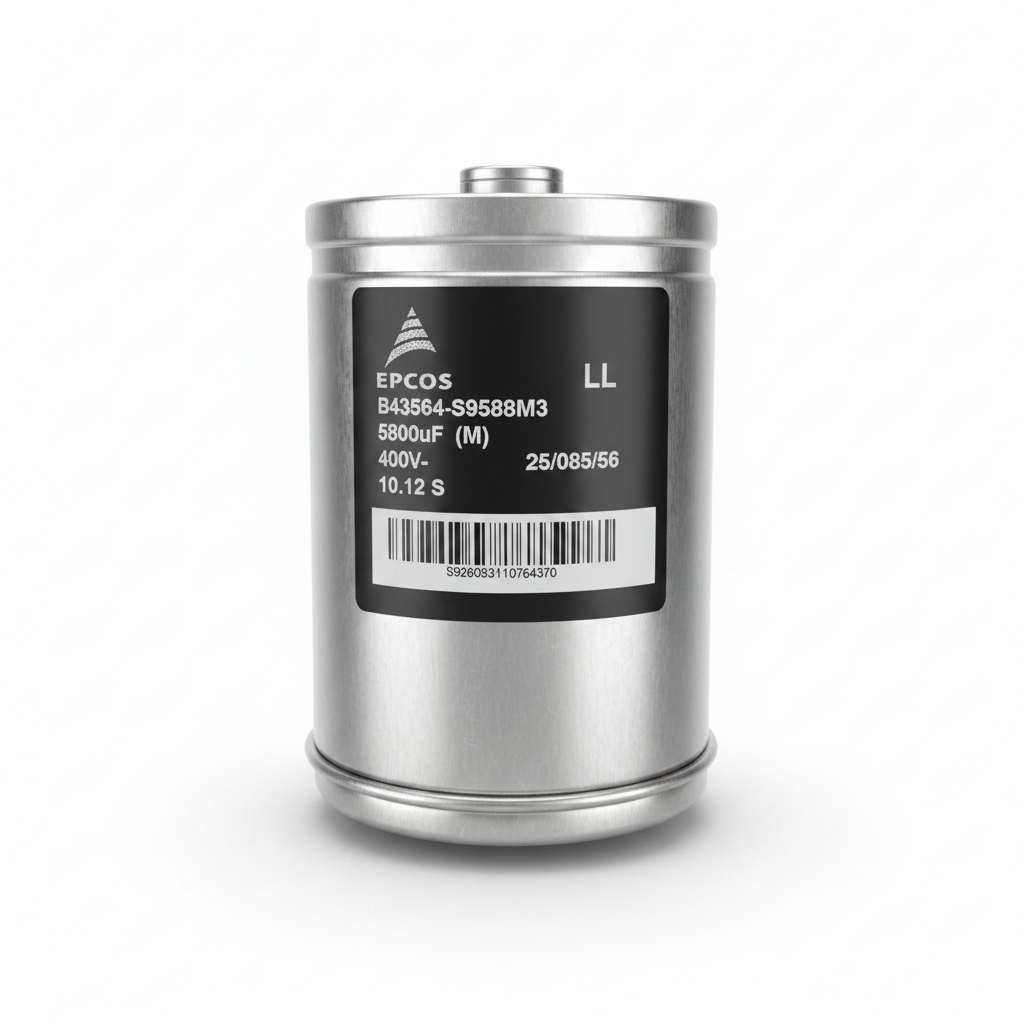

TDK EPCOS B43564-S9588-M003 Aluminum Electrolytic Capacitor, 5800uF 400V, Screw Terminal

The TDK EPCOS B43564-S9588-M003 is a premium industrial-grade aluminum electrolytic capacitor designed for high-power applications requiring high reliability and high ripple current capability. As part of the B43564 series, this component is engineered with a robust screw terminal construction to ensure stable electrical contact and low resistance. It is optimized for use in DC-link circuits, offering an exceptionally long service life and high energy density for critical industrial infrastructure.

Technical Specifications

• Manufacturer: TDK / EPCOS
• Part Number: B43564-S9588-M003
• Capacitance: 5800 µF
• Voltage Rating: 400 VDC
• Capacitance Tolerance: ±20%
• Series: B43564 (High Reliability)
• Operating Temperature Range: -25 °C to +85 °C
• Terminal Type: Screw Terminal

Construction & Mechanical Features

• Case Design: Aluminum case with high-performance PVC insulating sleeve.
• Terminal Configuration: Heavy-duty screw terminals for secure chassis mounting and high current loads.
• Safety Features: Integrated pressure relief vent located on the capacitor base or cover.
• Special Variant (M003): Specialized terminal/mounting configuration designed for enhanced mechanical stability.

Primary Industrial Applications

• Power Converters: Frequency converters and industrial motor drives.
• Uninterruptible Power Supplies (UPS): Energy storage and smoothing in large-scale UPS systems.
• Renewable Energy: Wind power converters and solar central inverters.
• Medical Equipment: High-voltage DC-link circuits in professional diagnostic imaging scanners.
