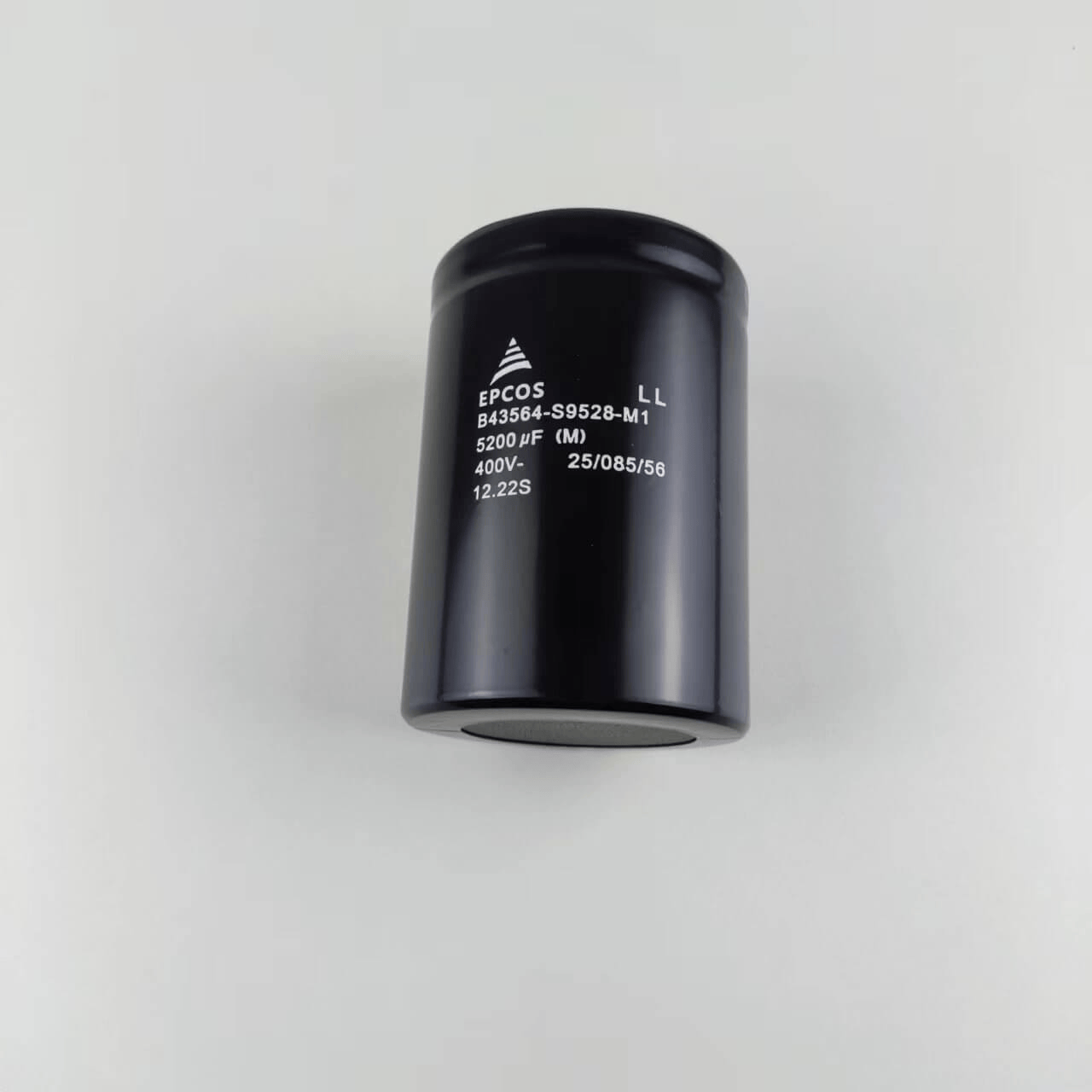

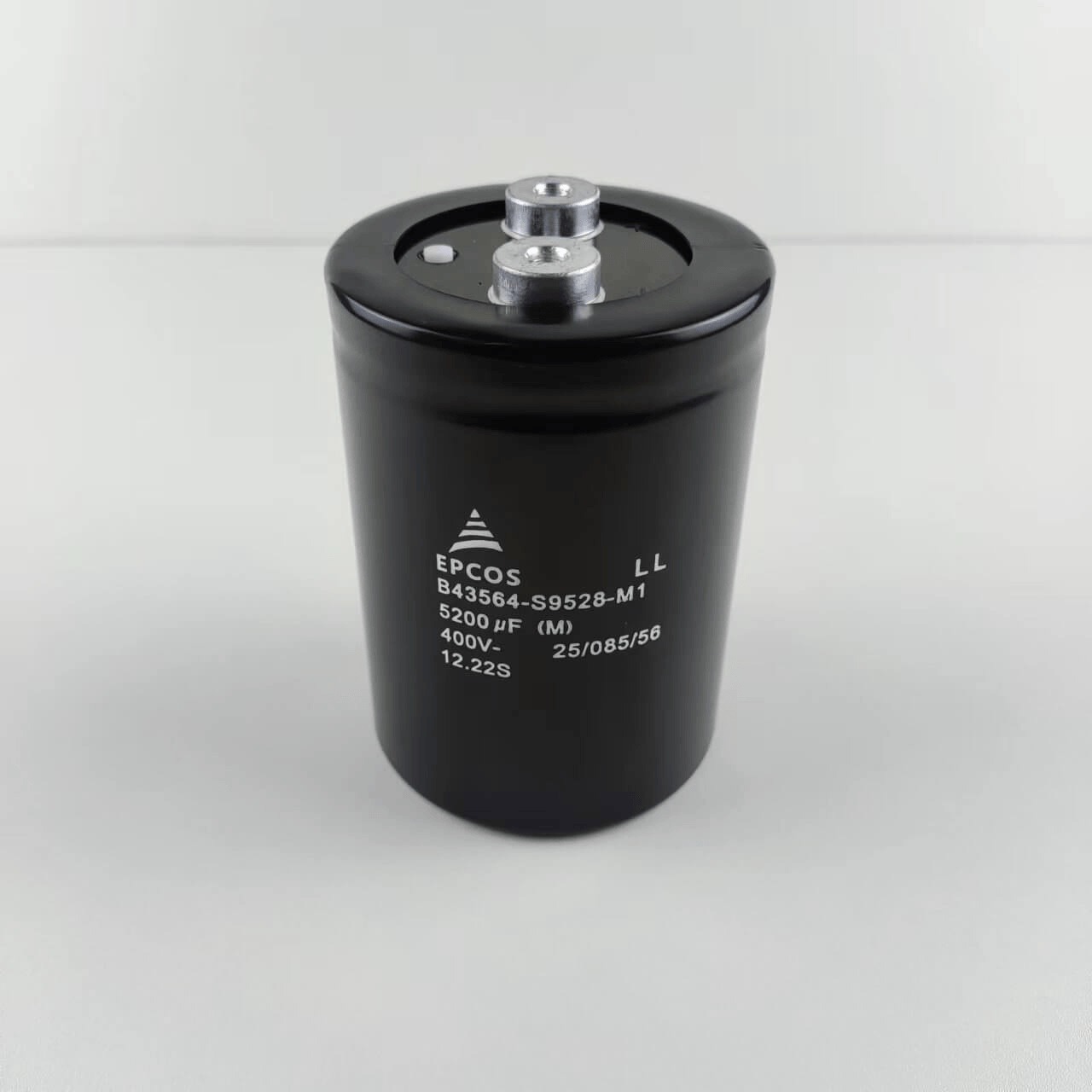

EPCOS TDK B43564-S9528-M1 Aluminum Electrolytic Capacitor, 5200uF 400V, Long Life Screw Terminal - Pack of 12

The EPCOS (TDK) B43564-S9528-M1 is a high-reliability, long-life aluminum electrolytic capacitor designed for industrial-grade applications. Engineered with a robust screw terminal construction, this capacitor is optimized for high ripple current capability and exceptional durability. The "LL" (Long Life) designation ensures extended service life even under demanding operational conditions, making it an ideal choice for power electronics, industrial inverters, and professional power supply units.

Key Features

• High Capacitance & Voltage: Provides a substantial 5200 µF reservoir at a 400V DC rating, suitable for high-power energy storage and filtration.
• Long Life (LL) Performance: Specifically designed for longevity, maintaining stable electrical parameters throughout its extended service life.
• Enhanced Ripple Current Capability: Engineered to handle high ripple currents, which is critical for frequency converters and solar inverters.
• Secure Screw Terminals: Features heavy-duty screw terminals for high-current connections and superior mechanical stability in high-vibration environments.
• Reliable Thermal Design: Rated for operation up to 85°C, ensuring performance stability in industrial enclosures and power cabinets.

Technical Specifications

• Manufacturer: EPCOS (TDK)
• Part Number: B43564-S9528-M1
• Capacitance: 5200 µF
• Voltage Rating: 400V DC
• Tolerance: ±20% (M)
• Operating Temperature Range: -25°C to +85°C
• Termination Style: Screw Terminals
• Features: Long Life (LL), Charge-Discharge Proof
• Housing: Insulated Aluminum Case
• Package Quantity: 12 Pieces
