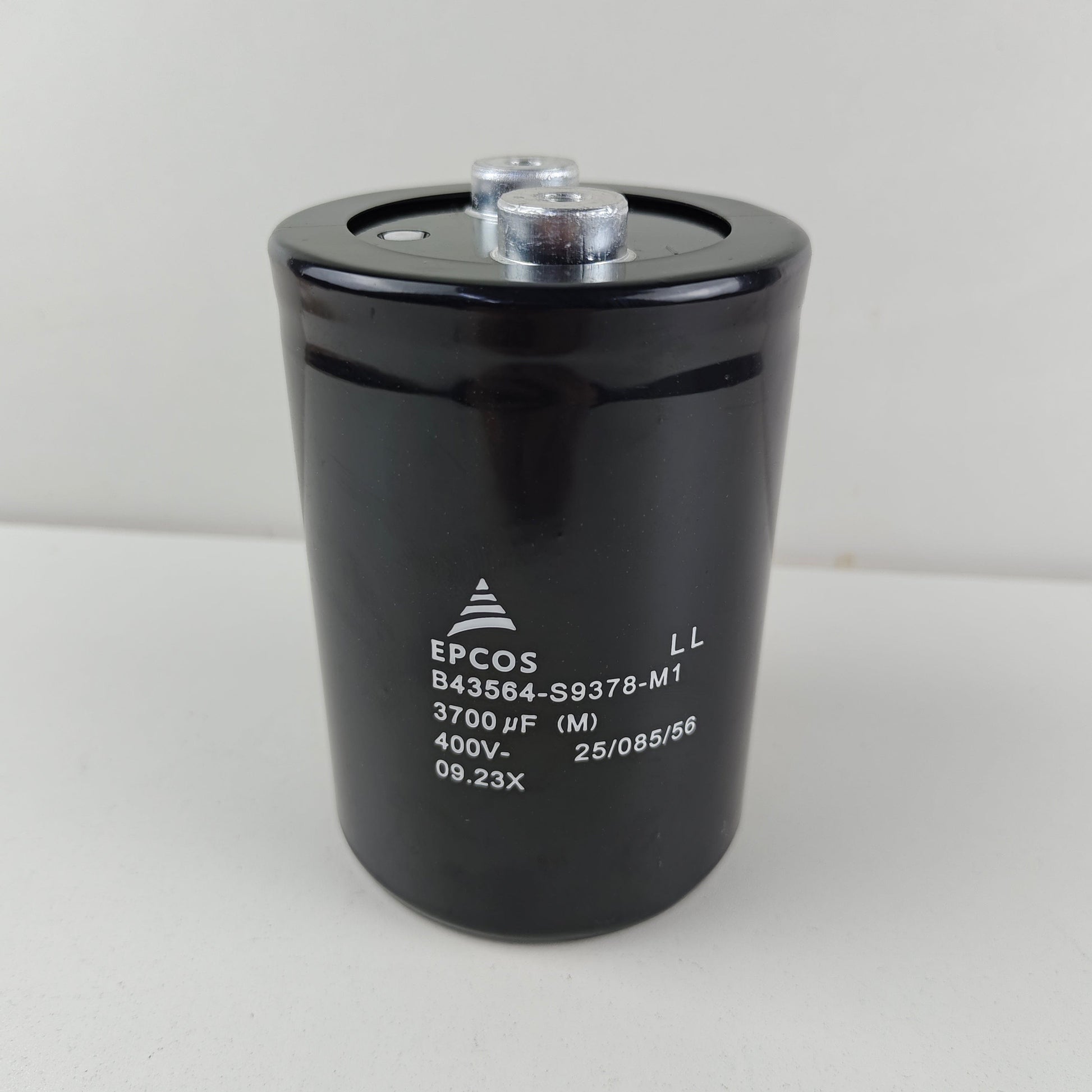

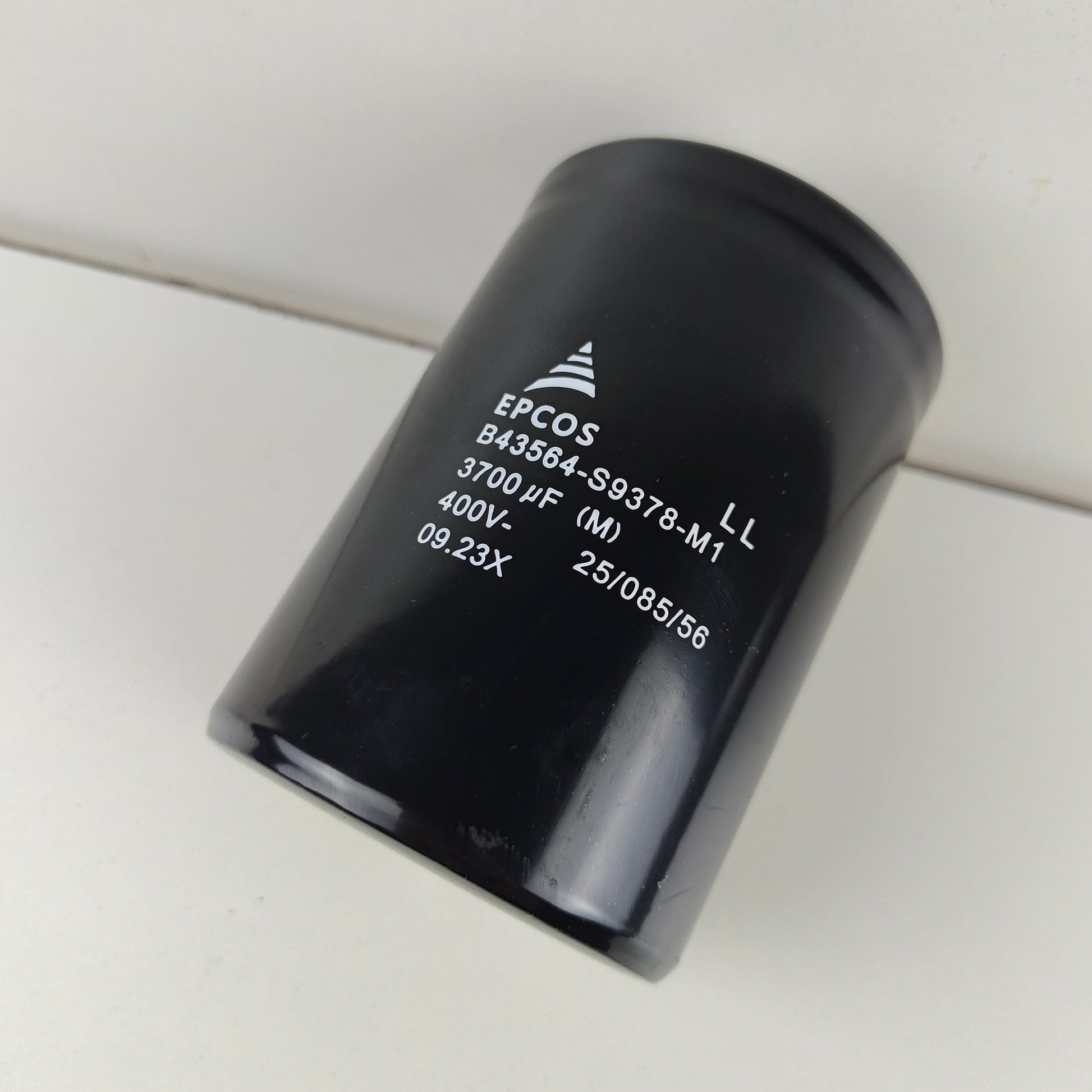

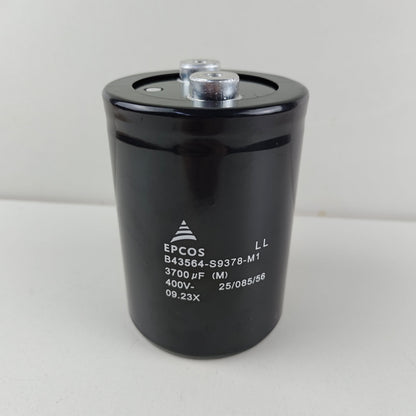

TDK EPCOS B43564-S9378-M1 Aluminum Electrolytic Capacitor, 3700uF 400V, Screw Terminal
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The EPCOS B43564-S9378-M1 is a high-reliability, long-life (LL) aluminum electrolytic capacitor featuring screw terminals. As part of the B43564 series, this component is engineered for professional power electronics that demand exceptional durability and performance, such as frequency converters, uninterruptible power supplies (UPS), and industrial power supplies. It boasts an all-welded construction for robust electrical contact and high ripple current capability. The capacitor is housed in a fully insulated aluminum case with an overpressure relief vent for safety. The "S" designation in the part number indicates a specialized version tailored for specific performance requirements.
| Product ID | B43564-S9378-M1 |
| Manufacturer | EPCOS (TDK) |
| Series | B43564 (Long Life) |
| Rated Capacitance | 3700 µF |
| Rated Voltage (Vr) | 400 V DC |
| Capacitance Tolerance | ±20% (Code M) |
| Terminal Style | Screw Terminals |
| Technology | Aluminum Electrolytic |
| Climatic Category | 25/085/56 (IEC 60068-1) |
| Lower Category Temperature | -25 °C |
| Upper Category Temperature | +85 °C |
| Case Construction | Aluminum Case with Insulating PVC Sleeve |
| Safety Feature | Overpressure Relief Vent |
