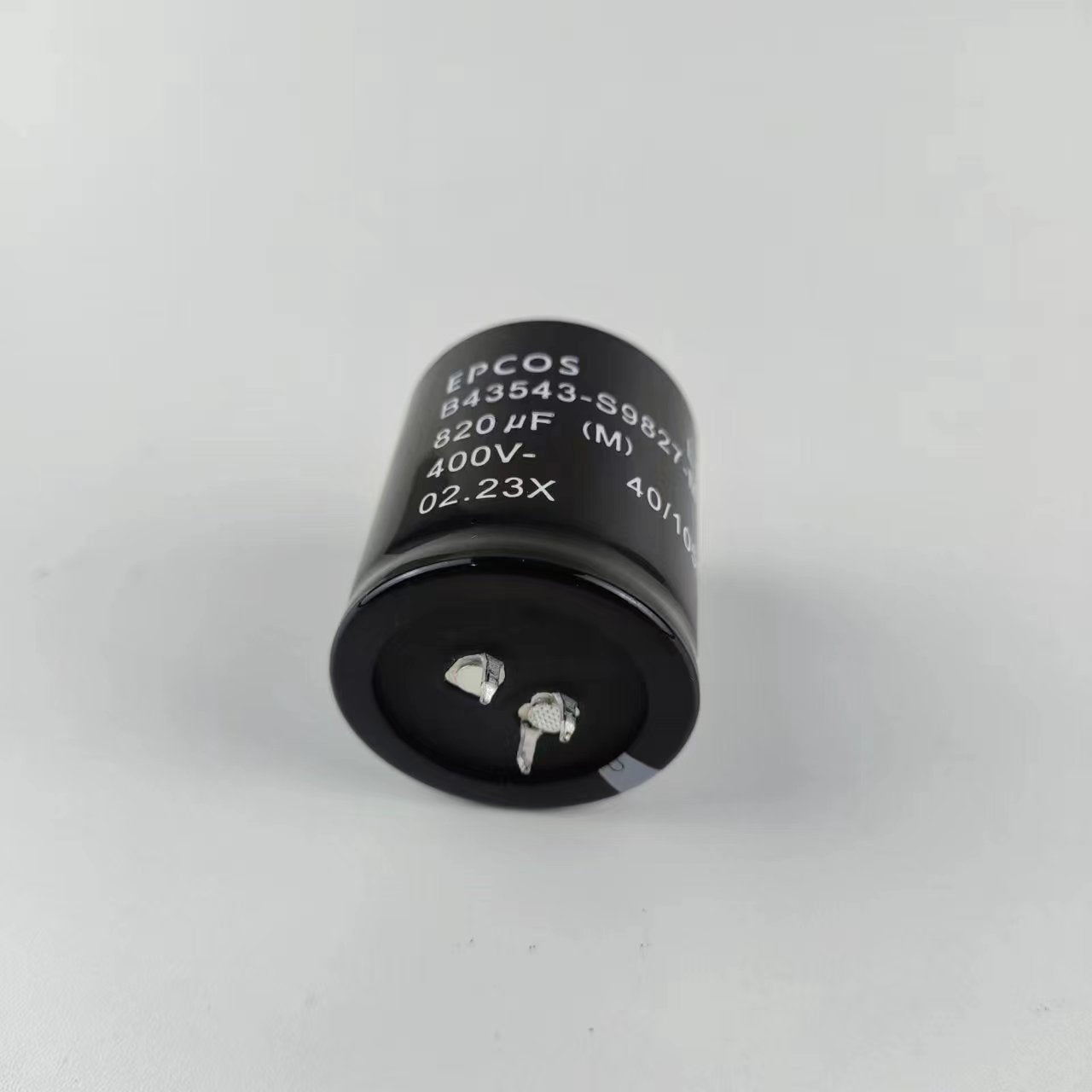

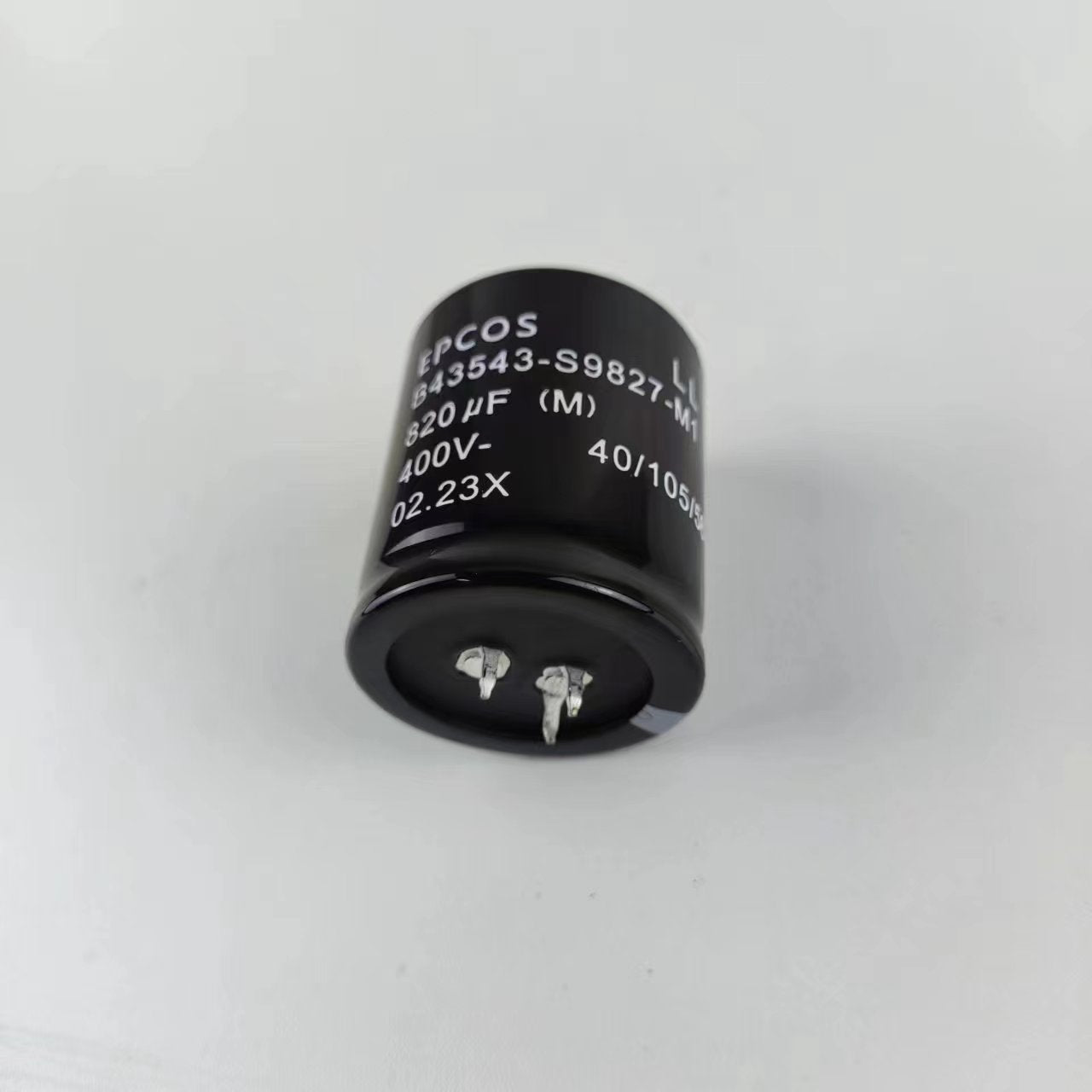

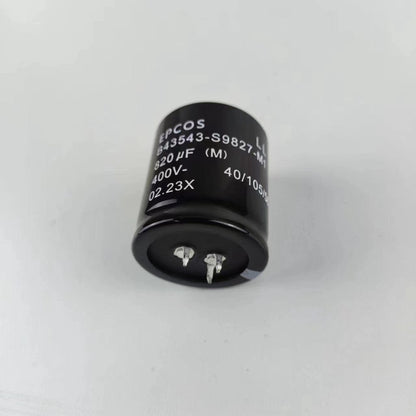

EPCOS B43544E9827M062 Snap-in Capacitor, 820µF, 400V, 35x55mm
Regular price
$20.00 USD
Regular price
Sale price
$20.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The EPCOS B43544E9827M062 is a long-life, high-voltage aluminum electrolytic snap-in capacitor designed for demanding industrial power applications. Part of the B43544 series, it features a very high ripple current capability, improved charge/discharge robustness, and low ESR at elevated temperatures. Its compact 35x55mm case houses an 820µF capacitance rated for 400V DC, making it ideal for servo drives, frequency converters, and UPS systems.
- Very High Ripple Current Capability
- Long-Life Grade, 105°C Rated
- Improved Charge/Discharge Robustness (>50 million cycles)
- Low ESR, Optimized for High-Frequency Operation
- Snap-in Terminals (3 terminals, 4.5mm length) for secure PCB mounting
- PET Insulation with additional PET insulation cap on terminal side
- RoHS Compliant, Passes Needle Flame Test (IEC 60695-11-5)
| Product ID / Ordering Code | B43544E9827M062 |
| Brand / Manufacturer | EPCOS (TDK) |
| Series / Type | B43544 (Snap-in, Long-Life Grade) |
| Rated Capacitance (CR) | 820 µF |
| Capacitance Tolerance | ±20% (M) |
| Rated Voltage (VR) | 400 V DC |
| Surge Voltage (VS) | 460 V DC (1.15 x VR) |
| Dissipation Factor (tan δ @ 20°C, 120Hz) | ≤ 0.15 |
| ESR Typical (100 Hz, 20°C) | 85 mΩ |
| ESR Typical (300 Hz, 60°C) | 24 mΩ |
| Max. Impedance (Zmax @ 10 kHz, 20°C) | 120 mΩ |
| Rated Ripple Current (IAC,R @ 100 Hz, 105°C) | 4.37 A |
| Max. Ripple Current (IAC,max @ 100 Hz, 85°C) | 7.33 A |
| Max. Ripple Current (IAC,max @ 100 Hz, 60°C) | 9.55 A |
| Case Dimensions (d x l) | 35 mm x 55 mm |
| Terminal Style | 3 Snap-in terminals, 4.5 mm length |
| Insulation | PVC with additional PET insulation cap on terminal side |
| Operating Temperature Range | -40°C to +105°C |
| Climatic Category (IEC 60068-1) | 40/105/56 |
| Useful Life (@ 105°C, VR, IAC,R) | > 3000 h (ΔC/C ≤20%, tanδ ≤2x spec, I_leak ≤spec) |
| Applications | Servo Drives, Frequency Converters, Solar Inverters, UPS, Professional Power Supplies |
