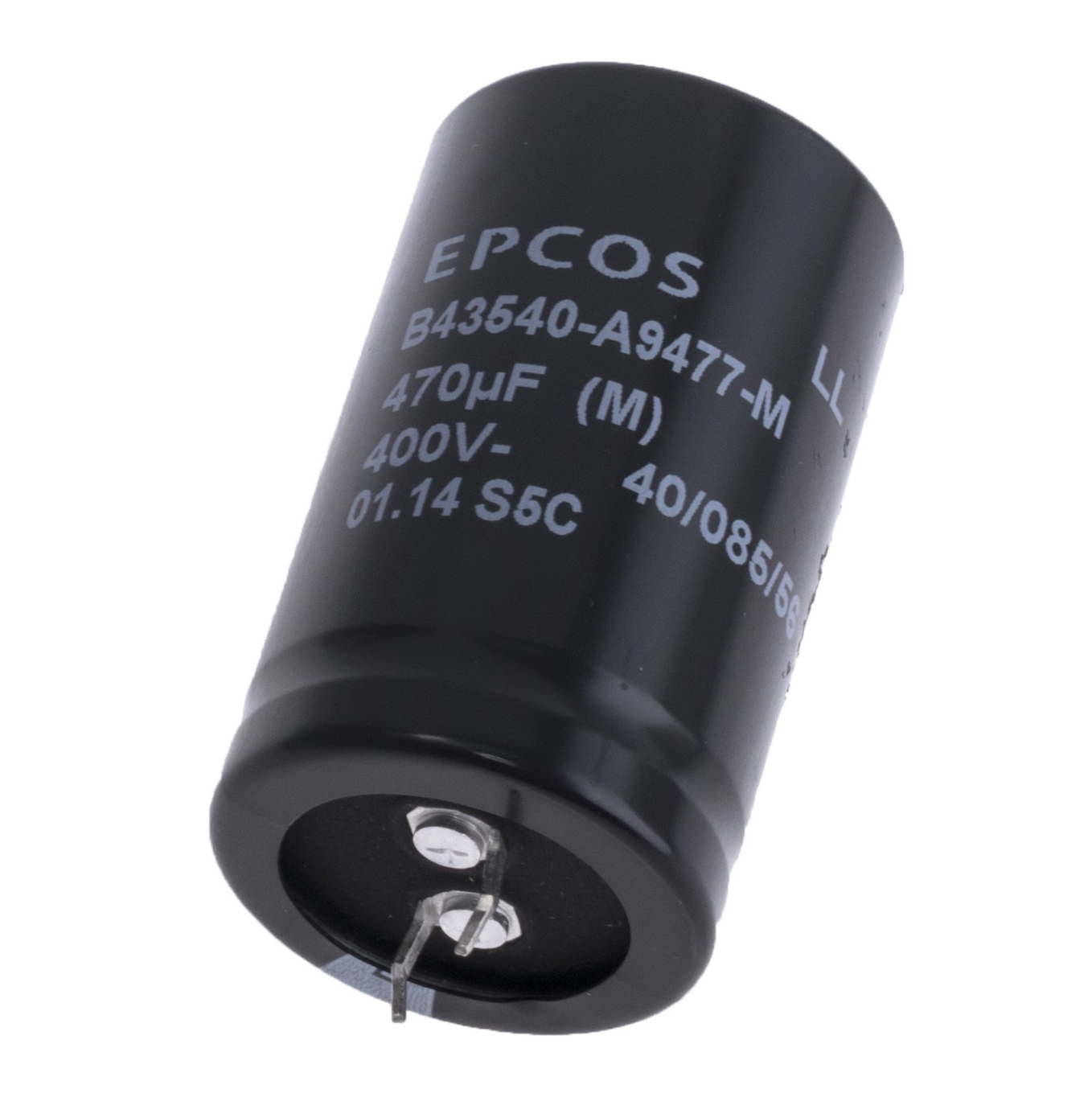

TDK EPCOS B43540A9477M002 B43540 Series Snap-in Capacitor, 470µF, 400VDC, 3-Pin

Overview: The TDK EPCOS B43540A9477M002 is a long-life aluminum electrolytic capacitor from the B43540 series, featuring a snap-in design with three pins for secure and correct PCB insertion. With a 470µF capacitance and a 400VDC voltage rating, this general-purpose capacitor is engineered for high reliability and a service life of 10,000 hours. Its low ESR and specified ripple current capability make it suitable for smoothing and filtering applications in power supplies, industrial controls, and other electronic systems requiring stable performance.

Key Features:

• Long Life Rating: 10,000 hours service life
• 3-Pin Snap-in Design: Ensures correct PCB orientation and secure mounting
• Low Equivalent Series Resistance (ESR): 130 mΩ
• Specified Ripple Current: 3.14 A
• Wide Operating Temperature Range: -40°C to +85°C
• General-purpose design for reliable performance in various applications
• Compact dimensions: 30mm diameter x 50mm length
