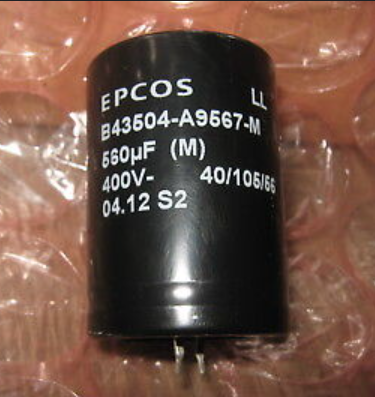

EPCOS B43504A9567M007 B43504 Series Snap-in Capacitor, 560µF, 400VDC
Regular price
$20.00 USD
Regular price
Sale price
$20.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview: The EPCOS B43504A9567M007 is a compact, long-life aluminum electrolytic capacitor from the B43504 series, designed for high-reliability industrial applications. It features a 400VDC rated voltage and 560µF capacitance, housed in a 35mm x 50mm case with snap-in terminals for secure PCB mounting. This component is engineered for high ripple current capability, low ESR, and operation across a wide temperature range up to 105°C, making it ideal for frequency converters, solar inverters, and UPS systems.
Key Features:
- Long-life grade, 105°C rated aluminum electrolytic capacitor
- High CV product in a compact snap-in design
- High ripple current capability and low ESR
- Snap-in solder pins (4.5mm short terminals) for secure PCB mounting
- PVC insulation sleeve; RoHS-compatible
- Designed for frequency converters, solar inverters, UPS, and professional power supplies
| Product ID | B43504A9567M007 |
| Series | B43504 |
| Capacitance | 560 µF |
| Rated Voltage (DC) | 400 V |
| Capacitance Tolerance | ±20% (M) |
| Case Dimensions (d x l) | 35 mm x 50 mm |
| Terminal Style | Snap-in, short terminals (4.5 mm) |
| Insulation | PVC |
| Typical ESR (100 Hz, 20°C) | 160 mΩ |
| Max. Impedance Z (10 kHz, 20°C) | 200 mΩ |
| Max. Ripple Current I_AC,max (100 Hz, 85°C) | 4.60 A |
| Rated Ripple Current I_AC,R (100 Hz, 105°C) | 2.23 A |
| Operating Temperature Range | -40°C to +105°C |
| Climatic Category (IEC 60068-1) | 40/105/56 |
| Dissipation Factor tanδ (120 Hz, 20°C) | ≤ 0.15 |
