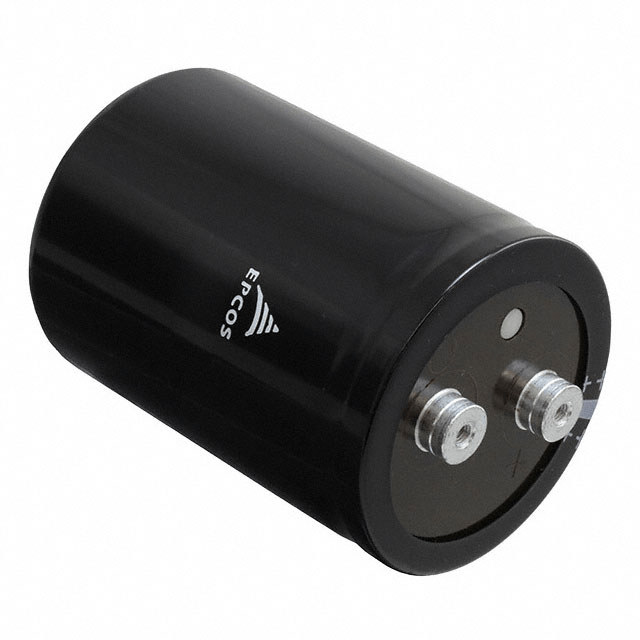

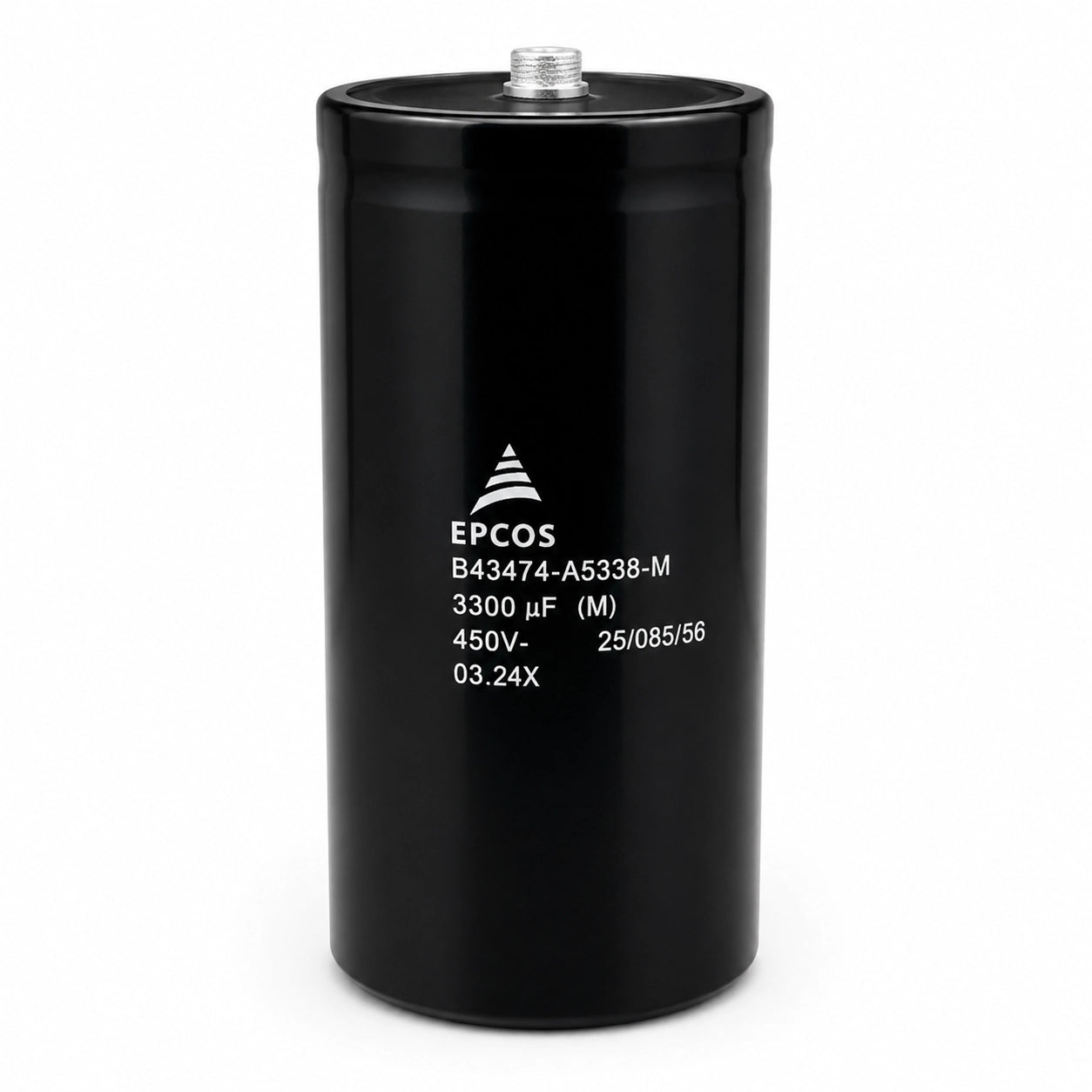

TDK EPCOS B43474A5338M000 Aluminum Electrolytic Capacitor, 3300uF 450VDC, Screw Terminal

Overview: The TDK EPCOS B43474A5338M000 is a high-reliability aluminum electrolytic capacitor from the B43474 series, engineered for demanding industrial power applications. With a 3300µF capacitance and a 450VDC rating, it is optimized for high ripple current handling and long service life in harsh environments. Its robust screw terminal design with a threaded stud mount ensures superior mechanical stability and vibration resistance, making it ideal for high-power DC-link circuits, frequency converters, and professional UPS systems.

Key Features:

• High Capacitance & Voltage: 3300 µF, 450 VDC
• Low Equivalent Series Resistance (ESR): 59 mΩ @ 100 Hz
• High Ripple Current Capability: 9.9 A @ 100 Hz / 85°C
• Robust Mechanical Design: Screw terminals with threaded stud mount for secure, vibration-resistant installation
• Extended Service Life: 5000 hours @ 85°C
• Designed for industrial frequency converters, power supplies, and UPS systems
• Complies with rigorous industrial standards for high-voltage DC applications
