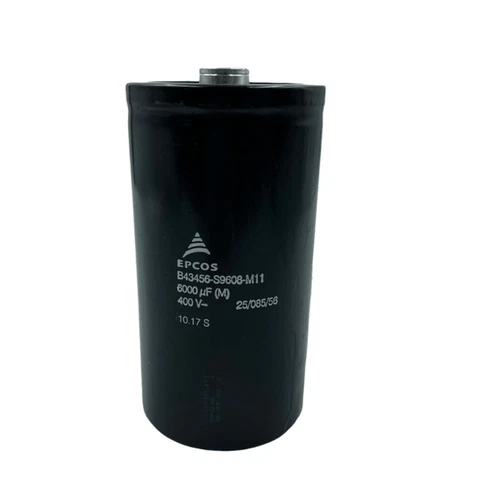

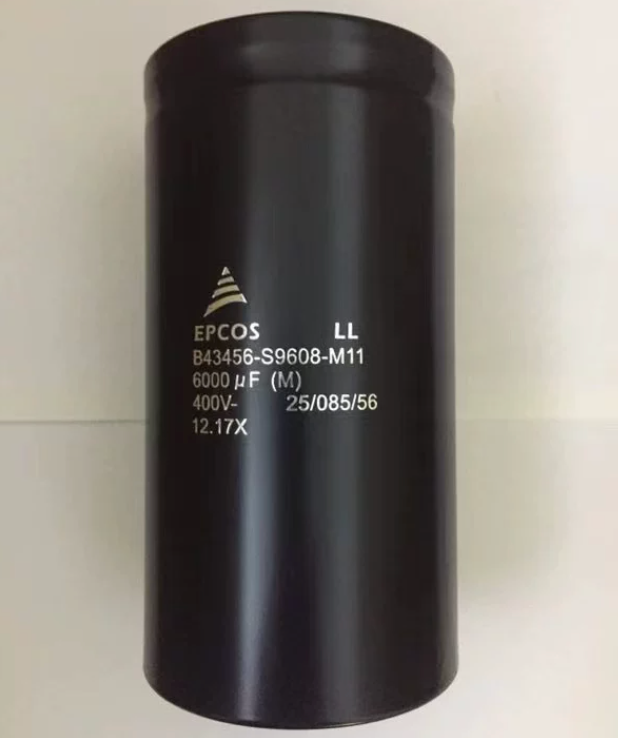

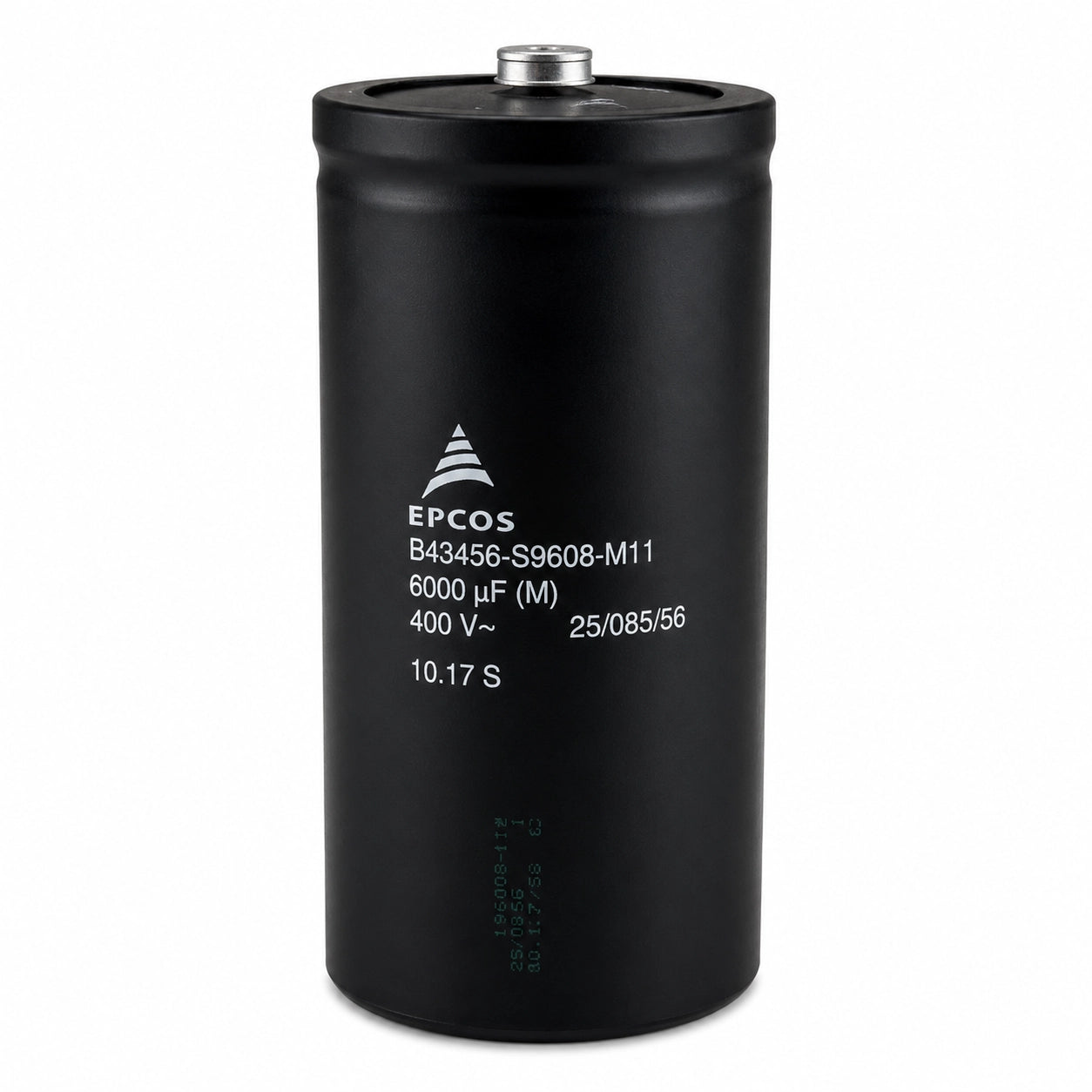

EPCOS B43456-S9608-M11 B43456 Series Aluminum Electrolytic Capacitor, 6000µF, 400VDC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The EPCOS B43456-S9608-M11 capacitor is a reliable and long-lasting choice for your circuit needs. With a high voltage rating of 400V and a large capacitance of 6000uF, it ensures stable and efficient performance.
The EPCOS B43456-S9608-M11 is a high-performance, long-life aluminum electrolytic capacitor with screw terminals. Part of the B43456 series, this component is designed for professional power electronics applications requiring extremely high ripple current capability and exceptional reliability. Featuring an all-welded internal construction for low contact resistance and high mechanical stability, it is ideal for use in frequency converters, professional power supplies, uninterruptible power supplies (UPS), and medical equipment devices. The "S" designation identifies this as a specialized version optimized for specific technical performance in DC-link circuits.
| Product ID | B43456-S9608-M11 |
| Manufacturer | EPCOS / TDK |
| Series | B43456 |
| Rated Capacitance | 6000 µF |
| Rated Voltage (Vr) | 400 V DC |
| Capacitance Tolerance | ±20% (Code M) |
| Terminal Style | Screw Terminals |
| Technology | Aluminum Electrolytic |
| Climatic Category | 25/085/56 (IEC 60068-1) |
| Lower Category Temperature | -25 °C |
| Upper Category Temperature | +85 °C |
| Housing Insulation | Fully Insulated PVC Sleeve |
| Operational Life | Long Life Grade |
| Internal Construction | All-Welded, High Voltage Stability |
