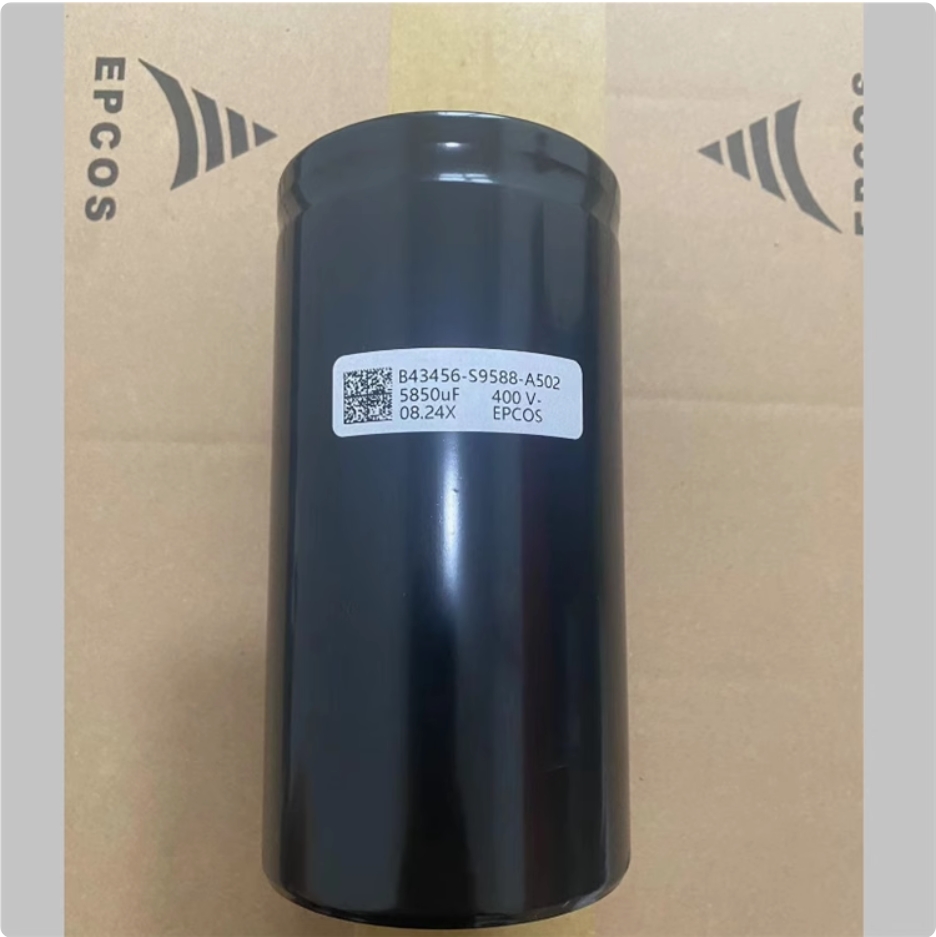

EPCOS B43456-S9588-A502 B43456 Series Screw Terminal Capacitor, 5850µF, 400VDC

Overview: The EPCOS B43456-S9588-A502 is a high-capacitance aluminum electrolytic capacitor from the B43456 series, designed for heavy-duty power filtering and energy storage in industrial applications. With a substantial 5850µF capacitance and a 400VDC voltage rating, this component is engineered to handle high ripple currents and provide stable performance in demanding circuits such as DC-link buses, frequency converters, and UPS systems. Its robust screw terminal construction ensures reliable, low-resistance connections in high-power environments.

Key Features:

• Very High Capacitance: 5850 µF @ 400 VDC
• Designed for high-power filtering and energy storage applications
• Robust screw terminal design for secure, high-current connections
• High ripple current capability for stable operation under fluctuating loads
• Suitable for industrial power electronics, inverters, and professional power supplies
• Aluminum electrolytic technology for long service life
