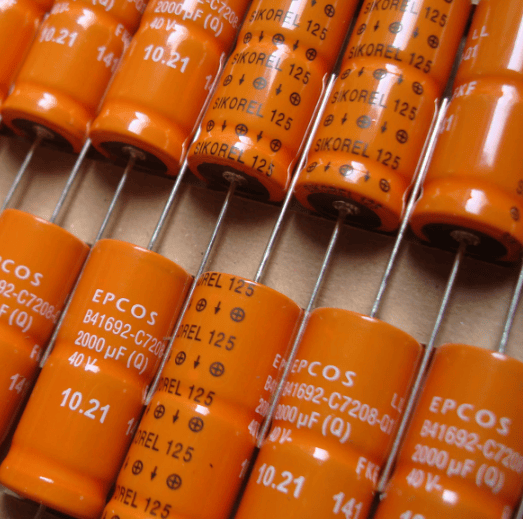

TDK EPCOS B41692C7208Q001 B41692 Series Aluminum Electrolytic Capacitor, 2000µF, 40VDC, Axial-Lead
Regular price
$3.00 USD
Regular price
Sale price
$3.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The TDK EPCOS B41692C7208Q001 is a compact, high-performance aluminum electrolytic capacitor from the B41692 axial-lead series, designed for automotive and demanding industrial applications. It features a long useful life of up to 2000 hours at 140°C and high ripple current capability in a vibration-stable construction. This capacitor is ideal for power filtering and energy storage in automotive electronics, motor drives, and power supplies.
- High vibration stability up to 20g (60g available on request).
- Long useful life: 2000 h at 140°C, 5000 h at 125°C.
- High ripple current capability for power applications.
- Compact design with axial leads for PCB mounting.
- RoHS-compliant and charge/discharge-proof.
- Extended storage life of up to 15 years at 35°C.
| Product ID | B41692C7208Q001 |
| Capacitance | 2000 µF |
| Rated Voltage | 40 VDC |
| Series | B41692 |
| Terminal Type | Axial Lead |
| Case Dimensions (d x l) | 16 x 39 mm |
| ESR Max (100 Hz, 20°C) | 68 mΩ |
| Ripple Current IAC,R (10 kHz, 125°C) | 4.3 A |
| Useful Life at 140°C | > 2000 h |
| Operating Temperature Range | -55°C to +140°C |
| Capacitance Tolerance | -10% / +30% |
