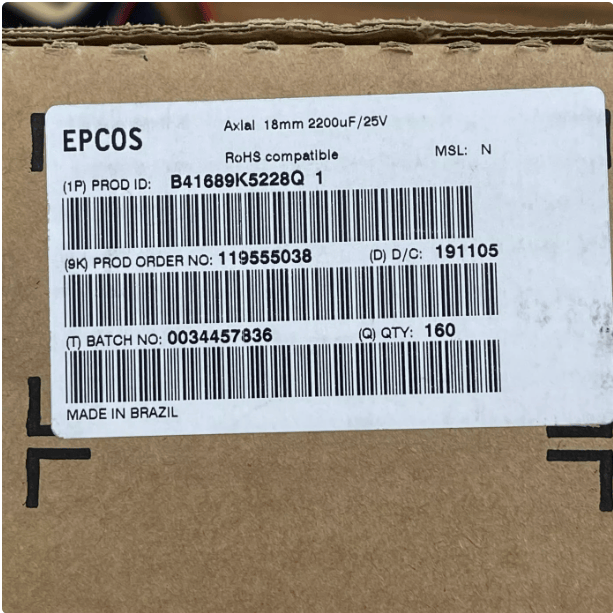

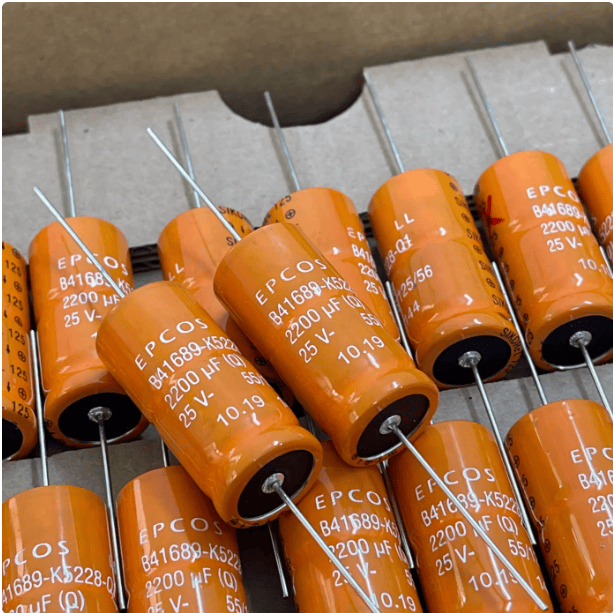

TDK EPCOS B41689A5228Q001 B41689 Series Aluminum Electrolytic Capacitor, 2200µF, 25VDC, Axial-Lead
Regular price
$4.00 USD
Regular price
Sale price
$4.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The TDK EPCOS B41689A5228Q001 is a high-performance aluminum electrolytic capacitor from the B41689 axial-lead series, designed for automotive and demanding industrial applications requiring very high ripple current capability. It features an extended useful life of up to 10,000 hours at 125°C and high vibration stability. This capacitor is ideal for power filtering and energy storage in automotive electronics, DC/DC converters, and high-current power supplies.
- Very high ripple current capability for power-dense applications.
- Long useful life: 10,000 h at 125°C with rated ripple current (IAC,R).
- High vibration stability up to 20g (60g available on request).
- Low ESR, even at rated voltage, for efficient operation.
- SIKOREL design for extended storage life of up to 15 years at 35°C.
- RoHS-compliant and charge/discharge-proof.
| Product ID | B41689A5228Q001 |
| Capacitance | 2200 µF |
| Rated Voltage | 25 VDC |
| Series | B41689 |
| Terminal Type | Axial Lead |
| Case Dimensions (d x l) | 18 x 39 mm |
| ESR Max (100 Hz, 20°C) | 44 mΩ |
| Ripple Current IAC,R (10 kHz, 125°C) | 6.9 A |
| Ripple Current IAC,max (10 kHz, 125°C) | 18.3 A |
| Useful Life at 125°C (IAC,R) | > 10000 h |
| Operating Temperature Range | -55°C to +125°C (150°C max for limited duration) |
| Capacitance Tolerance | -10% / +30% |
