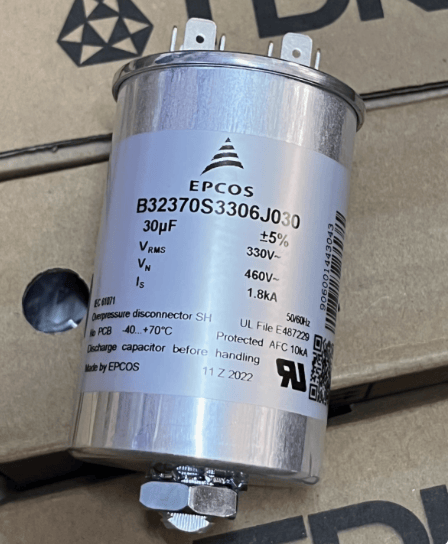

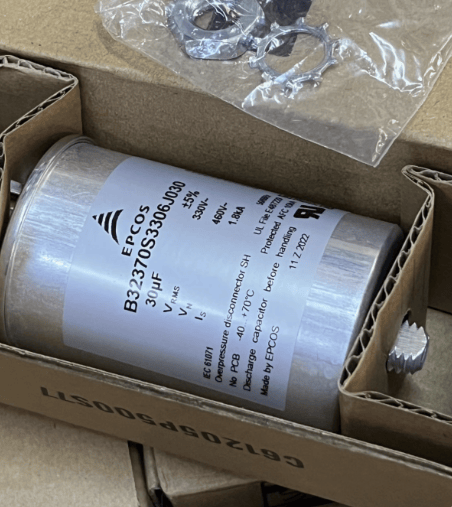

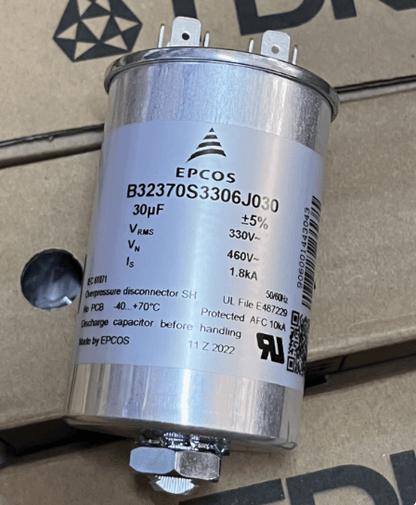

EPCOS B32370S3306J030 B32370S Series Motor Run Capacitor, 30µF, 460V AC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The EPCOS B32370S3306J030 is a motor run capacitor from the B32370S series, designed for single-phase AC motors and general AC applications. It features a self-healing polypropylene film dielectric, housed in a plastic case with a dry-type, soft polyurethane resin filling. This capacitor is engineered for high reliability and safety, incorporating an overpressure safety device and meeting safety class P2 standards per IEC 60252-1. With a capacitance of 30µF, a low dissipation factor, and a rated voltage of 460V AC for 3,000 hours of operation (Class C), it provides stable and long-lasting performance. The component is equipped with 4-pin 6.3mm fast-on terminals and an M8 threaded stud for secure mounting.
| Product ID / Order Code | B32370S3306J030 |
| Manufacturer | EPCOS (TDK) |
| Series | B32370S |
| Rated Capacitance (C_R) | 30 µF |
| Capacitance Tolerance | ±5% (Code J) |
| Rated Voltage (V_R) | 460 V AC |
| Rated Frequency (f_R) | 50 / 60 Hz |
| Operating Life Class (IEC 60252-1) | Class C: 3,000 h (at 460V) / Class B: 10,000 h (at 330V) |
| Safety Class | P2 |
| Technology | Film Capacitor |
| Dielectric | Polypropylene (PP) |
| Construction | Self-healing |
| Filling | Dry type, soft polyurethane resin |
| Climatic Category (IEC 60068-1) | 25/085/21 |
| Operating Temperature Range | -25 °C to +85 °C |
| Dissipation Factor tanδ (at 20°C) | ≤ 5 · 10⁻⁴ |
| Case | Plastic (PP) |
| Dimensions (Diameter x Length) | 40 mm x 115 mm |

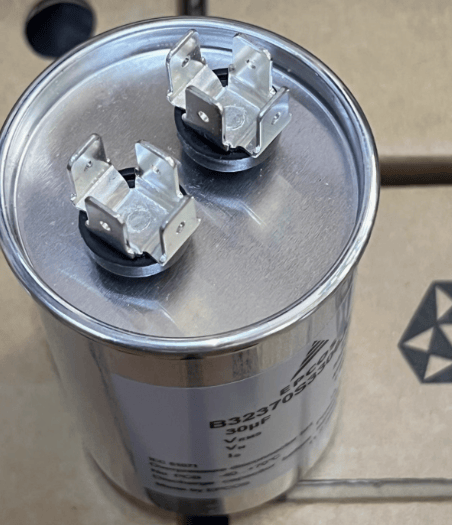

| Terminals | Fast-on terminals 6.3 mm (4-pin) |
| Mounting | Threaded plastic stud M8 x 10 |
| Reference Standards | IEC 60252-1 |
