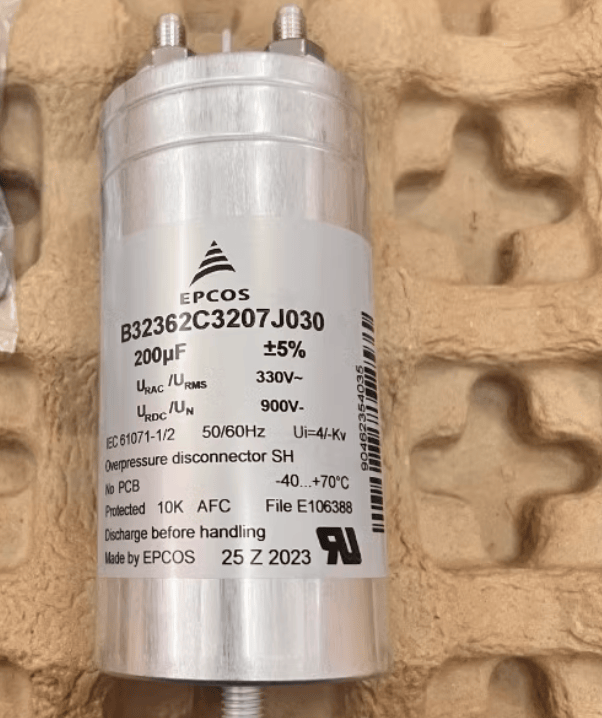

TDK EPCOS B32362B3207J030 B32362 Series FilterCap MKP AC Capacitor, 200µF, 330VAC, M10 Screw Terminal
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The TDK EPCOS B32362B3207J030 is a high-power, single-phase AC filtering capacitor from the B32362 FilterCap MKP series. It features a metallized polypropylene film dielectric, self-healing technology, and an overpressure disconnector for enhanced safety. Designed for demanding power electronic applications, this capacitor offers high current handling, low losses, and a long life expectancy of 100,000 hours at rated conditions. It is ideal for use in heavy-duty AC filter circuits, industrial motor drives, and high-power converters.
- Metallized polypropylene film (MKP) dielectric for superior performance and reliability.
- Self-healing technology and integrated overpressure disconnector safety device.
- High current capability with robust M10 screw terminals.
- Long life expectancy: 100,000 hours at VRMS and Ths ≤ 85°C.
- RoHS compliant, UL 810 approved, and conforms to IEC 61071 standards.
- Non-PCB, soft polyurethane resin filling for environmental safety.
| Product ID | B32362B3207J030 |
| Capacitance | 200 µF |
| Rated AC Voltage (VRMS) | 330 V |
| Rated DC Voltage (VRDC) | 460 V |
| Series | B32362 (FilterCap MKP AC) |
| Terminal Type | M10 Screw Terminal (2x) |
| Maximum Current (Imax) | 1900 ARMS |
| Maximum Peak Current (Î) | 5800 A |
| Surge Current (Is) | 3.1 kA |
| Series Resistance (Rs) | 210 µΩ |
| Self-Inductance (Lself) | 85 nH |
| Case Dimensions (D x H) | 85 x 152 mm |
| Weight | 1.0 kg |
| Operating Temperature Range | -40°C to +70°C (Tmax), Ths ≤ +85°C |
| Capacitance Tolerance | ±5% (J) |
| Dissipation Factor (tan δ @ 100Hz) | ≤ 1.0 x 10-3 |
