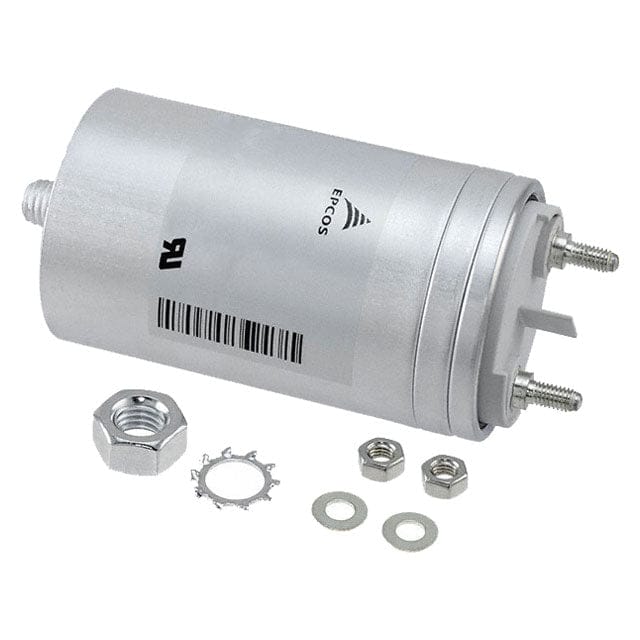

TDK Electronics B32362A3257J030 B3236X FilterCap MKP AC Single-Phase Capacitor, 330V AC (VRMS) / 460V AC (VR), 250µF, M10 Terminals, 85×197mm - Pack of 3
Regular price
$500.00 USD
Regular price
Sale price
$500.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
TDK Electronics FilterCap MKP AC – Single phase (Series B3236X) capacitor B32362A3257J030 is a metallized polypropylene film power electronic capacitor with overpressure disconnector and self-healing technology. It uses M10 screw terminals in an aluminum can for reliable single‑phase AC filtering in general‑purpose power electronics. Sold as a pack of 3.
Key Features
- Metallized polypropylene film, self-healing; resin filled (non‑PCB)
- Overpressure disconnector safety device; IP00
- Designed to IEC 61071; UL 810 compliant (file E106388); RoHS, CE
- Naturally air‑cooled (forced air optional)
- M10 screw terminals; bottom stud mounting/grounding
Applications
- AC filtering in general‑purpose power electronic converters
- Rectifier and inverter input/output filtering
Specifications
| Specific MPN | B32362A3257J030 |
| Series / Type | B3236X FilterCap MKP AC – Single phase (B32362, M10 terminals) |
| Capacitance (CR) | 250 µF ±5% (J) |
| Rated AC Voltage (VR) / VRMS | 460 V (line-to-line peak) / 330 V AC (line-to-line RMS) |
| Rated DC Voltage (VRDC) | 900 V DC |
| Maximum RMS Current (Imax) | 50 A |
| Peak Current (Î) | 3600 A |
| Surge Current (Is) | 10.8 kA (max, non‑repetitive) |
| Series Resistance (Rs) | 1.6–1.7 mΩ (typical table value 1.6–1.7 mΩ; use 1.7 mΩ at 20°C) |
| Self‑inductance (Lself) | 200 nH |
| Terminals | M10 screw terminals (B32362 series), max terminal current 50 A |
| Dimensions (D × H) | 85 mm × 197 mm (aluminum can) |
| Climatic Category | 40/70/21 |
| Operating Temperatures | Ambient −40°C to +70°C; hot‑spot up to +85°C |
| Standards / Compliance | IEC 61071; UL 810 (E106388); GB/T 17702; RoHS; CE |
| Pack Size | 3 pieces |
