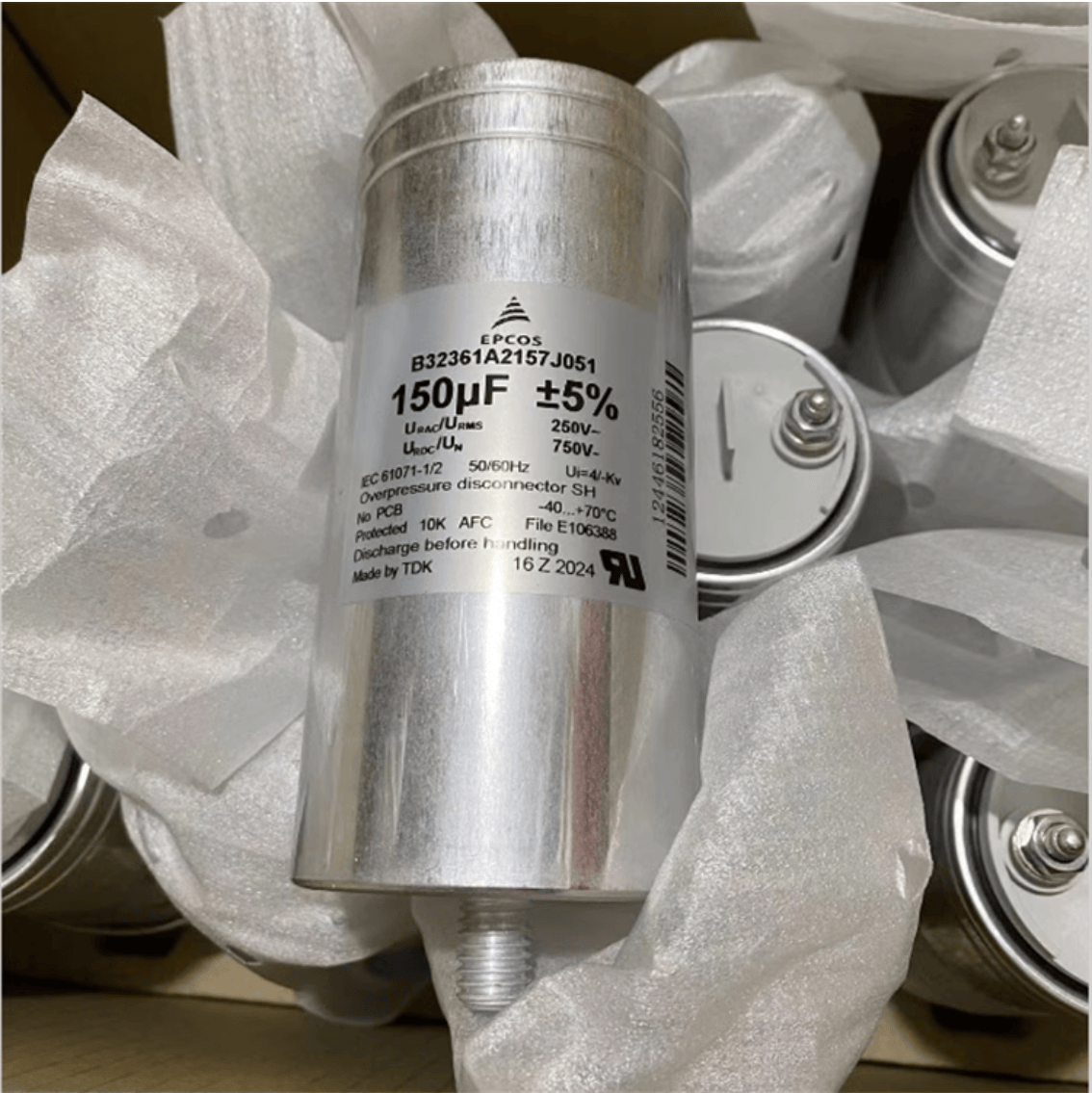

TDK EPCOS B32361A2157J051 B32361 Series FilterCap MKP AC Capacitor, 150µF, 250VAC, M6 Screw Terminal

The TDK EPCOS B32361A2157J051 is a high-performance, single-phase AC filtering capacitor from the FilterCap MKP series. It features a metallized polypropylene film dielectric, self-healing technology, and an overpressure disconnector for safety. Designed for general-purpose power electronic applications, this capacitor offers high current handling, low losses, and a long life expectancy of 100,000 hours at rated conditions. It is ideal for use in AC filter circuits, motor drives, and power supplies.

• Metallized polypropylene film (MKP) dielectric for low losses and high reliability.
• Self-healing technology and overpressure disconnector safety device.
• High current capability with M6 screw terminals for secure connections.
• Long life expectancy: 100,000 hours at V_RMS and T_hs ≤ 85°C.
• RoHS compliant, UL 810 approved, and meets IEC 61071 standards.
• Non-PCB, soft polyurethane resin filling.
