Product Overview
The EPCOS (TDK) B32344D2201A060 is a high-density Power Factor Correction (PFC) capacitor from the Phicap series (Type MKP260-D-16.7). Engineered for low-voltage industrial networks, this 3-phase component features a Delta-connected configuration delivering 16.7 kvar of reactive power at a rated voltage of 260V AC (50Hz).
Constructed with advanced Metallized Polypropylene (MKP) film technology, the capacitor is housed in a cylindrical aluminum case with a threaded mounting stud. It employs a biodegradable soft resin filling (PCB-free) for excellent heat dissipation and environmental safety. The unit is equipped with a triple safety system, including an overpressure disconnector, ensuring reliable operation in harmonic-rich environments and automatic PFC banks.
Technical Specifications
| Product ID / Ordering Code | B32344D2201A060 |
| Manufacturer Brand | EPCOS (TDK Electronics) |
| Series / Type | Phicap / MKP260-D-16.7 |
| Capacitance | 3 x 262.5 µF |
| Rated Output (Qn) @ 50Hz | 16.7 kvar |
| Rated Voltage (Un) | 260 V AC |
| Phase Configuration | 3-Phase |
| Internal Connection | Delta (Δ) |
| Dielectric Material | Metallized Polypropylene (MKP) |
| Impregnation | Soft Polyurethane Resin (Non-PCB, Dry) |
| Safety Features | Overpressure Disconnector (Self-healing) |

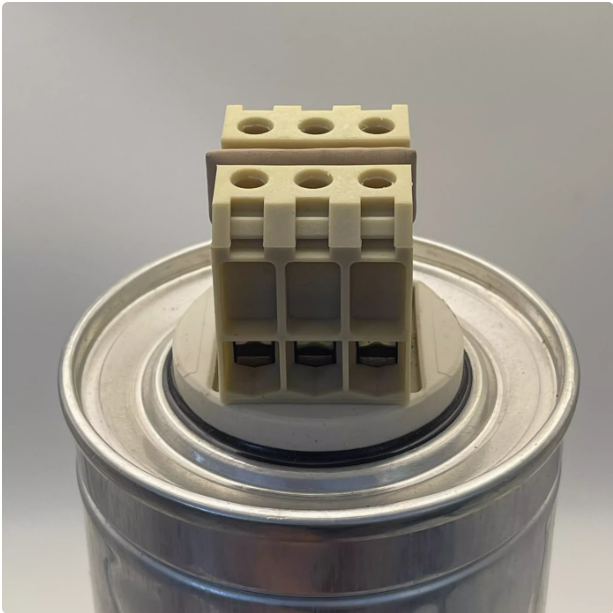

| Termination | Safety Terminals (Screw Clamp) |

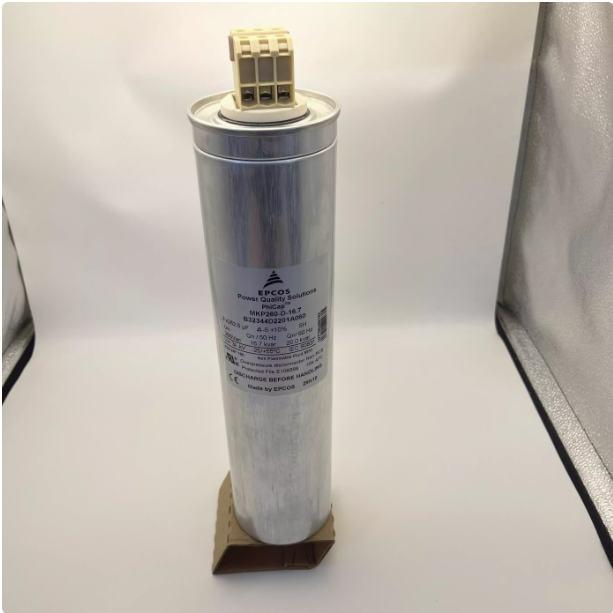

| Construction | Extruded Round Aluminum Can |
| Mounting | Threaded Stud M12 (Bottom) |
| Tolerance | -5 / +10% |
