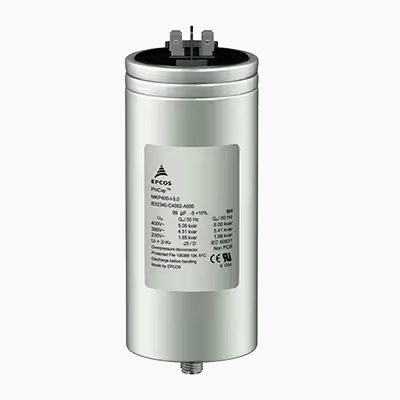

EPCOS B32340C4022A500 MKP400-I Single-Phase Power Factor Correction Capacitor, 2.5 kvar @ 50 Hz, 400 V AC
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
This EPCOS PhiCap MKP400-I is a single-phase, metallized polypropylene film capacitor designed for power factor correction (PFC) applications. It features a self-healing dielectric, an integrated overpressure disconnector, and includes discharge resistors for safe operation. The capacitor is housed in a round aluminum can with an M12 stud mount and is suitable for indoor use.
- Metallized Polypropylene (MKP) Film Dielectric
- Single-Phase with Integrated Discharge Resistors
- Dual Safety System: Overpressure Disconnector & Self-Healing
- Rated for 400 V AC, 50/60 Hz Operation
- Mounting: M12 Threaded Stud (Max Torque 10 Nm)
- Compliant with IEC 60831 and UL 810 Standards
| Product ID / Ordering Code | B32340C4022A500 |
| Type / Series | MKP400-I |
| Rated Capacitance (CR) | 50 µF |
| Rated Voltage (VR) | 400 V AC |
| Rated Frequency (fR) | 50/60 Hz |
| Output @ 50 Hz | 2.5 kvar |
| Rated Current @ 50 Hz (IR) | 6.3 A |
| Output @ 60 Hz | 3.0 kvar |
| Rated Current @ 60 Hz (IR) | 7.5 A |
| Capacitance Tolerance | –5/+10% |
| Maximum Permissible Current (Imax) | Up to 1.3 · IR |
| Dissipation Factor (tan δ) @ 100 Hz | ≤ 1.0 x 10-3 |
| Climatic Category (IEC) | -25/D |
| Ambient Temperature (Max.) | 55 °C |
| Dimensions (Diameter × Height) | 63.5 × 105 mm |
| Weight (Approx.) | 0.40 kg |
| Mounting / Fixing | Threaded Stud M12 (Max. Torque 10 Nm) |
| Terminals | Fast-on Terminals |
| Degree of Protection | IP00 (IP54 optional with cover) |
| Discharge Resistor Time (to ≤ 75 V) | ≤ 1 minute |
| Standards | IEC 60831–1/2, UL 810 (5th edition) |
