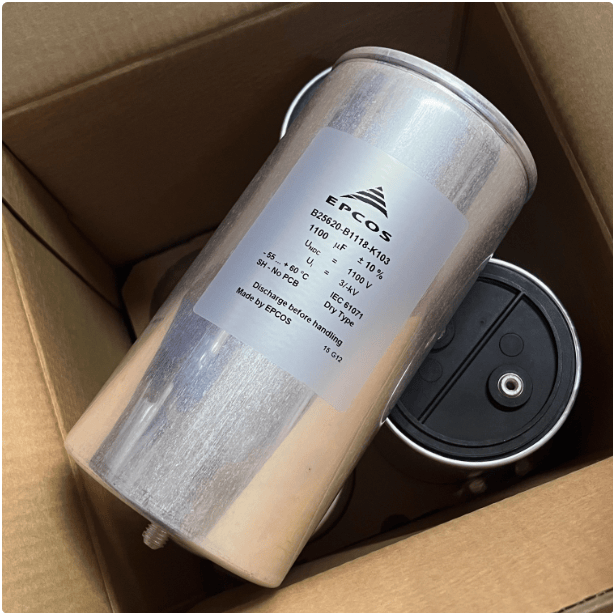

TDK EPCOS B25620B1118K103 B25620 Series MKP DC Capacitor, 1100µF, 1100VDC, Female M6 Terminal
Regular price
$80.00 USD
Regular price
Sale price
$80.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The TDK EPCOS B25620B1118K103 is a high-performance DC-link film capacitor from the B25620 MKP DC series, designed for demanding power electronic applications. It features a metallized polypropylene film dielectric, hard polyurethane resin filling, and a robust aluminum case with an M12 bottom stud for mounting. This capacitor offers high current capability, low ESR, and a long service life of 100,000 hours at 75°C hot-spot temperature, making it ideal for use in inverters, motor drives, and renewable energy systems.
- Metallized polypropylene film (MKP) dielectric for low losses and high reliability.
- High DC voltage rating for robust DC-link and energy storage applications.
- Low Equivalent Series Resistance (ESR) for high ripple current handling.
- Long service life: 100,000 hours at VRDC and Ths = 75°C.
- Non-PCB, hard polyurethane (dry type) resin filling.

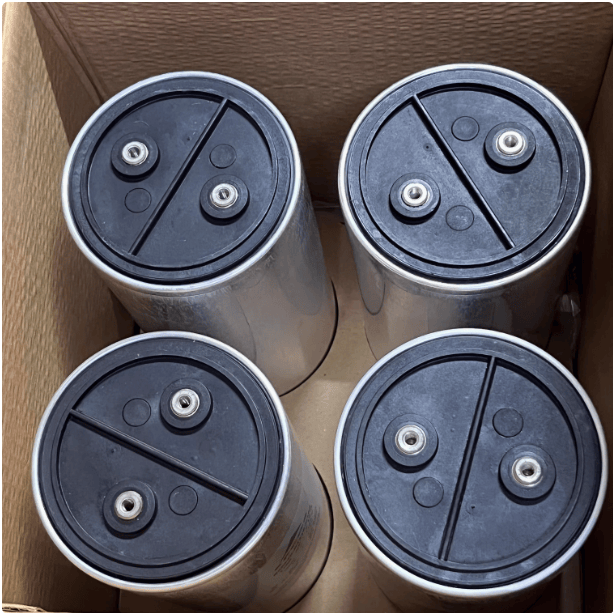

- Female M6 screw terminals for secure connections.
| Product ID | B25620B1118K103 |
| Capacitance | 1100 µF |
| Rated DC Voltage (VRDC) | 1100 V |
| Series | B25620 (MKP DC) |
| Terminal Type | Female M6 Screw Terminal |
| Maximum Current (Imax) | 100 ARMS |
| Maximum Peak Current (Î) | 9300 A |
| Surge Current (Is) | 27.7 kA |
| ESR @ 1 kHz (Typ.) | 1.3 mΩ |
| Self-Inductance (Lself) | ≤ 100 nH |
| Case Dimensions (D x H) | 116 x 223 mm (HC 229 mm) |
| Weight (Typ.) | 2.56 kg |
| Operating Temperature Range | -55°C to +75°C (Top,max), Ths ≤ +75°C |
| Capacitance Tolerance | ±10% (K) |
| Dissipation Factor (tan δ0) | 2 x 10-4 |
| Mounting / Fixing | M12 Threaded Stud (bottom), Max torque 10 Nm |
