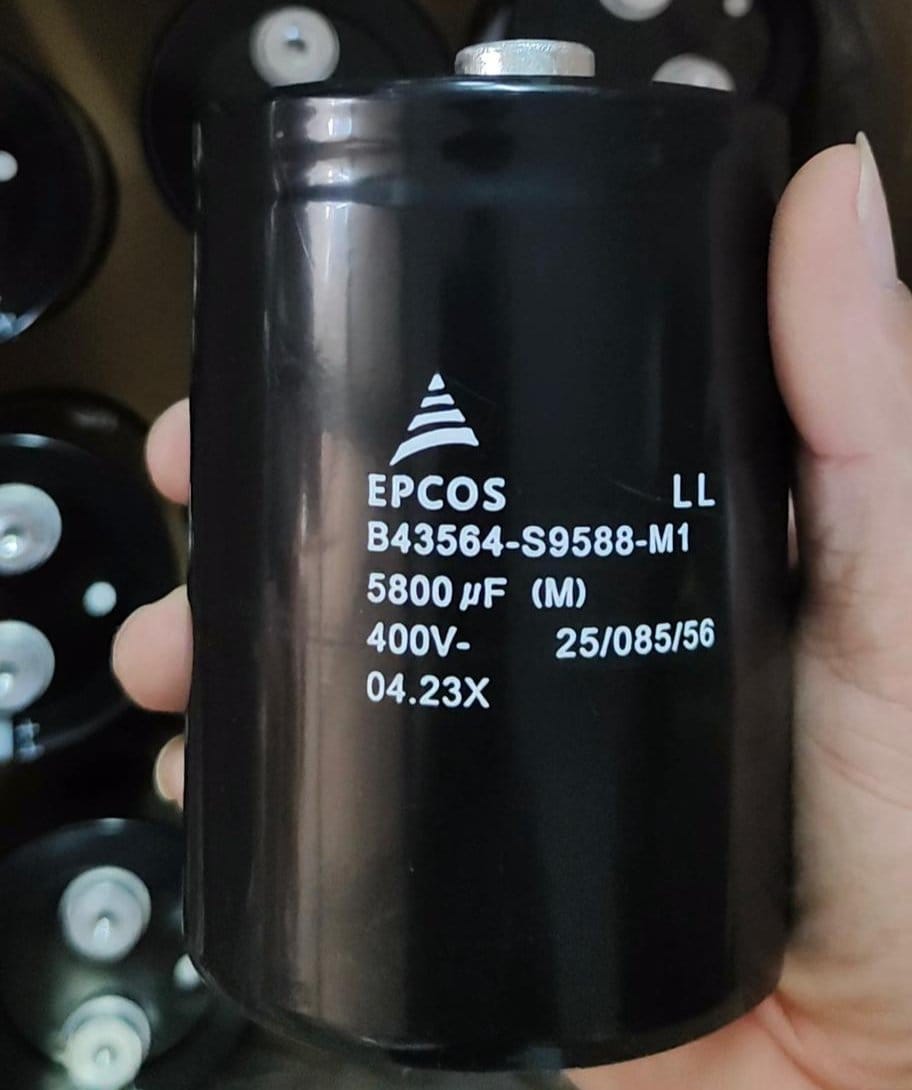

TDK EPCOS B43564-S9588-M1 Aluminum Electrolytic Capacitor, 5800uF 400V, Screw Terminal

The TDK EPCOS B43564-S9588-M1 is an industrial-grade aluminum electrolytic capacitor engineered for high-performance power electronics. This component belongs to the B43564 series, characterized by its high ripple current capability and exceptionally long service life. Designed with heavy-duty screw terminals, it provides a secure and stable electrical connection, making it ideal for large-scale power conversion and industrial inverter applications.

Technical Specifications

• Manufacturer: TDK / EPCOS
• Part Number: B43564-S9588-M1
• Capacitance: 5800 µF
• Voltage Rating: 400 VDC
• Tolerance: ±20%
• Series: B43564 (High reliability, Screw Terminal)
• Operating Temperature: -25 °C to +85 °C
• Service Life: Up to 15,000 Hours @ 85 °C (depending on operational conditions)

Physical Attributes & Construction

• Enclosure: Aluminum case with insulating sleeve
• Termination: Screw terminals (M5 or M6 standard for the series)
• Mounting Style: Chassis mount via terminal screws or optional ring clips
• Durability: Enhanced resistance to mechanical shock and vibration

Key Features & Applications

• Power Efficiency: Low ESR design significantly reduces internal heat generation during high-load operations.
• Industrial Standard: Extensively used in frequency converters, Uninterruptible Power Supplies (UPS), and professional medical imaging equipment.
• Operational Stability: Designed to handle high-surge currents in DC-link circuits.
• Professional Grade: Meets stringent industrial requirements for long-term reliability in power-critical infrastructure.
