Emerson ALCO PSC-B5U / 0714991 PSC Series Fixed Pressure Switch, 18.2 Bar Cut-Out, SPDT Contact
Regular price
$400.00 USD
Regular price
Sale price
$400.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

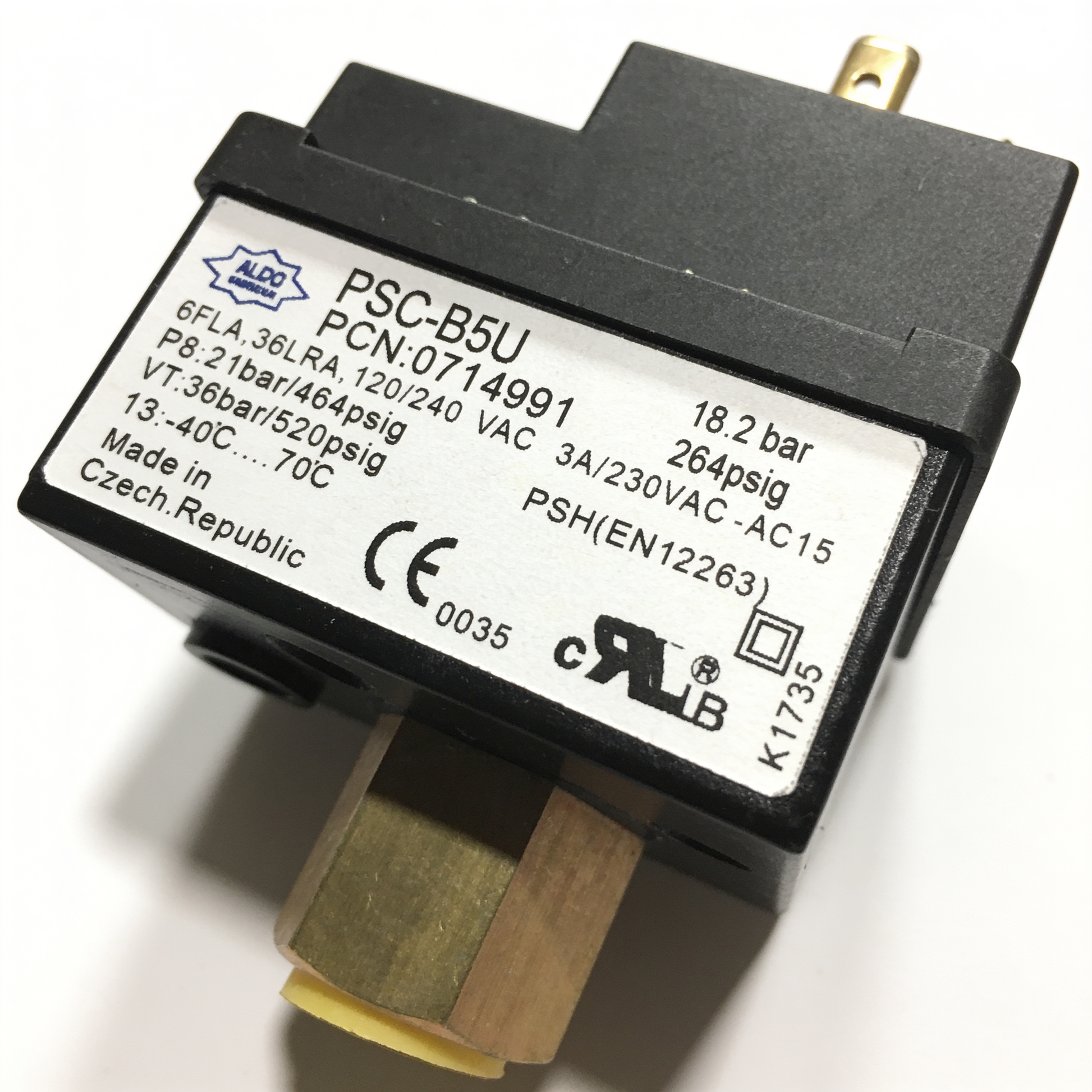

The Emerson ALCO PSC-B5U (PCN: 0714991) is a high-performance fixed-setting pressure switch designed for critical safety monitoring in commercial refrigeration and HVAC systems. Part of the PSC series, this compact controller provides reliable high-pressure cut-out protection with a robust SPDT microswitch, ensuring system integrity under demanding industrial conditions.
| Product ID (MPN) | PSC-B5U |
| Order Code | 0714991 |
| Fixed Setting (Cut-out) | 18.2 bar (264 psig) |
| Contact Strategy | 1x SPDT (Single Pole Double Throw) |
| Electrical Rating | 3A / 230V AC; 6FLA / 36LRA at 120/240V AC |
| Max Operating Pressure (PS) | 31 bar (450 psig) |
| Pressure Test (PT) | 36 bar (522 psig) |
| Ambient Temperature (TS) | -40°C to +70°C |
| Pressure Connection | 7/16"-20 UNF Internal (Brass Connection) |
| Safety Standard | EN 12263, CE 0035, EAC, UL Rec. |
