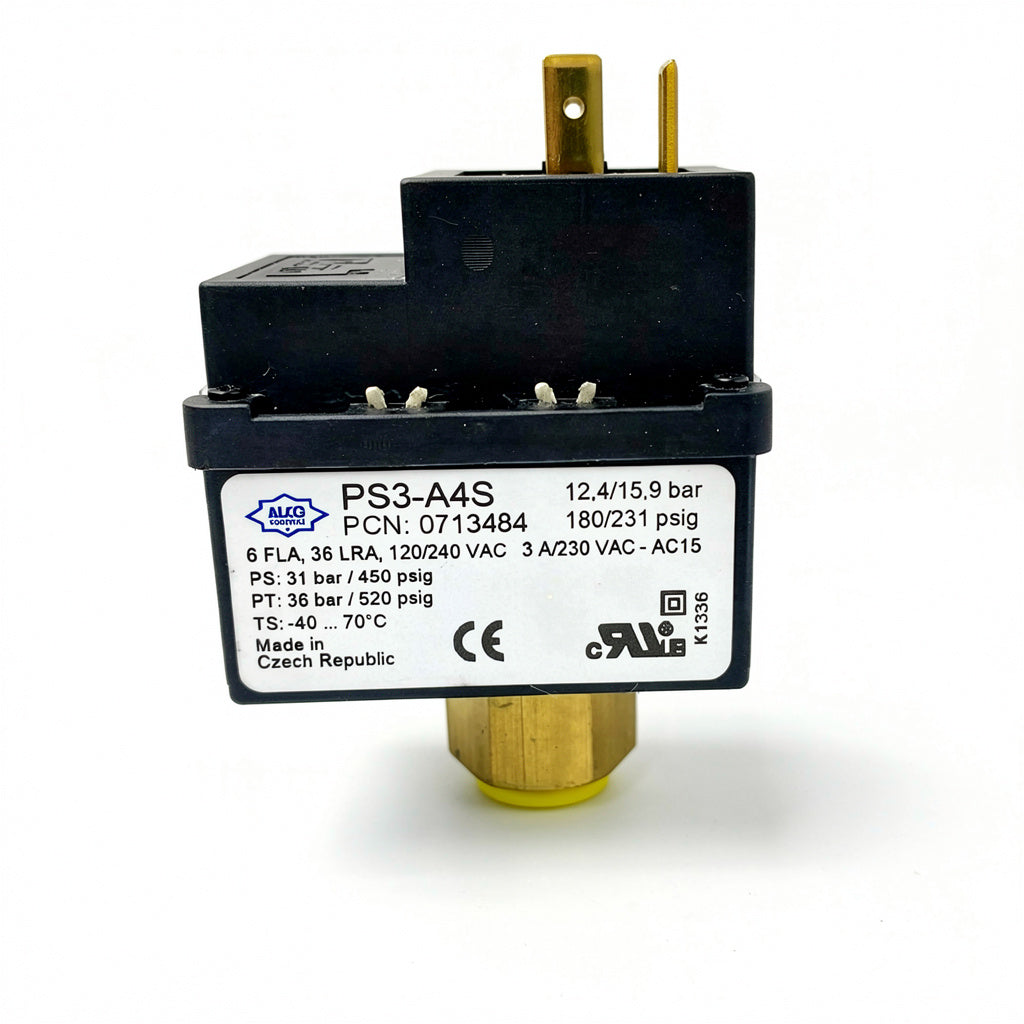

Emerson ALCO PS3-A4S / 0713484 PS3 Series Dual Pressure Switch, 12.4 / 15.9 Bar, SPDT Contact
Regular price
$400.00 USD
Regular price
Sale price
$400.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Emerson ALCO PS3-A4S (PCN: 0713484) is a precision-engineered automatic reset pressure switch designed for high-pressure control and safety monitoring in industrial refrigeration and HVAC systems. Featuring dual switching points at 12.4 and 15.9 bar, this robust SPDT controller provides reliable fan cycling or safety cut-out functionality, ensuring optimal system protection and operational efficiency in professional cooling applications.
| Product ID (MPN) | PS3-A4S |
| Order Code | 0713484 |
| Switching Points | 12.4 / 15.9 bar (180 / 230 psig) |
| Contact Configuration | 1x SPDT (Single Pole Double Throw) |
| Electrical Rating | 3A / 230V AC - AC15; 6FLA / 36LRA @ 120/240V AC |
| Max Operating Pressure (PS) | 31 bar (450 psig) |
| Pressure Test (PT) | 36 bar (522 psig) |
| Operating Temperature (TS) | -40°C to +70°C |
| Pressure Connection | 7/16"-20 UNF Internal Thread |
| Conformity | CE 0035, EAC, UL Recognized |
