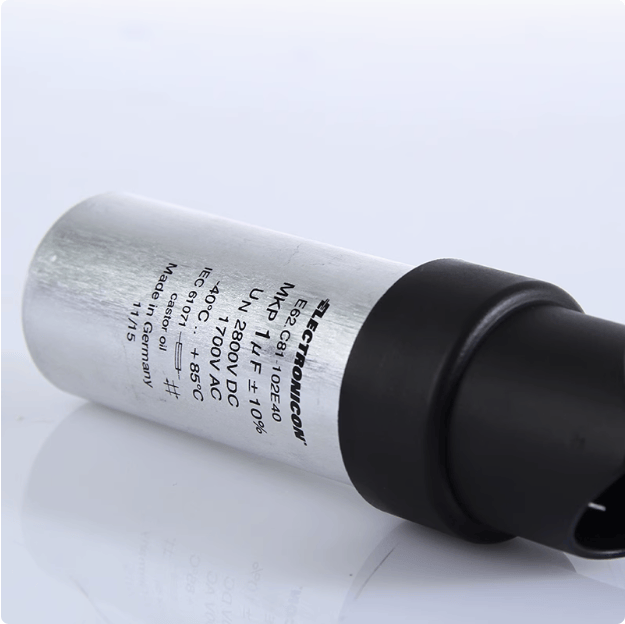

• ELECTRONICON ELECTRONICON E62C81-102E40 MKP 1uF 2800V Capacitor
1 1

ELECTRONICON E62.G85-603G10 E62 HC Heavy Duty AC Capacitor, 60µF, 420V AC

$100.00 USD
$100.00 USD
Sale Sold out
Shipping calculated at checkout.
Pack Size

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express
TECHNICAL DATASHEET PDF

Overview: The ELECTRONICON E62.G85-603G10 is a heavy-duty AC capacitor from the E62 HC (High Current) series, designed for universal use in demanding power electronics applications. It features a hermetically sealed aluminum can filled with environmentally friendly plant oil and is optimized for high RMS currents, non-sinusoidal voltages, and pulsed currents. The integrated break-action mechanism (BAM) ensures safe, controlled disconnection in case of overload.

  • Heavy-duty AC capacitor for universal applications (AC/DC).
  • Optimized for high RMS and surge currents (Imax: 10A, Î: 0.5kA).
  • Hermetically sealed aluminum can with plant oil filling.
  • Integrated overpressure protection (Break-Action Mechanism - BAM).
  • Low loss factor (tanδ0: 2 x 10-4).
  • Complies with IEC 61071, UL810, CSA 22.2 No.190 standards.
Product ID E62.G85-603G10
Capacitance (CN) 60 µF
Rated Voltage (UN) 420V AC
RMS Voltage (Urms) 300V
Surge Voltage (US) 1050V
DC Test Voltage (UTT) 1050V DC
AC Test Voltage (UTC) 3000V AC
Equivalent Series Resistance (DCRS) 3.3 mΩ
Thermal Resistance (Rth) 10.5 K/W
Max. RMS Current (Imax) 10 A
Surge Current (Î) 0.5 kA
Short-Circuit Current (IS) 3.2 kA
Equivalent Series Inductance (Le) 20 nH
Dimensions (D1 × L1) 50 × 85 mm
Design G1
Weight 0.18 kg
Operating Temperature (Θmin ... Θmax) -40 ... +85 °C
Hotspot Temperature (ΘHOTSPOT) ≤ 85 °C
Tolerance ±10% (optional ±5%)
Dissipation Factor (tanδ0) 2 × 10-4
Mounting Position Terminals pointing upwards (vertical)
Internal Protection Break-Action Mechanism (BAM)
Terminal Type Brass stud M6 on integrated plastic bushing
Terminal Max. Current 40 A
