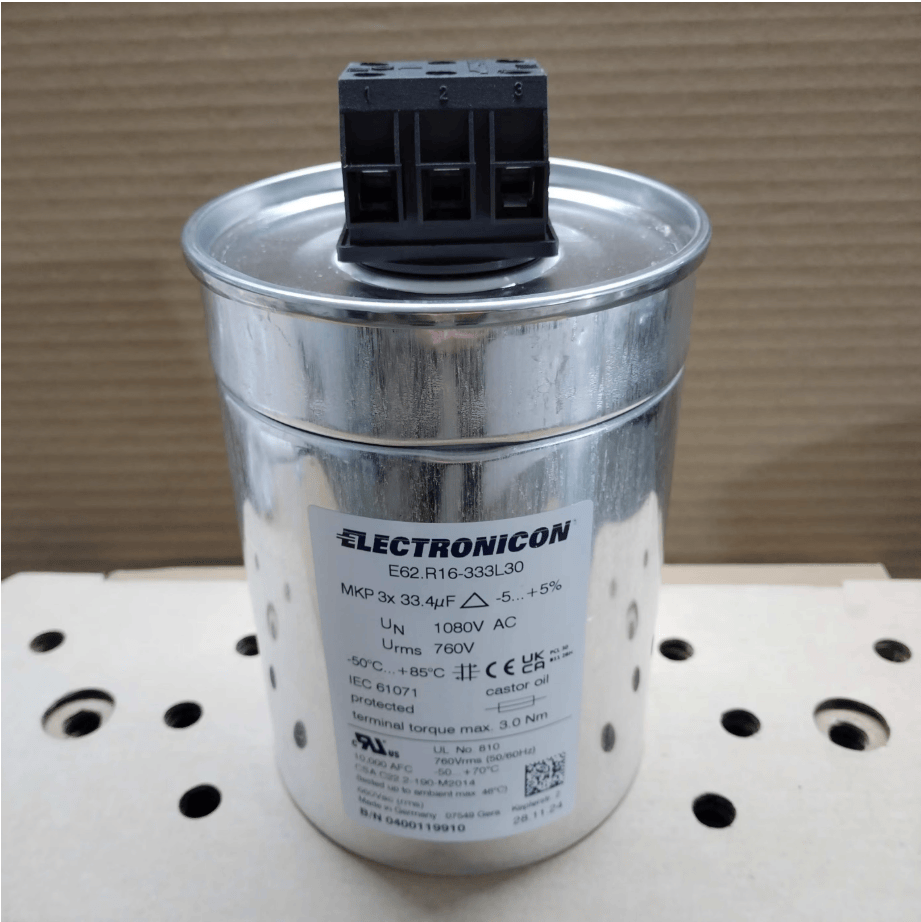

ELECTRONICON E62.R16-333L303 E62-3ph Heavy Duty Three Phase AC Filter Capacitor, 3 x 33.4 µF, 1080V AC
Regular price
$250.00 USD
Regular price
Sale price
$250.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The ELECTRONICON E62-3ph series represents high-end, heavy-duty three-phase AC filter capacitors engineered for demanding applications such as wind power, UPS systems, and harmonic filtering in distorted mains. These capacitors feature a low-inductance design with wavecut technology for high RMS and surge current strength, an internal delta connection, and an environmentally friendly plant oil filling for optimal heat dissipation. They are equipped with IP20-rated, finger-proof CAPAGRIP™ screw terminals and include an integrated overpressure protection (BAM™) for safe, controlled disconnection.
Key Features
- Heavy-duty construction for extreme operating conditions.
- Very low series resistance and small self-inductance.
- Internal delta connection of three capacitor elements.
- Plant oil filling for optimized cooling and insulation.
- IP20-rated CAPAGRIP™ screw terminals.
- Integrated Break-Action Mechanism (BAM™) for overload protection.
- Long-term stable capacitance tolerance of ±5%.
- Complies with standards IEC 61071, UL810, and CSA 22.2 No.190.
Technical Specifications
| Product ID | E62.R16-333L303 |
| Series | E62-3ph |
| Capacitance (CN) | 3 × 33.4 µF |
| Rated Voltage (UN) | 1080V AC |
| RMS Voltage (Urms) | 760V |
| Surge Voltage (US) | 2320V |
| Series Resistance (RS) | 3 × 0.4 mΩ |
| Self Inductance (Le) | 110 nH |
| Thermal Resistance (Rth) | 3 × 56 K/W |
| Max. Current (Imax) | 3.6 A |
| Surge Current (Î) | 10.8 kA |
| Short Circuit Current (IS) | - |
| Dimensions (D₁ × L₁) | 116 × 164 mm |
| Design | L3 |
| Weight | 1.9 kg |
| Operating Temperature | -50 ... +85°C |
| Capacitance Tolerance | ±5% |
| Dissipation Factor (tanδ) | 2 × 10-4 |
| Terminal Type | CAPAGRIP™ Screw Terminal (IP20) |
| Internal Protection | Break-Action Mechanism (BAM™) |
| Mounting Position | Terminals pointing upwards (vertical) |
