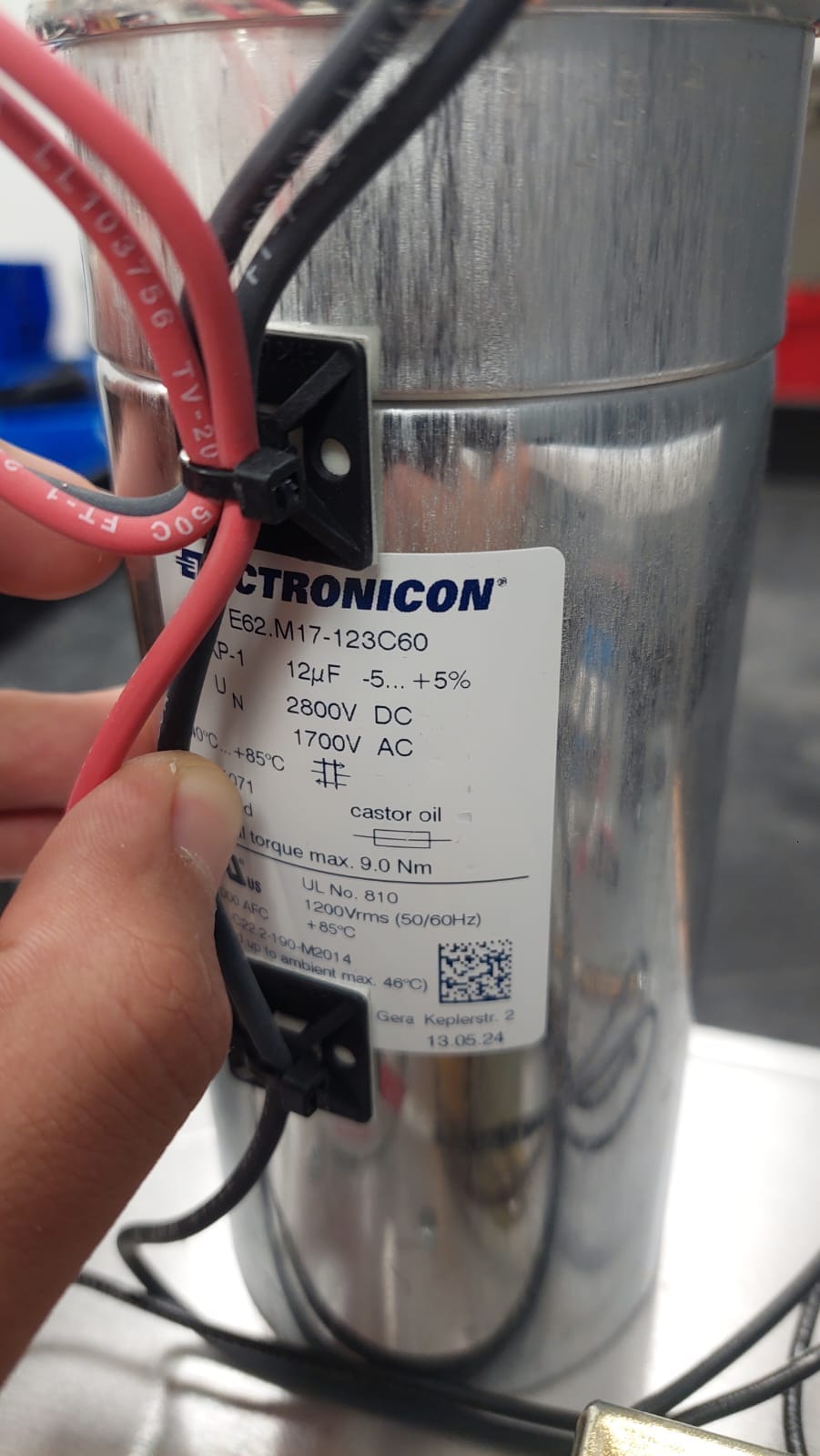

• ELECTRONICON ELECTRONICON E62.M17-123C60 12UF 1200V Capacitor
1 1

ELECTRONICON E62.M17-123C60 E62 HC High Current AC Capacitor, 12 µF, 2800V AC

$300.00 USD
$300.00 USD
Sale Sold out
Shipping calculated at checkout.
Pack Size

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express

Overview
The ELECTRONICON E62.M17-123C60 is a heavy-duty, high-current AC film capacitor from the E62 HC series. Designed for universal AC applications, it is optimized for high RMS and surge currents, making it suitable for damping, commutation, and surge discharge duties. It features a hermetically sealed aluminum can with plant oil filling and an integrated break-action mechanism (BAM) for safety.

Key Features

  • High-current AC capacitor for demanding power electronics applications.
  • Hermetically sealed aluminum can with environmentally friendly plant oil filling.
  • Integrated break-action mechanism (BAM) for safe overload disconnection.
  • Low-inductance design with brass stud (M10) terminals (C6 design).
  • Self-healing MKP dielectric for high reliability and overvoltage protection.
  • Ideal for non-sinusoidal voltages and pulsed currents (e.g., damping, commutation).
  • Compliant with IEC 61071, UL810, and CSA 22.2 No.190 standards.
Product ID / Ordering Code E62.M17-123C60
Capacitance (CN) 12 µF
Rated Voltage (UN) 2800V AC
Rated RMS Voltage (Urms) 1700V
Surge Voltage (US) 4200V
DC Test Voltage (UTC) 5000V AC
Equivalent Series Resistance (DCRS) 1.4 mΩ
Thermal Resistance (Rth) 3.4 K/W
Max. RMS Current (Imax) 80 A
Surge Current (Î) 1.9 kA
Short-Circuit Current (IS) 5.7 kA
Equivalent Series Inductance (Le) 75 nH
Dimensions (D1 × L1) 75 × 176 mm
Design / Terminal Type C6 (Brass stud M10)
Weight 0.8 kg
Capacitance Tolerance ±10% (optional ±5%)
Dissipation Factor (tanδ0) 2 × 10-4
Operating Temperature (Θmin ... Θmax) -40 ... +85°C
Hotspot Temperature (ΘHOTSPOT) ≤ 85°C
Storage Temperature -40 ... +85°C
Statistical Lifetime > 200,000 h
Failure Rate (FIT) 100 FIT (Ref: 100,000h, ΘHOTSPOT ≤70°C)
Mounting Position Terminals pointing upwards (vertical)
Internal Protection Break-action mechanism (BAM)
Standards IEC 61071, UL810, CSA 22.2 No.190 (optional IEC 61881)
