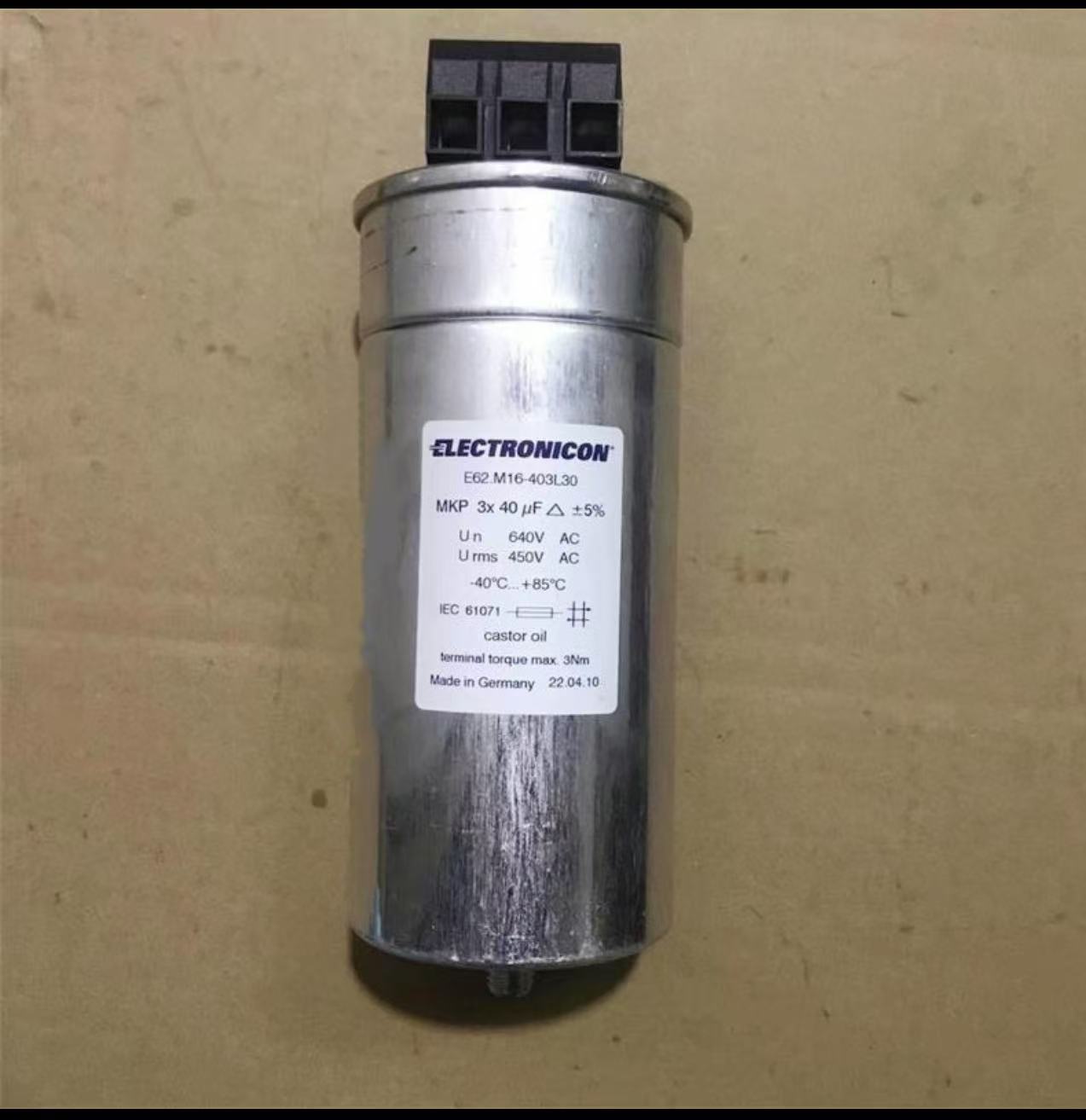

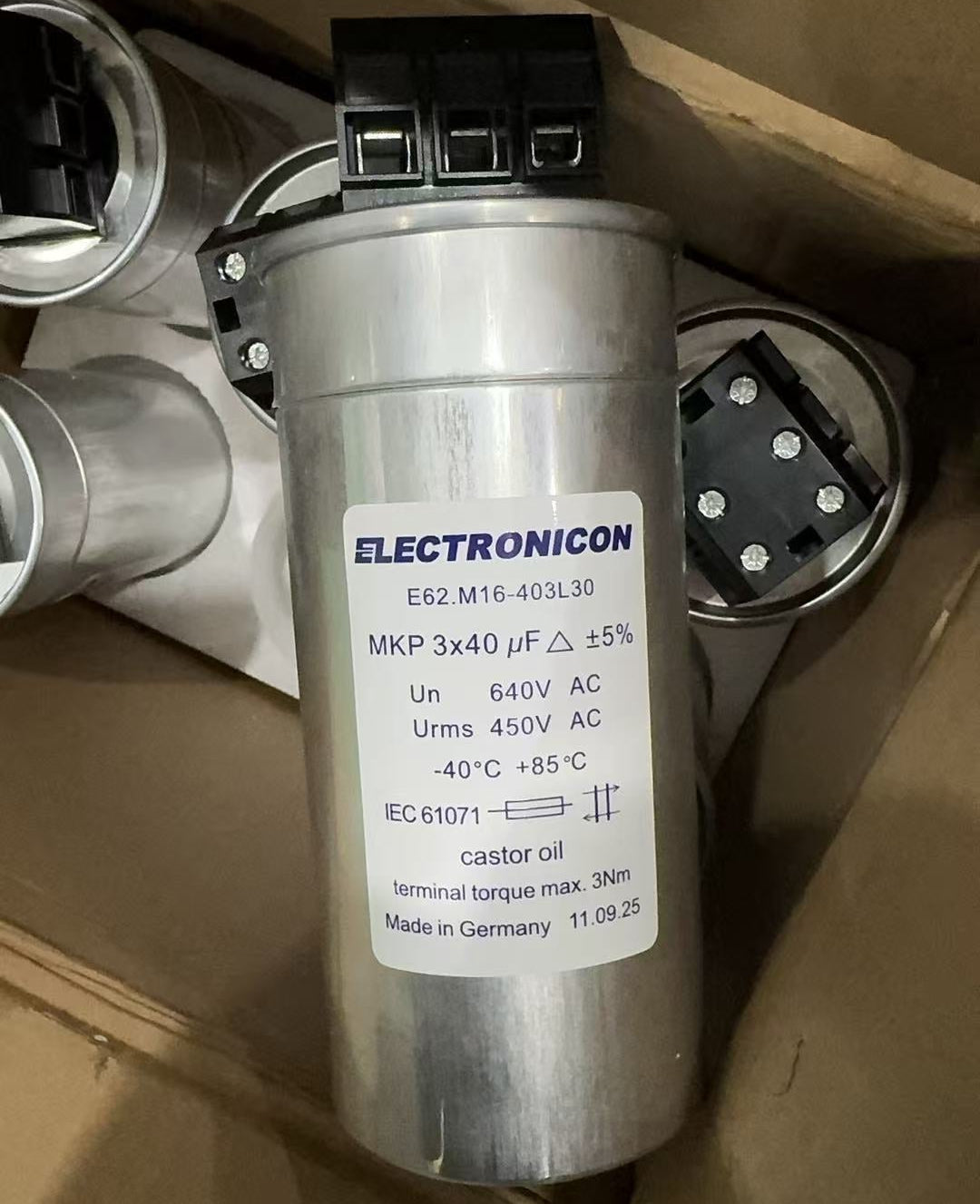

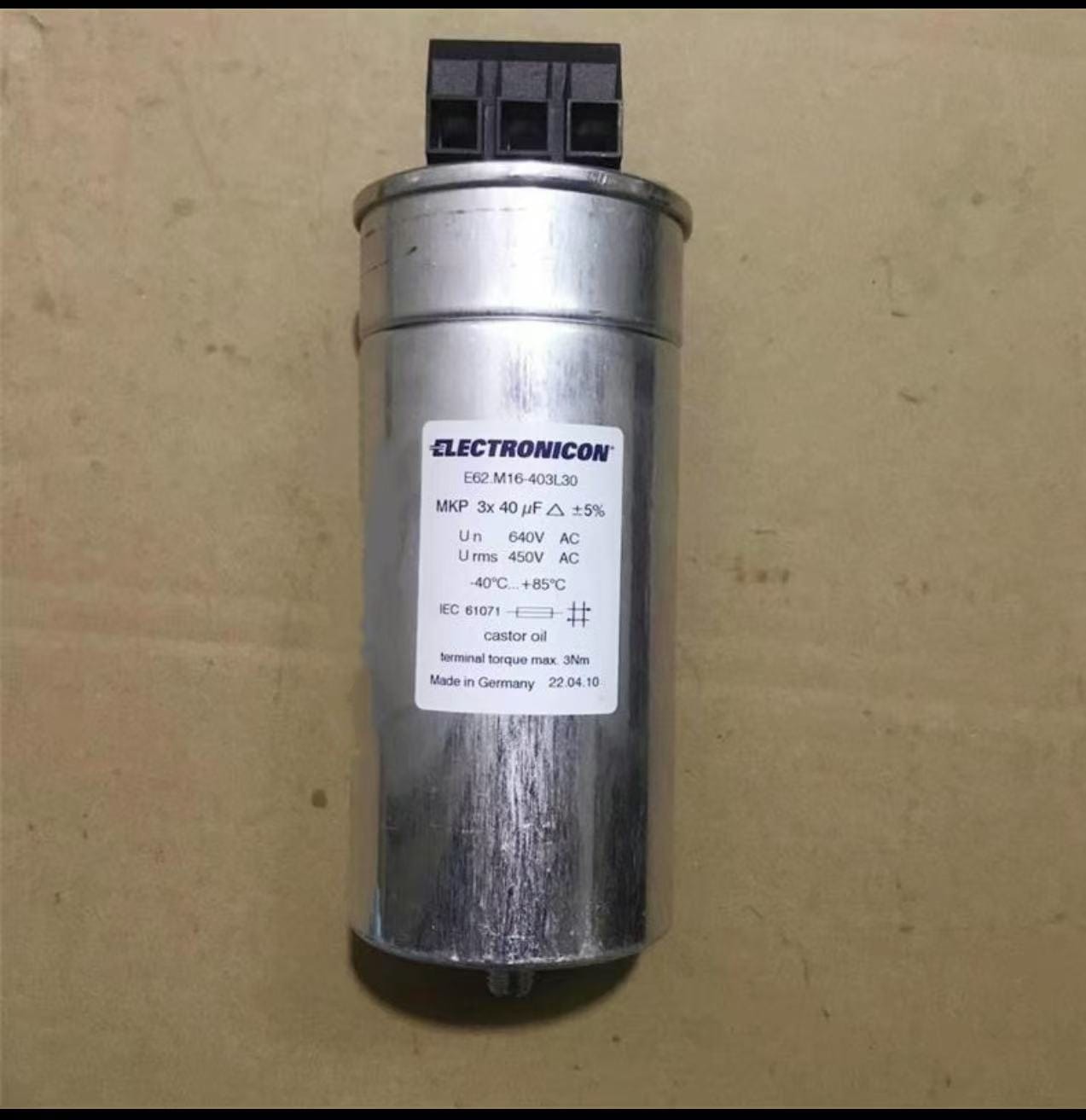

ELECTRONICON E62.M16-403L30 3-Phase MKP Capacitor, 3x 40µF 640V AC
Regular price
$80.00 USD
Regular price
Sale price
$80.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview: The ELECTRONICON E62.M16-403L30 is a heavy-duty, three-phase AC filter capacitor designed for demanding industrial power electronics applications. Part of the E62-3ph series, it features three internally delta-connected 40µF elements rated for 640V AC operation. Constructed with a self-healing MKP dielectric and filled with environmentally friendly plant oil, it offers high RMS and surge current strength, low series resistance, and integrated overpressure protection (BAM™) for safe, reliable operation in harmonic filtering, wind power, and UPS systems.
Key Features:
- Three-phase AC filter capacitor with 3 x 40µF capacitance (delta-connected).
- Rated for 640V AC operation with high surge voltage withstand.
- Self-healing MKP dielectric with plant oil filling for optimized cooling.
- Low series resistance and inductance for high-frequency filter performance.
- Integrated overpressure protection (BAM™) for safe failure mode.
- Finger-proof CAPAGRIP™ screw terminals (IP20).
| Product ID / MPN | E62.M16-403L30 |
| Brand | ELECTRONICON |
| Series / Type | E62-3ph (Heavy Duty Three Phase AC Filter Capacitor) |
| Capacitance (per phase) | 3 × 40 µF |
| Rated Voltage (UN) | 640 V AC |
| Rated RMS Voltage (Urms) | 450 V |
| Surge Voltage (US) | 1380 V |
| Series Resistance (RS) | 3 × 1.2 mΩ |
| Self Inductance (Le) | 130 nH |
| Thermal Resistance (Rth) | 4.7 K/W |
| Max. Continuous Current (Imax) | 3 × 56 A |
| Surge Current (Î) | 1.1 kA |
| Short Circuit Current (IS) | 3.3 kA |
| Dimensions (D₁ × L₁) | 75 × 164 mm |
| Design / Terminal | L3 (CAPAGRIP™ screw terminal, 2 × 25 mm², M5, TORX T20) |
| Terminal Max Current | 56 A |
| Weight | 0.8 kg |
| Capacitance Tolerance | ±5% |
| Dissipation Factor (tanδ0) | 2 × 10-4 |
| Operating Temperature | -50 ... +85 °C |
| Hotspot Temperature (max) | ≤ 85 °C |
| Case / Filling | Aluminum can / Plant oil (non-PCB) |
| Internal Protection | Break-action mechanism (BAM™) |
| Mounting Position | Terminals pointing upwards (vertical) |
| IP Rating (Terminals) | IP20 |
| Standards | IEC 61071, UL810, CSA 22.2 No.190 |
