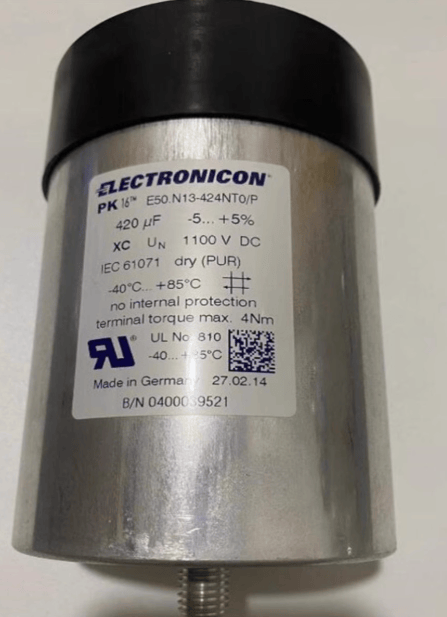

ELECTRONICON E50.N13-424T0 E50 Series DC Capacitor, 420µF, 1100V DC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The ELECTRONICON E50.N13-424T0 is a high-density DC film capacitor from the E50 series, designed for demanding power electronics applications such as DC link, smoothing, and supporting circuits. It features a hermetically sealed aluminum can with an environmentally friendly filling and is optimized for high capacitance and voltage ratings. The integrated safety mechanism ensures reliable operation and controlled disconnection under overload conditions.
Key Features
- High-density DC capacitor for DC link and smoothing applications.
- Hermetically sealed aluminum can with environmentally friendly filling.
- Integrated safety mechanism for overload protection.
- High capacitance and voltage rating for energy storage.
- Self-healing metallized polypropylene (MKP) dielectric.
- Designed for high reliability in power electronic systems.
Specifications
| Product ID / Ordering Code | E50.N13-424T0 |
| Rated Capacitance (CN) | 420 µF |
| Rated DC Voltage (UN) | 1100V DC |
| Operating Temperature Range | -40 ... +85°C |
| Capacitance Tolerance | ±10% (typical) |
| Dissipation Factor (tanδ) | < 2 × 10-4 (typical) |
| Mounting Position | Terminals pointing upwards (vertical) |
| Standards | IEC 61071, UL810, CSA 22.2 No.190 (typical) |
Note: Detailed specifications such as ESR, surge current, and dimensions are not provided in the input. For complete technical data, please consult the official ELECTRONICON datasheet for the E50 series.
