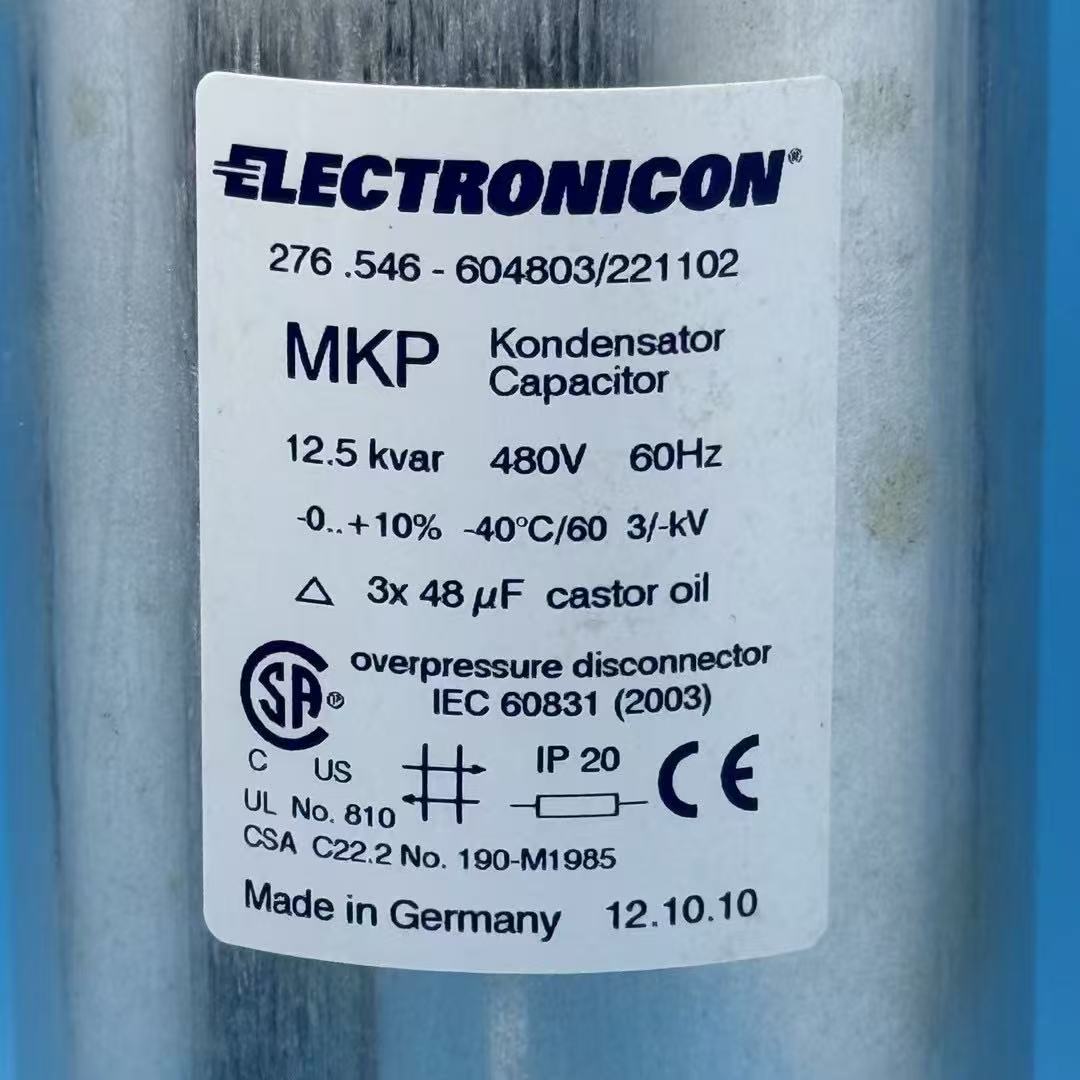

ELECTRONICON 276.556-604803 3x48uf Capacitor (6 Pieces)

Manufacturer: ELECTRONICON

Part Number: 276.546-604803/221102

Product Type: Three-Phase MKP Power Factor Correction Capacitor

Technical Specifications:

• Capacitance: 3 x 48 µF
• Tolerance: -0% to +10%
• Rated Voltage: 480 V
• Frequency: 60 Hz
• Reactive Power: 12.5 kvar
• Dielectric: Metallized Polypropylene (MKP) with Castor Oil Impregnation
• Operating Temperature Range: -40°C to +60°C
• Safety Feature: Overpressure Disconnector
• Protection: Ingress Protection: IP20

Standards & Certifications:

• IEC 60831 (2003)
• UL No. 810
• CSA C22.2 No. 190-M1985
• cRUus Recognized
• CE Compliant
