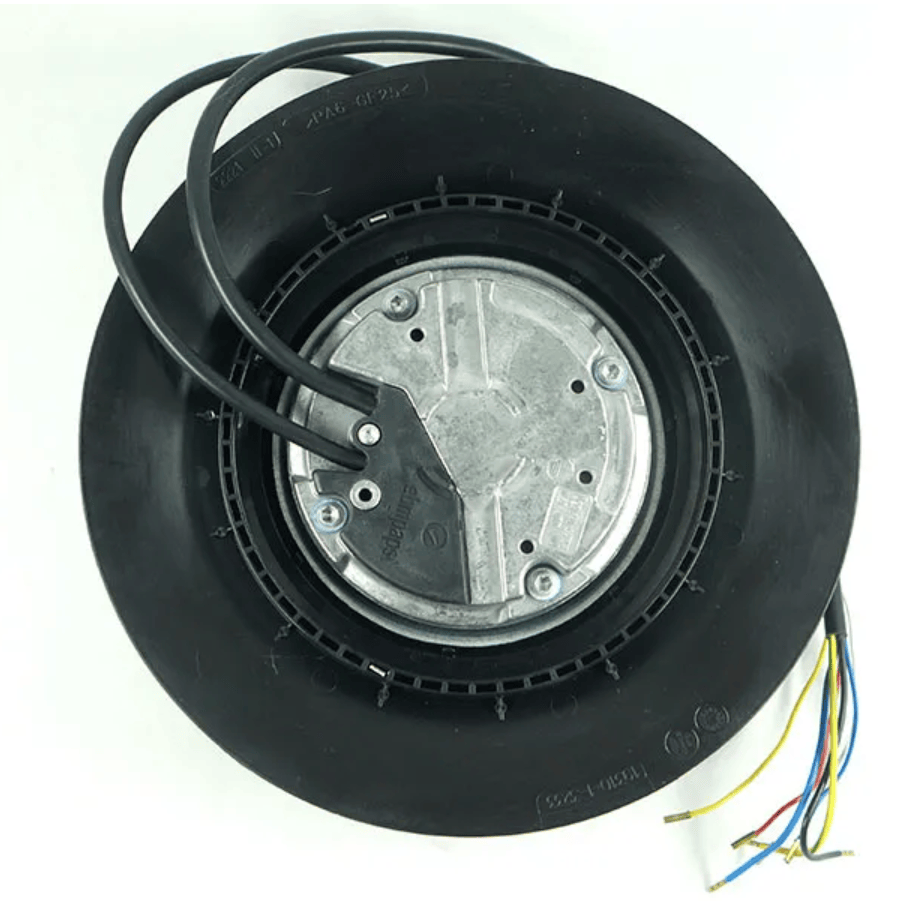

Ebmpapst R3G190-RB01-06 Centrifugal Fan 200~240VAC 44W 0.43A Cabinet Cooling Fan

Technical Specifications:

• Manufacturer: ebm-papst
• Product Number: R3G190-RB01-06
• Fan Type: RadiPac Centrifugal Fan, Backward Curved
• Motor Technology: EC (External Rotor Motor with integrated electronics)
• Nominal Voltage: 230 VAC
• Voltage Range: 200-240 VAC
• Frequency: 50/60 Hz
• Current Consumption: 0.43 A
• Power Consumption: 44 W
• Speed: 2450 RPM
• Airflow (Free Air): 740 m³/h (436 CFM)
• Static Pressure (Max): 230 Pa (0.92 in H2O)
• Sound Power Level: 6.1 B(A) (Equivalent to approximately 51 dB(A) Sound Pressure Level at 1m - environment dependent)
• Sound Pressure Level (at 1m): 51 dB(A) (Value from datasheet - may vary with operating conditions)
• Impeller Diameter: 190 mm
• Dimensions (Diameter x Height): 280 mm x 202 mm (Approximate overall dimensions - refer to datasheet for detailed dimensions)
• Weight: 1.9 kg
• Impeller Material: PA 6 GF25 (Polyamide 6 with 25% Glass Fiber)
• Housing Material: Aluminum
• Motor Size: 74
• Protection Class: IP54
• Insulation Class: F
• Bearing Type: Ball Bearings
• Life Expectancy L10 (40°C): 40,000 hours
• Operating Temperature Range: -25°C to +60°C
• Storage Temperature Range: -40°C to +70°C
• Electrical Connection: Terminal box
• Control Input: 0-10V, PWM, MODBUS RTU (Refer to datasheet for wiring details)
• Approvals: CE, UL, EAC
