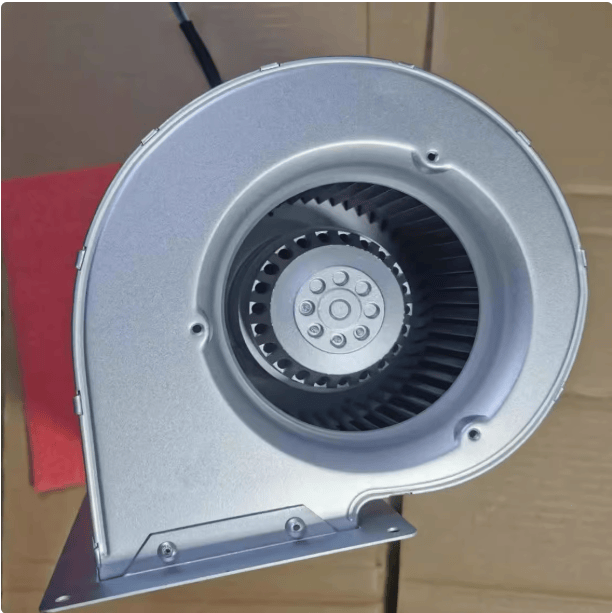

EBM D2E146-AP47-C3 Cooling Fan

Technical Specifications:

• Manufacturer: ebm-papst
• Product Number: D2E146-AP47-C3 (according to PDF, likely a variant of D2E146-AP47 series)
• Fan Type: Double Inlet Centrifugal Fan, Backward Curved
• Motor Type: AC External Rotor Motor, Capacitor Motor
• Nominal Voltage: 230 VAC
• Voltage Range: 200-240 VAC
• Frequency: 50/60 Hz
• Current Consumption: 0.25 A
• Power Consumption: 55 W
• Speed: 2650 RPM
• Airflow (Free Air): 390 m³/h (230 CFM)
• Static Pressure (Max): 110 Pa (0.44 in H2O)
• Sound Power Level: 6.6 B(A) (Equivalent to approximately 56 dB(A) Sound Pressure Level at 1m - conversion depends on environment)
• Impeller Diameter: 146 mm
• Dimensions (W x H): 225 mm x 225 mm (Flange dimension)
• Depth: 77 mm
• Weight: 0.98 kg
• Impeller Material: PA 6 GF30 (Polyamide 6 with 30% Glass Fiber)
• Housing Material: Sheet Steel, galvanized
• Motor Size: 68
• Insulation Class: B
• Protection Class: IP20
• Bearing Type: Ball Bearings
• Life Expectancy L10 (40°C): 40,000 hours
• Operating Temperature Range: -25°C to +60°C
• Storage Temperature Range: -40°C to +70°C
• Electrical Connection: Terminal box
• Approvals: CE, UL, EAC
