Eaton Moeller DILM150(RAC240) — DILM Series 3‑Pole Contactor, 75 kW @ 380–400 V, RAC240 Coil 190–240 VAC 50/60 Hz, Screw Terminals, IEC/UL Certified

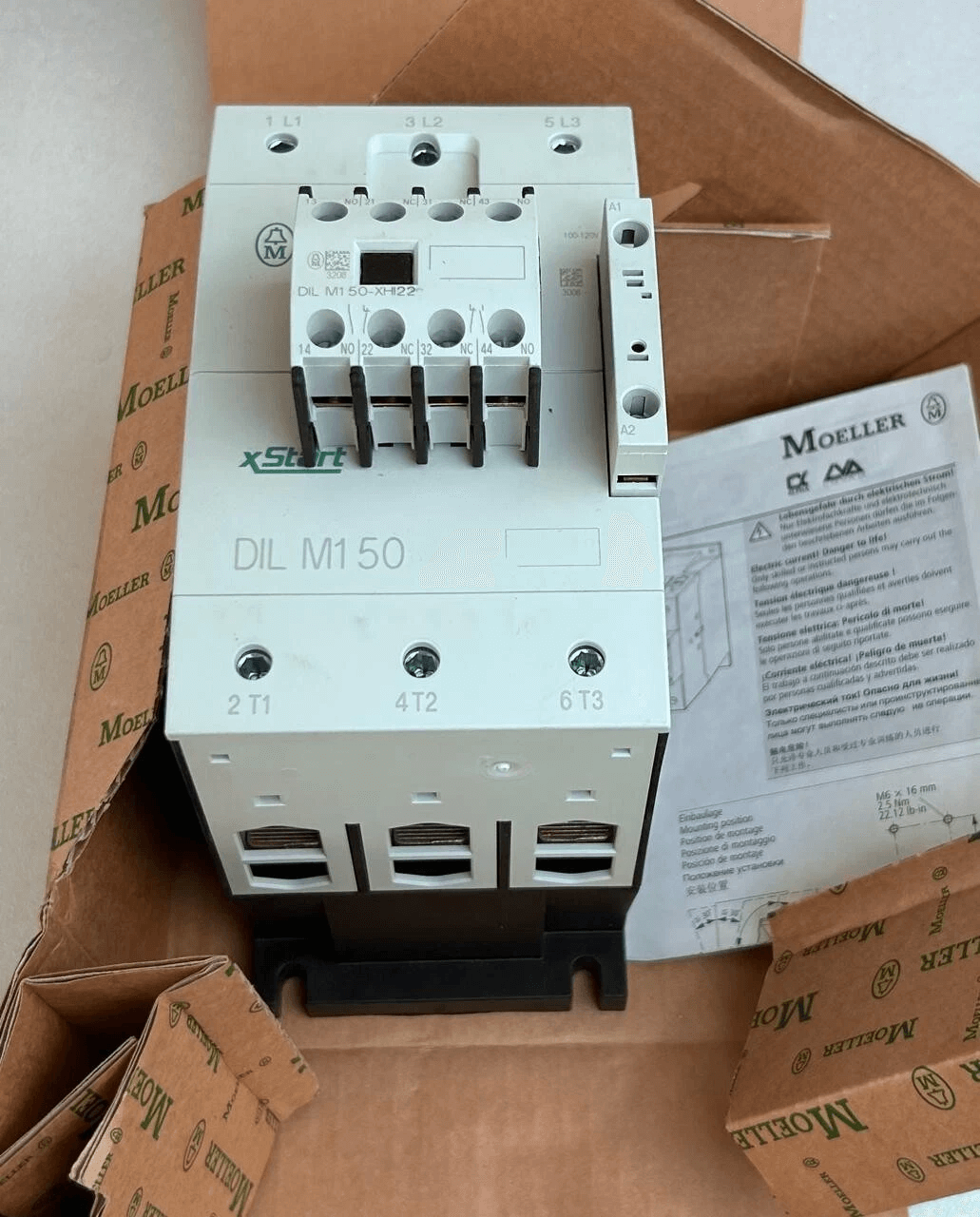

The Eaton Moeller DILM150(RAC240) is a robust three‑pole power contactor from the DILM series, designed for heavy‑duty motor control and switching applications. With a rated power handling of 75 kW at 380–400 V and a RAC240 control coil (190–240 VAC, 50/60 Hz), this contactor provides reliable AC operation, screw‑terminal connections and broad international certification for industrial installations.

Key specifications

• Manufacturer: Eaton (Moeller)
• Catalog number / Model code: 239588 / DILM150(RAC240)
• Product type: Contactor — DILM series
• Poles: 3‑pole (main contacts)
• Rated motor power: 75 kW at 380–400 V (application reference per EN/IEC)
• Coil / control voltage: RAC240 — 190–240 V AC, 50/60 Hz
• Connection type: Screw terminals (for power and control wiring)
• Dimensions (approx): 160 mm (depth) × 170 mm (height) × 90 mm (width)
• Weight: 2.25 kg
• Standards & certifications: IEC/EN 60947‑4‑1, IEC/EN 60947, UL 60947‑4‑1, UL listed, VDE 0660, CE, CSA (File No. 012528; Class Nos. 2411‑03, 3211‑04), UL Category Control No.: NLDX; UL File No.: E29096; CSA‑C22.2 No. 60947‑4‑1‑14
• Contact specification: Contacts according to EN 50012 (see datasheet for detailed contact configurations and auxiliary contact options)

Features & benefits

• High power switching: rated to handle motors up to 75 kW at 380–400 V, suitable for large motor control and heavy industrial loads.
• RAC240 coil (190–240 VAC): compatible with standard control supplies at 50/60 Hz for global installations.
• Screw terminals provide secure, field‑serviceable connections for power and control conductors.
• Compact footprint with international approvals simplifies integration into control panels and switchgear.
• Broad certification set (IEC, UL, CSA, VDE, CE) supports use in varied regulatory environments.

Applications

• Motor starters and motor control centers for large AC motors.
• Industrial machinery, pumps, compressors and large HVAC systems.
• Switchgear and control panels where robust, certified contactors are required.

Installation & safety notes

• Verify appropriate overload protection, coordination and starter configuration per motor characteristics and local code.
• Use Eaton product literature for auxiliary contact options, correct mounting orientation, torque values and terminal wiring instructions.
• Ensure control supply matches RAC240 coil rating (190–240 VAC) and observe rated operating frequency (50/60 Hz).
• Follow all applicable standards and local installation regulations.

Documentation & support

• For detailed electrical data, auxiliary contact options, wiring diagrams and installation guidance, refer to Eaton Moeller DILM series datasheets and technical documentation or contact Eaton technical support.
